16kW 20kVA Diesel Generator Set, Quanchai QCN490D, Soundproof

Name: 16kW 20kVA Diesel Generator Set, Quanchai QCN490D, Soundproof
SKU: CGS-20250314-SGS-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

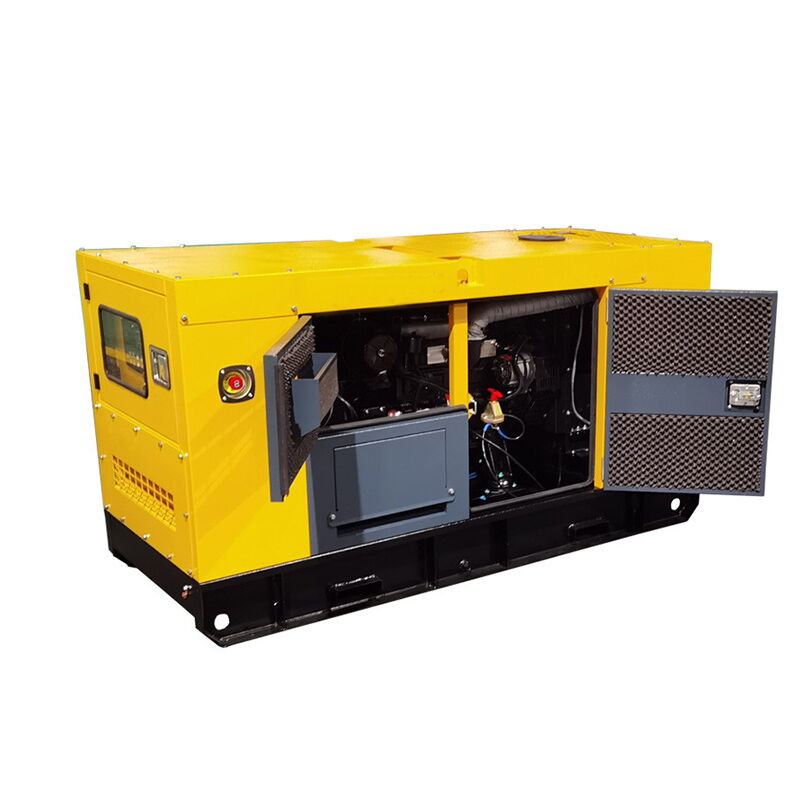

The Quanchai 16kW diesel generator set is a high-performance power solution designed for reliability and efficiency. It features a soundproof enclosure to minimize noise, making it suitable for various environments. The generator is powered by a QCN490D engine, operating at 50 Hz and delivering 400/230 V with a current of 28.9 A. It is water-cooled to ensure stable performance and has a noise level of 68 dBA at 7 meters. The generator is equipped with a 75-liter fuel tank, providing extended runtime for continuous power supply.

Request a quote

Detail Information

Product Name: Quanchai 16kW Diesel Generator Set, Super Silent, Soundproof
Fuel Type: Diesel
Engine: Quanchai QCN490D
Frequency: 50 Hz
Rated Power: 16kW, 20kVA
Max. Power: 18kW, 22kVA
Rated Voltage: 400/230 V
Rated Current: 28.9 A
Fuel Tank Capacity: 75 Liters
Cooling Method: Water Cooling
Battery: One Free Maintenance Battery
Noise Level at 7 Meters: 68 dBA
Controller: Deepsea
Dimension (Soundproof): 1850 × 850 × 1100 mm
Weight (Soundproof): 860 kg

Engine Specifications

Engine Brand	Quanchai
Engine Model	QCN490D
Number of Cylinders	4 Cylinders in line
Aspiration	Naturally Aspirated
Governor	Mechanical
Engine Max. Output Power	22 kW
Displacement	2.672 L
Starting Voltage	12 V
Bore	90 mm
Stroke	105 mm
Lubrication Oil Capacity	6.8 L
Compression Ratio	18 : 1
Intake Air Flow	2 m³/min
Fuel Consumption at 100% Load	6.6 L/h

Alternator Specifications

Rated Output	22kVA
Frequency	50 Hz
Altitude	≤ 1000 m
Insulation Class	H
Voltage Regulation	SX460
Protection Grade	IP23
Working Temperature without Output Decrease	≤ 40 °C
Phase	3 Phase
Temperature Rise	125°C
Optional Alternator Brands	Leroy Somer, Marathon, Mecc Alte, Hosem Brushless Alternator
