UPVC Pneumatic Ball Control Valve, 1/2-4 IN, PN10, 150 LB
Key Specifications / Features
Discover our UPVC Pneumatic Ball Control Valve, engineered for seamless performance. Featuring a quarter-turn design and a floating ball core, it ensures quick operation and reliable shut-off. Crafted from durable plastic UPVC, it guarantees longevity and resistance to corrosion. Available in sizes from 1/2 to 4 inches (DN15-DN100), it accommodates diverse applications. With a pressure rating of PN10 and Class 150 LB, it offers versatility and adaptability. Enjoy zero external leakage, low fluid resistance, and visible open/close position control for enhanced efficiency. Suitable for various chemicals, including hydrochloric acid, our valve ensures dependable performance in challenging environments.
Detail Information
SPECIFICATIONS
Product Name: UPVC Pneumatic Ball Control Valve
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure: PN10, Class 150 LB
Body Materials: PVC, CPVC, UPVC, PVDF
Stem Material: SS 304, SS 410
Sealing Material: EPDM
End Connection: Flanged
Structure: Floating Ball Core
Applicable Media: Water, Oil, Gas, Liquid, Steam, Powder, Anti-corrosive Base.
Dimension of UPVC Ball Control Valve

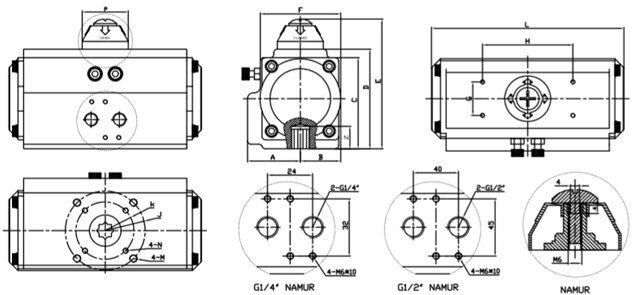

Drawing of Pneumatic Ball Control Valve
Product Name: UPVC Pneumatic Ball Control Valve
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure: PN10, Class 150 LB
Body Materials: PVC, CPVC, UPVC, PVDF
Stem Material: SS 304, SS 410
Sealing Material: EPDM
End Connection: Flanged
Structure: Floating Ball Core
Applicable Media: Water, Oil, Gas, Liquid, Steam, Powder, Anti-corrosive Base.
Dimension of UPVC Ball Control ValveDrawing of Pneumatic Ball Control Valve
