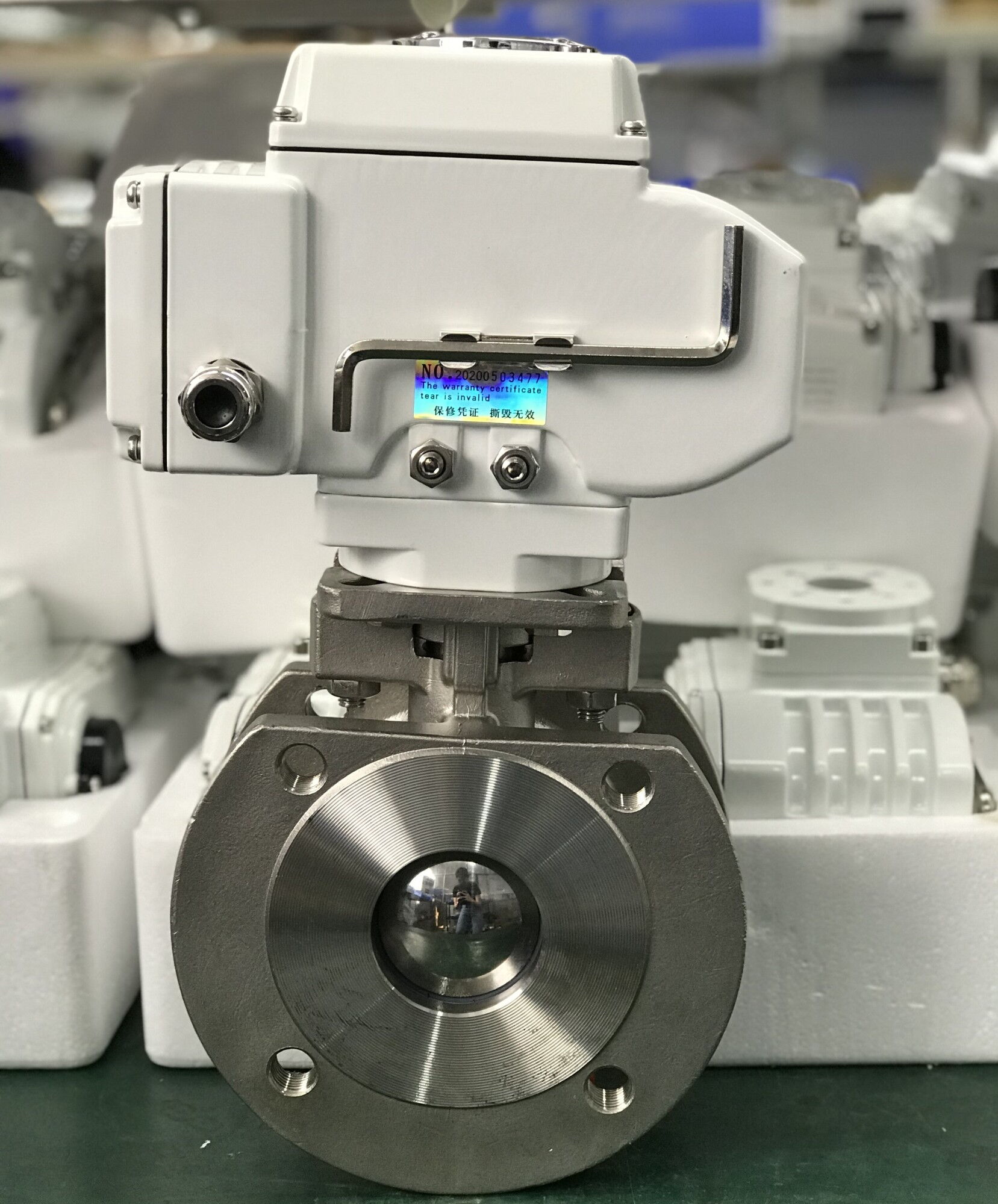

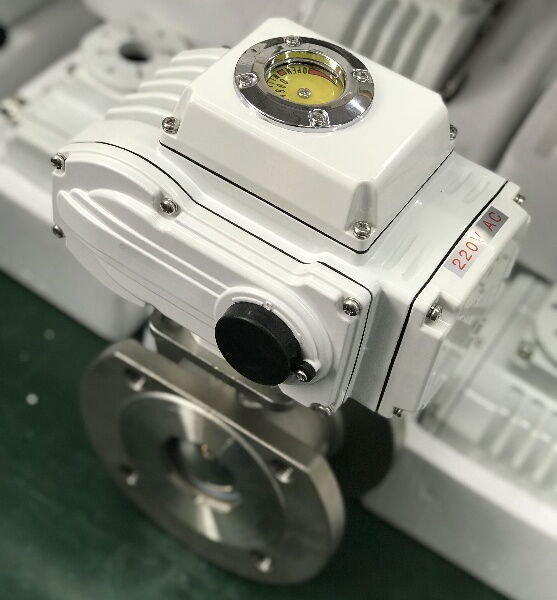

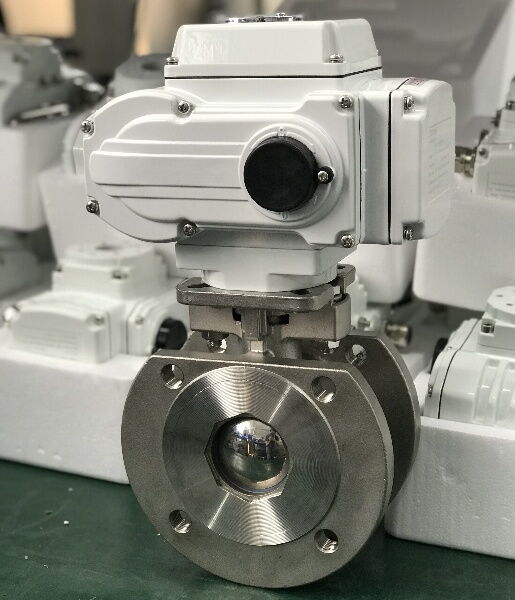

Ultra-thin Electric Ball Control Valve, DN50, SS 304, 150 LB

Name: Ultra-thin Electric Ball Control Valve, DN50, SS 304, 150 LB
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Our Ultra-Thin Electric Ball Control Valve offers precise modulating and on/off control in a lightweight design. Available in sizes from 3/4 to 3 inches, and rated at PN10 and PN16, it is crafted from high-quality stainless steel (SS 304, SS 316, SS 316L) for exceptional durability. The valve features female threads for easy installation. Benefits include compact size for space-saving applications, excellent corrosion resistance, and reliable performance. Ideal for various media, this valve enhances system efficiency and reduces maintenance costs. Choose our valve for a high-quality, cost-effective solution to your control needs.

Request a quote

Detail Information

SPECIFICATIONS
Product Name: Ultra-thin Electric Ball Control Valve
Key Features: Modulating, On/Off, Light Weight, Ultra-thin
Size Range: 3/4 Inch - 3 Inch, DN20-DN80
Pressure Rating: PN10, PN16, Class 150 LB
Body Materials: Stainless Steel, SS 304, SS 316, SS 316L
Stem Material: Stainless Steel
Seating Material:
PTFE: -20°C to 180°C
PPL: -20°C to 150°C
End Connection: Female Thread, Flanged, Wafer
Working Temperature: 14°F to 356°F (-10°C to 180°C )
Voltage Optional: AC-24V, 110V, 240V, 380V, DC-12V, 24V
Input/Output Signal: 4-20mA, 1-5VDC, 0-10VDC
Control Methods: ON/OFF Type, Modulating Type, Intelligent Type
Applicable Media: Control of water, Air, Gas, Oil, Liquid, Steam
Structure: Floating Ball Core
