Top Guided Pneumatic Control Valve, 1/2-12 Inch, 150-600 LB
Key Specifications / Features
The Top Guided Pneumatic Control Valve offers low flow resistance and features a multi-spring actuator with a compact design, low height, and lightweight construction. Its streamlined S-shaped flow channel ensures efficient flow management. This valve boasts a compact structure, flexible operation, minimal pressure drop, precise flow control, and easy maintenance. Equipped with a balanced valve plug mechanism, it maintains stability, reduces vibration, and operates quietly even in high-temperature environments. Ideal for applications with moderate leakage tolerance and elevated temperatures, this high-temperature pneumatic control valve ensures reliable performance and precise control in diverse industrial settings.
Detail Information
SPECIFICATIONS
Product Name: Top Guided Pneumatic Control Valves
Size Range: DN15-DN300, 1/2 Inch - 12 Inch
Pressure Rating: PN10-PN64, Class 150 LB - 600 LB
Body material: ASTM A216 WCB, ASTM A217 WC6, ASTM A217 WC9, ASTM A351 CF8, ASTM A351 CF8M, etc.
Inherent Regulation Ratio: 50:1
Service Temperature: -100°C to -60°C, -200°C to -100°C, -250°C to -200°C
Ambient Temperature: -30°C to 70°C
Air Supply Pressure (KPa): 0.14, 0.25, 0.40
Spring Range (KPa): 20 to 100(Basic Type), 40 to 200, 80 to 240
Connection Thread:
G1/4 Inch: BSPP (parallel) thread, 1/4 inch nominal diameter, 19 TPI.
M16x1.5: Metric thread, 16 mm nominal diameter, 1.5 mm pitch.
Medium: Water, Steam, Oil, etc.
Temperature: 100°C to 450°C
Product Name: Top Guided Pneumatic Control Valves
Size Range: DN15-DN300, 1/2 Inch - 12 Inch
Pressure Rating: PN10-PN64, Class 150 LB - 600 LB
Body material: ASTM A216 WCB, ASTM A217 WC6, ASTM A217 WC9, ASTM A351 CF8, ASTM A351 CF8M, etc.
Inherent Regulation Ratio: 50:1
Service Temperature: -100°C to -60°C, -200°C to -100°C, -250°C to -200°C
Ambient Temperature: -30°C to 70°C
Air Supply Pressure (KPa): 0.14, 0.25, 0.40
Spring Range (KPa): 20 to 100(Basic Type), 40 to 200, 80 to 240
Connection Thread:
G1/4 Inch: BSPP (parallel) thread, 1/4 inch nominal diameter, 19 TPI.
M16x1.5: Metric thread, 16 mm nominal diameter, 1.5 mm pitch.
Medium: Water, Steam, Oil, etc.
Temperature: 100°C to 450°C

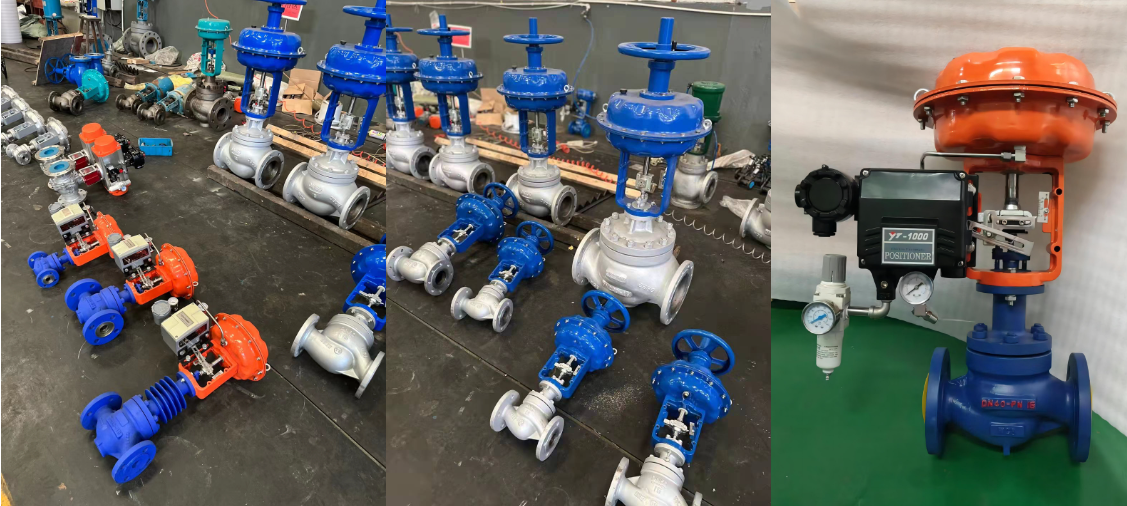

Top Guided Pneumatic Control Valve

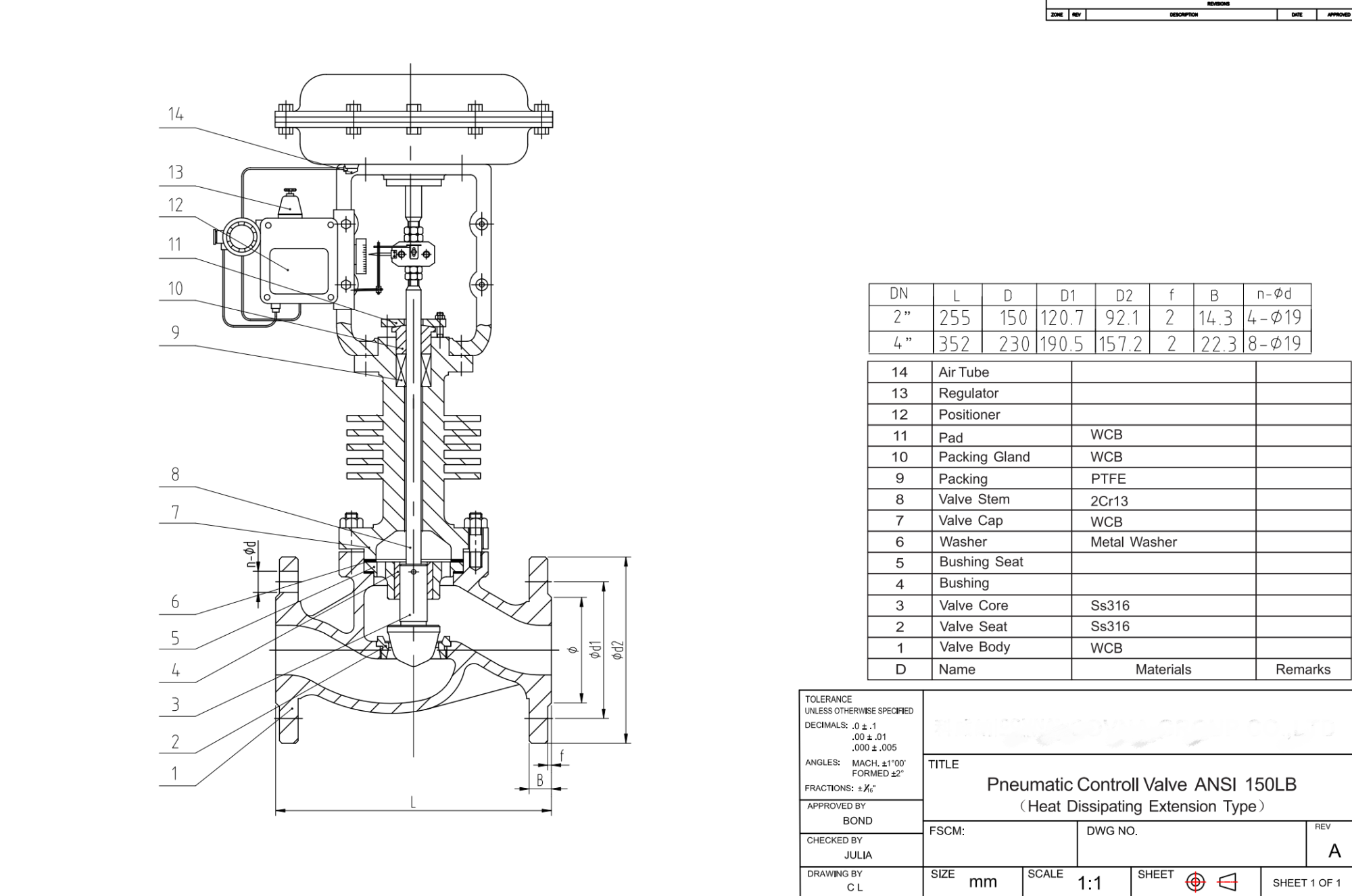

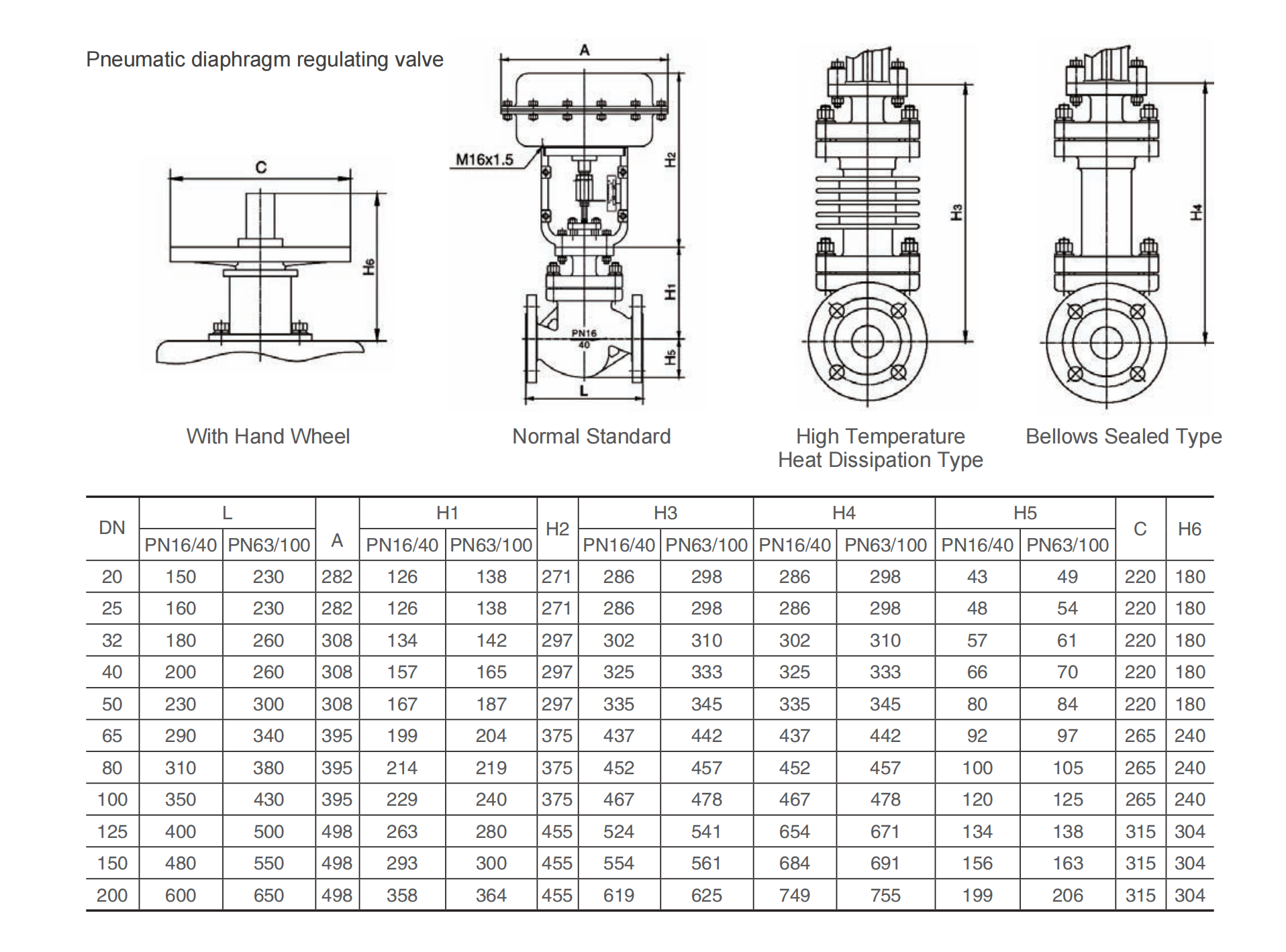

Drawing of Top Guided Pneumatic Control Valve
Drawing of Top Guided Pneumatic Control Valve
