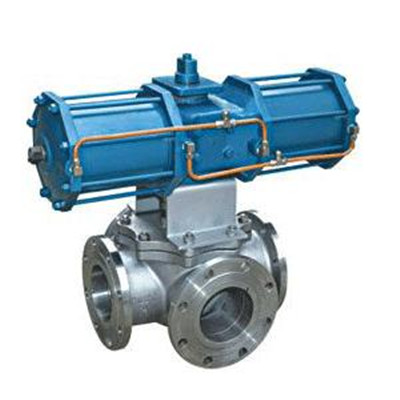

Three Way Pneumatic Ball Control Valve, SS 316L, DN15-DN200
Key Specifications / Features
Presenting our Three-Way Pneumatic Ball Control Valve, featuring a robust pneumatic actuator for precise control. Manufactured in accordance with ASME B16.34 and API 608 standards, this valve is available in sizes from 1/2 to 8 inches (DN15-DN200) and pressure ratings PN10-PN40. Constructed from premium SS 316L and CF8M materials, it ensures excellent durability and corrosion resistance. The screw end design allows for easy installation and maintenance. Ideal for complex flow control applications, this valve provides reliable performance, long service life, and compatibility with various industrial systems. Upgrade to our valve for superior efficiency and operational reliability.
Request a quote
Detail Information
SPECIFICATIONS
Product Name: Three Way Pneumatic Ball Control Valve
Design Standard: ASME B16.34, API 608, DIN 3357/1, EN 12516-1, GB/T 12237/1989
Materials: ASTM A351 CF8M, CF8, ASTM A216 WCB, SS 316L, SS 316, SS 304, SS 304L
Ball: SS 316L, SS 316, SS 304, SS 304L
Size Range: 1/2 Inch - 8 Inch, DN15-DN200
Pressure Rating: Class 150 LB, Class 300 LB, PN10-PN40
End:
ASME B16.34 Class 150 LB, ASME B16.34 Class 300 LB
DIN PN16, PN25, PN40
JIS 10K, 20K
Seat: PTFE, TFM1600, PEEK
Pneumatic Actuator: Double acting, Single acting normally closed, acting, Single normally open
Medium: Gas, Water and Oil, etc
Option: Olenoid valve, limit switch box , Filter, E/P positioner, Hand wheel.
Design Features:
1. Lost-Wax Precision Casting: Ensures high-quality and durable construction.
2. Fire Safe Design Approved: Provides enhanced safety in critical applications.
3. Built-In ISO5211 Direct Mounting Pad: Facilitates easy automation and integration.
4. Anti-Static Devices: Protects ball, stem, and body for reliable operation.
5. Blow-Out Proof Stem: Enhances safety and prevents stem ejection.
6. TA-LUFT Design: Meets stringent environmental standards for emissions.
7. Versatile Thread Standards: Compatible with a wide range of thread specifications for flexible installation.
Product Name: Three Way Pneumatic Ball Control Valve
Design Standard: ASME B16.34, API 608, DIN 3357/1, EN 12516-1, GB/T 12237/1989
Materials: ASTM A351 CF8M, CF8, ASTM A216 WCB, SS 316L, SS 316, SS 304, SS 304L
Ball: SS 316L, SS 316, SS 304, SS 304L
Size Range: 1/2 Inch - 8 Inch, DN15-DN200
Pressure Rating: Class 150 LB, Class 300 LB, PN10-PN40
End:
ASME B16.34 Class 150 LB, ASME B16.34 Class 300 LB
DIN PN16, PN25, PN40
JIS 10K, 20K
Seat: PTFE, TFM1600, PEEK
Pneumatic Actuator: Double acting, Single acting normally closed, acting, Single normally open
Medium: Gas, Water and Oil, etc
Option: Olenoid valve, limit switch box , Filter, E/P positioner, Hand wheel.
Design Features:
1. Lost-Wax Precision Casting: Ensures high-quality and durable construction.
2. Fire Safe Design Approved: Provides enhanced safety in critical applications.
3. Built-In ISO5211 Direct Mounting Pad: Facilitates easy automation and integration.
4. Anti-Static Devices: Protects ball, stem, and body for reliable operation.
5. Blow-Out Proof Stem: Enhances safety and prevents stem ejection.
6. TA-LUFT Design: Meets stringent environmental standards for emissions.
7. Versatile Thread Standards: Compatible with a wide range of thread specifications for flexible installation.
Three way L type Flow Diagram
Three way T Type Flow Diagram
Drawing of 3-Way Ball Control Valve
Three way T Type Flow Diagram
Drawing of 3-Way Ball Control Valve
