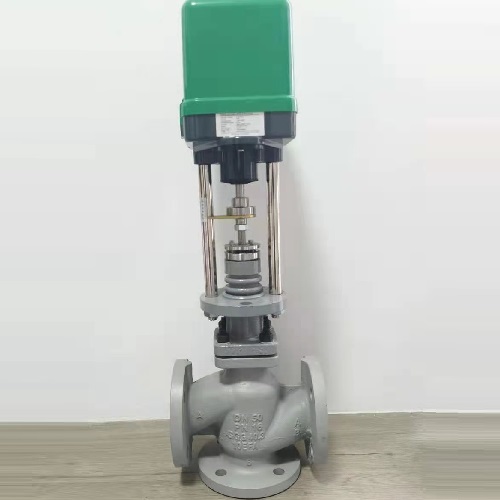

Three-way Control Valves, DN15-DN300, PN16-PN400, 1.0619
Key Specifications / Features
Introducing our Three-way Control Valves, expertly designed for mixing and diverting applications. Available in sizes from DN15 to DN300 (1/2 inch to 12 inches) and pressure ratings from PN16 to PN400 (Class 150-2500 LB). Constructed from robust Carbon Steel and Alloy Steel, these valves ensure durability and reliable performance. Featuring flanged connections, they are suitable for a wide range of industrial applications, offering precise control and adaptability in demanding environments.
Request a quote
Detail Information
SPECIFICATIONS
Product Name: Three-way Control Valve
Design Features: Three Way, Mixing, Diverting
Body Materials: carbon steel GP240GH(1.0619), ASTM A216 WCB, alloy steel G17CrMo 9-10 (1.7379), stainless steel GX5CrNiMo 19-11-2 (1.4408)
Plug and seat material: stainless steel, stellit, hastelloy, monel
Pressure Rating: PN16-PN400, Class 150 LB - 2500 LB
Sizes: DN15-DN300, 1/2 Inch - 12 Inch
Working temperature range: -196°C to +650°C
Flow characteristics: linear, equipercent, On/Off
Flow coefficient Kvs: 0,1 – 800 [m3.h-1]
Leakage class (IEC 60534-4): class IV, class V, class VI
End Connection: Flanged, welded, threaded, clamp
Type of actuator: pneumatic diaphragm (with handwheel), electro-hydraulic, hand-operated
Product Name: Three-way Control Valve
Design Features: Three Way, Mixing, Diverting
Body Materials: carbon steel GP240GH(1.0619), ASTM A216 WCB, alloy steel G17CrMo 9-10 (1.7379), stainless steel GX5CrNiMo 19-11-2 (1.4408)
Plug and seat material: stainless steel, stellit, hastelloy, monel
Pressure Rating: PN16-PN400, Class 150 LB - 2500 LB
Sizes: DN15-DN300, 1/2 Inch - 12 Inch
Working temperature range: -196°C to +650°C
Flow characteristics: linear, equipercent, On/Off
Flow coefficient Kvs: 0,1 – 800 [m3.h-1]
Leakage class (IEC 60534-4): class IV, class V, class VI
End Connection: Flanged, welded, threaded, clamp
Type of actuator: pneumatic diaphragm (with handwheel), electro-hydraulic, hand-operated
