Spring Return Pneumatic Ball Control Valves, 1/2-6 IN, PN16
Key Specifications / Features
Our Pneumatic V Sector Ball Control Valve is tailored for precise control across all process flow applications. It integrates a high-performance modulating ball valve, a reliable pneumatic actuator, and an advanced positioner. Available in PN16 / ANSI 150 flanged configurations, ranging from sizes 1/2 to 6 Inch, this valve is ideal for commercial and industrial process environments.
Designed to maintain consistent flow rates in both continuous and batch operations, it excels in regulating liquid filling line pressures and heat exchanger discharge temperatures with steam feed lines. Setting up and programming is straightforward with the self-auto tune positioner, accommodating 4-20mA or 0-10 volt input signals.
Customizable with a choice of 30°, 60°, or 90° V-notch ball, it offers versatility to meet various flow control requirements.
Request a quote
Detail Information
On this page
Technical Attributes
Product Name: Spring Return Pneumatic Ball Control Valve
Key Features: V Notch Ball, Pneumatic Actuator
Size Range: 1/2 Inch (DN15), 3/4 Inch (DN20), 1 Inch (DN25), 1 1/4 Inch (DN32), 1 1/2 Inch (DN40), 2 Inch (DN50), 2 1/2 Inch (DN65), 3 Inch (DN80), 4 Inch (DN100), 5 Inch (DN125), 6 Inch (DN150)
Pressure: PN16, Class 150 LB
Body Material: ASTM A351 CF8M, Stainless Steel
Ball Material: SS 316
Seat Material: 50% Stainless Steel / 50% PTFE filled
Media: Liquid, Steam / Gas
Control Technology: V Sector
Joint Gasket: PTFE
Steam Seal: RTFE
Bolt/Nut: SS 304

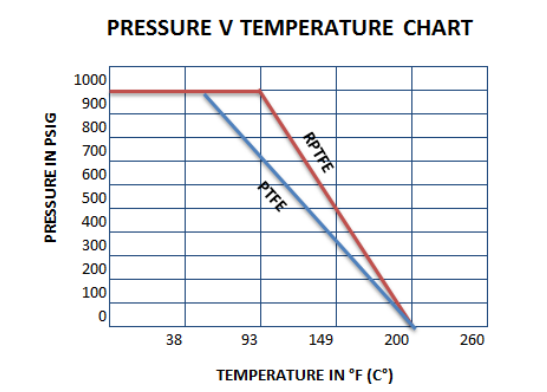

Temperature Range: -20 to +200°C
Ambient Temperature: -25 to +80°C
Protection: IP65
Action: Single Acting, Double Acting
Rotation: Anti Clockwise Opening
Features
1. PN16 or ANSI 150 flanged connections
2. State-of-the-art positioner
3. Choice of 30°, 60°, or 90° V-notch ball
4. Seats filled with 50% stainless steel / 50% PTFE for optimal sealing
5. Spring return pneumatic actuator
6. Operating temperature ranges from -20°C to +200°C
7. Equipped with high-temperature seats as standard
8. Designed for high flow rates
9. No need for additional solenoids

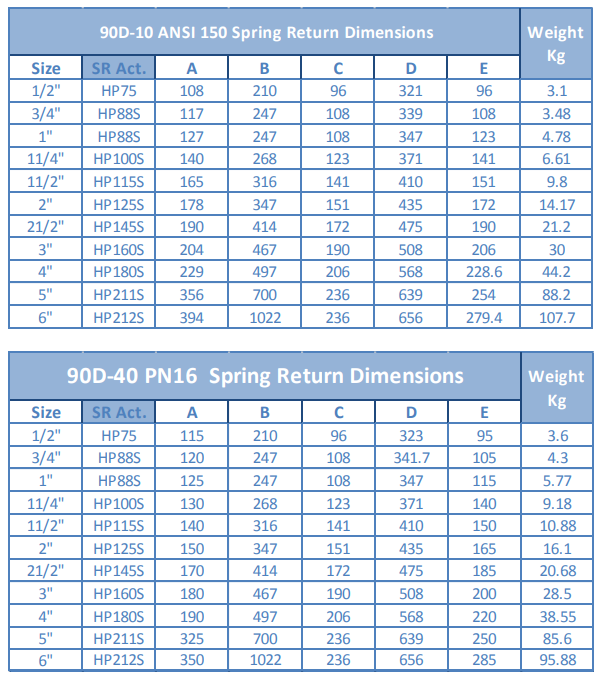

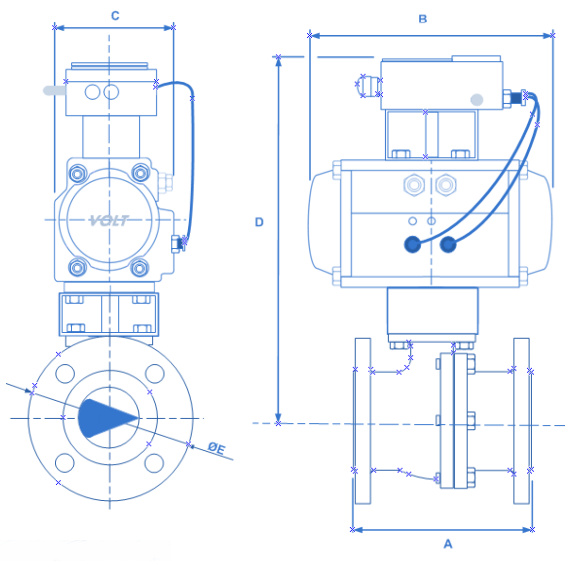

Dimensions
