Single-Seated Globe Control Valve, CF8M, 8 Inch, 150-600 LB

As a leading manufacturer of Single-Port Globe Control Valves, we offer low leakage, cage-guided valves specifically designed for general control applications across a wide range of temperatures and pressure drops. Our 8-inch valves, rated Class 150-600 LB and compliant with ASME B16.34, are constructed from durable ASTM A352 LCC and ASTM A216 WCB materials, ensuring robust performance and longevity. These valves feature an upper piston ring seal and metal-to-metal seating, making them ideal for applications demanding low leakage rates. For applications requiring tight shutoff, our valves are available with composition seating (TFE). Alternatively, for higher temperature applications, metal-to-metal seating provides enhanced durability and reliability. With flanged ends for secure installation, our Single-Port Globe Control Valves deliver exceptional control and performance, meeting stringent industry standards.

SPECIFICATIONS

Product Name: Single Seated Globe Control Valve
Size: 8 Inch
Pressure Rating: Class 150 LB, Class 300 LB, Class 600 LB
Body Materials: ASTM A352 LCC, ASTM A216 WCB, WCC, ASTM A217 WC9, C5, Monel, ASTM A351 CF8M SST
Trim Materials: Stainless Steel 316, Tungsten Carbide, Stellite Overlay, Cobalt, Ceramic
Seats: Metal, PTFE
End Connections:
ANSI Flanges
Raised Face or Ring Type Joint Flanges as per ASME B16.34 Latest Edition
Shutoff: ANSI Class IV & V, ANSI Class II & III
Maximum Inlet Pressure & Temperature: consistent with ASME Class per ASME 16.34
Maximum Pressure Drops: all valves are capable of full rated pressure drops
Flow Characteristics: Quick Opening, Linear, Equal Percent
Trim Options: Noise abatement, Anti-cavitation
Flow Direction:
Normally Down, Linear, Quick Opening, Equal Percent
Always up, Noise Abatement
Always Down, Anti-Cavitation
Valve Travel Indication: Valves are supplied with Visual Travel Indicator


Features & Benefits

1. Easy Maintenance: Top entry cage design allows for convenient in-line maintenance.
2. Efficient Operation: Balanced plug enables the use of smaller actuators.
3. Flow Control Options: Offers characterized flow options including equal percentage, linear, and quick opening.
4. Material Versatility: Available in various body and trim materials, suitable for liquids, gases, or steam applications.
5. High Pressure Handling: Cage guiding ensures stability and allows the Mark E to manage high pressure drops.
6. Sour Service Compatibility: Optional compliance with NACE MRO175/ISO15156-2009 standards.
7. Reliable Sealing: Provides tight shutoff for enhanced performance.

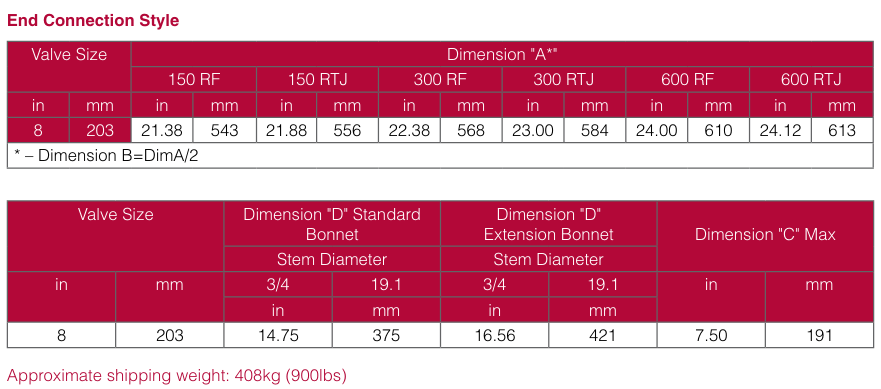

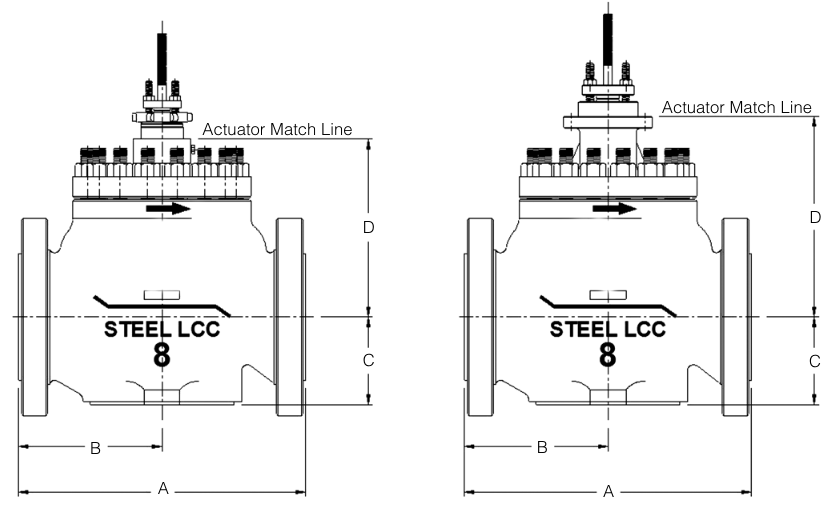

Dimensions
