Single Seated Control Valve, GG25, 1/2-10 Inch, PN16-PN40
Key Specifications / Features
Introducing our Single Seated Control Valve, available in sizes DN15-DN250 (1/2-10 Inch) and pressure ratings PN16-PN40 (Class 150-300 LB). Fabricated from durable Gray Iron EN-GJL-250 (GG25), these valves feature a pneumatic actuator and hand-operated option. Ideal for automatic and remote control systems, they efficiently manage the flow of gases and liquids. With a wide range of material and design versions, these single-ported globe control valves are highly sought after in industries such as chemical, heat and power generation, paper, food, metallurgy, and coal mining.
Request a quote
Detail Information
SPECIFICATIONS
Product Name: Single Seated Control Valve
Key Features: Pneumatic Actuator, Hand-operated, Single-seated
Body material: gray iron EN-GJL-250 (GG25), GJS 400-18T (GGG40), carbon steel GP240GH(1.0619), ASTM A216 WCB, stainless steel GX5CrNiMo 19-11-2 (1.4408)
Nominal diameters: DN15-DN250, 1/2 Inch - 10 Inch
Pressure Rating: PN16-PN40, Class 150 LB - 300 LB
Working temperature range: -196°C to +400°C
Flow characteristics: linear, equipercent, On/Off
Flow coefficient Kvs: 0,01 – 630 [m3.h-1]
Leakage class (IEC 60534-4): class IV, class V, class VI

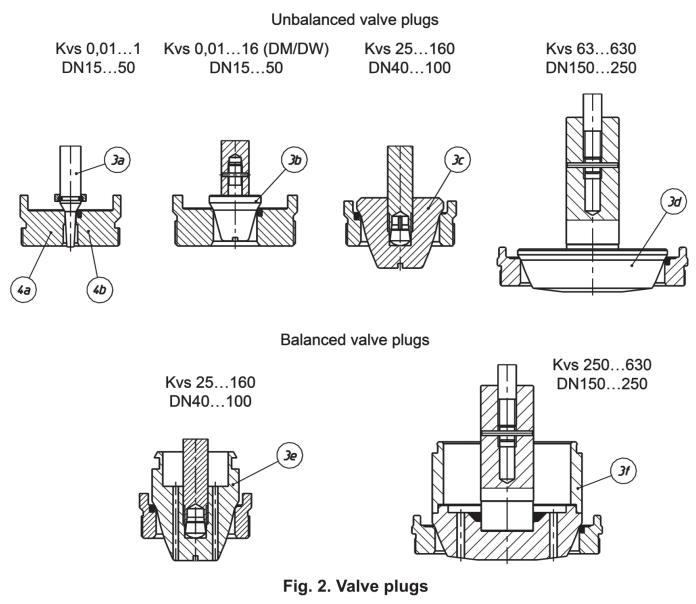

Plug and seat material: stainless steel, stellit, monel, hastelloy
End Connection: Flanged

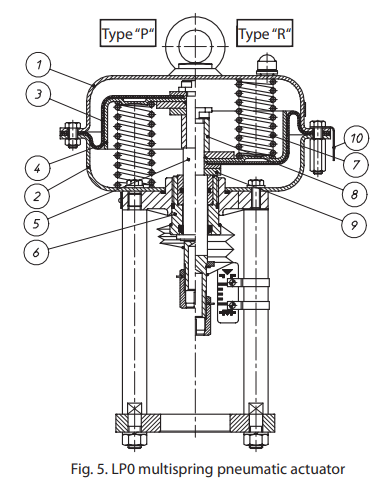

Type of actuator: pneumatic diaphragm (with handwheel), electro-hydraulic, hand-operated
Product Name: Single Seated Control Valve
Key Features: Pneumatic Actuator, Hand-operated, Single-seated
Body material: gray iron EN-GJL-250 (GG25), GJS 400-18T (GGG40), carbon steel GP240GH(1.0619), ASTM A216 WCB, stainless steel GX5CrNiMo 19-11-2 (1.4408)
Nominal diameters: DN15-DN250, 1/2 Inch - 10 Inch
Pressure Rating: PN16-PN40, Class 150 LB - 300 LB
Working temperature range: -196°C to +400°C
Flow characteristics: linear, equipercent, On/Off
Flow coefficient Kvs: 0,01 – 630 [m3.h-1]
Leakage class (IEC 60534-4): class IV, class V, class VI
Plug and seat material: stainless steel, stellit, monel, hastelloy
End Connection: Flanged
Type of actuator: pneumatic diaphragm (with handwheel), electro-hydraulic, hand-operated
