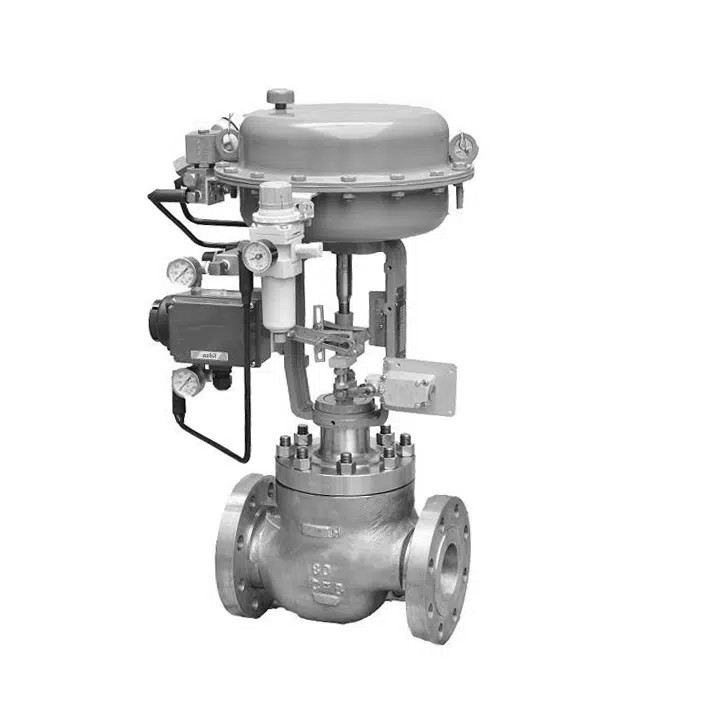

Single-seat Control Valve, Perforated Plug, 1/2-12 IN

Name: Single-seat Control Valve, Perforated Plug, 1/2-12 IN
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Our valve offers versatility with various materials for the body and internal parts, tailored to specific working conditions. Its design ensures noise reduction, resistance to cavitation and flashing, and eliminates choked flow. With nominal dimensions ranging from DN15 to DN250 and nominal pressures from PN10 to CL2500, it caters to diverse applications. Bellow seal bonnets or bonnet packings reduce emissions, meeting TA - LUFT requirements. Easy assembly and dismantling facilitate maintenance. High durability is ensured through top-class materials and surface improvement processes. It's compatible with LP0 and LP1 multi-spring actuators, with the option to change spring range without extra parts. Smart electro-pneumatic positioners allow diagnostics, while a wide range of electric actuators is available.

Request a quote

Detail Information

SPECIFICATIONS
Product Name: Single-seat Control Valve
Design Features: Profiled Plug, Perforated Plug, Multi-stage Reduction
Body material: Carbon Steel GP240GH(1.0619), ASTM A216 WCB, Alloy Steel G17CrMo 9-10 (1.7379), Stainless Steel GX5CrNiMo 19-11-2 (1.4408)

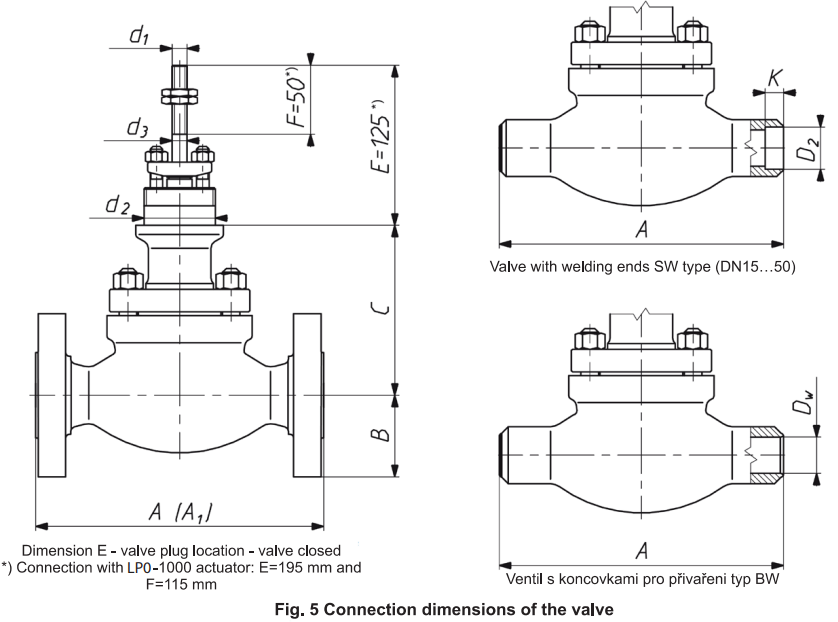

Sizes: DN15-DN300, 1/2 Inch - 12 Inch
Pressure Rating: Class 150 LB – 2500 LB, PN16-PN400
Working temperature range: -180°C to +400°C
Flow characteristics: linear, equipercent, on/off
Flow coefficient Kvs: 0,1 – 800 [m3.h-1]
Leakage class (IEC 60534-4): class IV, class V, class VI
Plug and seat material: stainless steel, stellit, monel, hastelloy
End Connection: Flange, Welded

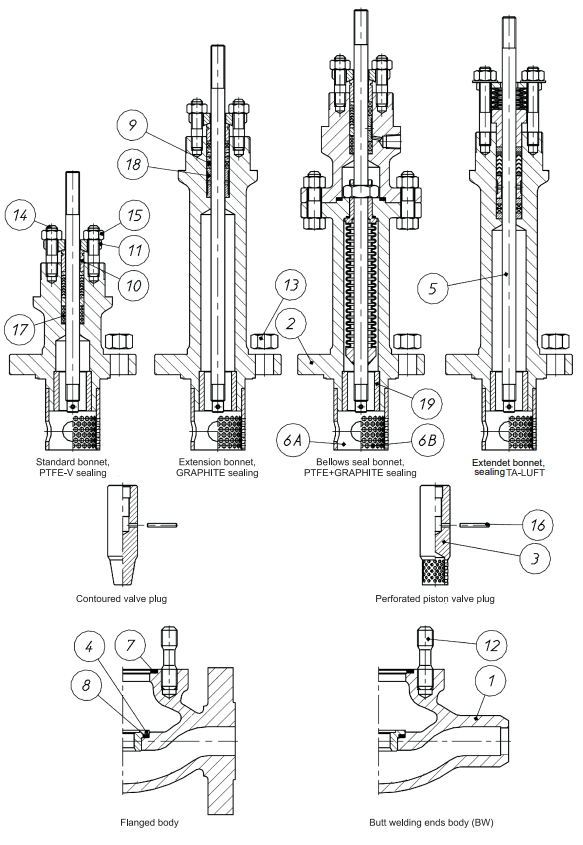

Construction: single seat valve with option of perforated plug guided in cage, metal or soft seat
Actuators: pneumatic with diaphragm, electro-hydraulic, electric, hydraulic, manual operate
