PTFE lined Butterfly Control Valve, Electric, DN24-DN600
Key Specifications / Features
Introducing our Electric PTFE Lined Butterfly Control Valve, meticulously engineered to deliver exceptional performance in corrosive environments. Its PTFE lining ensures corrosion resistance, smooth flow control, and chemical compatibility, making it suitable for diverse applications. With tight sealing to prevent leakage and extended service life, it offers reliability and cost-effectiveness. Ideal for industries like chemical processing and pharmaceuticals, it provides precise control through electric actuation, ensuring efficient operation and regulatory compliance. Easy maintenance, environmental safety, and enhanced performance are key features, making it the preferred choice for demanding fluid handling applications.
Request a quote
Detail Information
SPECIFICATIONS
Product Name: PTFE lined Butterfly Control Valve
Body Material: Cast Iron, Ductile Iron, Aluminum Stainless Steel, ASTM A351 CF8, CF8M, CF3M
Disc: 1.4462, ASTM A351 CF8M, CF8M FEP lined, CF8 EPDM lined
Seat: PTFE, FPM, EPDM, PU
End Connection: Wafer, Lug, Flange
Size Range: 2 Inch - 40 Inch, DN24-DN600
Pressure: PN10-PN16
End: EN 1092: PN 6, PN10, PN16
ASME Class 150 LB
AS 4087 PN10, PN16
JIS 5K, 10K
Electric Actuator: ON-OFF type, Adjustable type
Control signal: 4-20 mADC, 0-5 VDC, 0-10 VDC
Power: 12 VDC, 24 VAC, 24 VDC, 220 VAC, 120 VAC, 380 VAC 50/60 Hz ±10%
Optional:
Explosion-proof actuator: Exd II CT5、Exd II BT5
Product Name: PTFE lined Butterfly Control Valve
Body Material: Cast Iron, Ductile Iron, Aluminum Stainless Steel, ASTM A351 CF8, CF8M, CF3M
Disc: 1.4462, ASTM A351 CF8M, CF8M FEP lined, CF8 EPDM lined
Seat: PTFE, FPM, EPDM, PU
End Connection: Wafer, Lug, Flange
Size Range: 2 Inch - 40 Inch, DN24-DN600
Pressure: PN10-PN16
End: EN 1092: PN 6, PN10, PN16
ASME Class 150 LB
AS 4087 PN10, PN16
JIS 5K, 10K
Electric Actuator: ON-OFF type, Adjustable type
Control signal: 4-20 mADC, 0-5 VDC, 0-10 VDC
Power: 12 VDC, 24 VAC, 24 VDC, 220 VAC, 120 VAC, 380 VAC 50/60 Hz ±10%
Optional:
Explosion-proof actuator: Exd II CT5、Exd II BT5

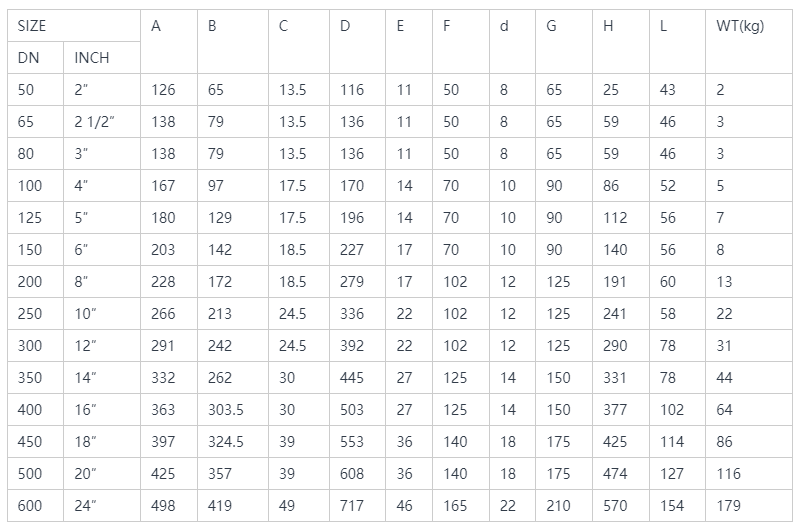

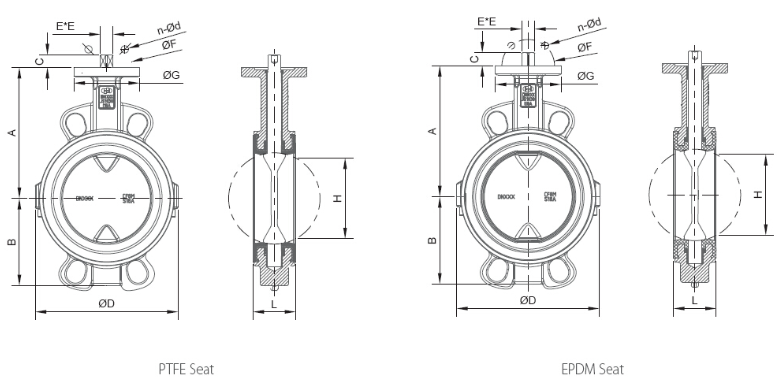

Drawing of PTFE LIned Butterfly Control Valve
