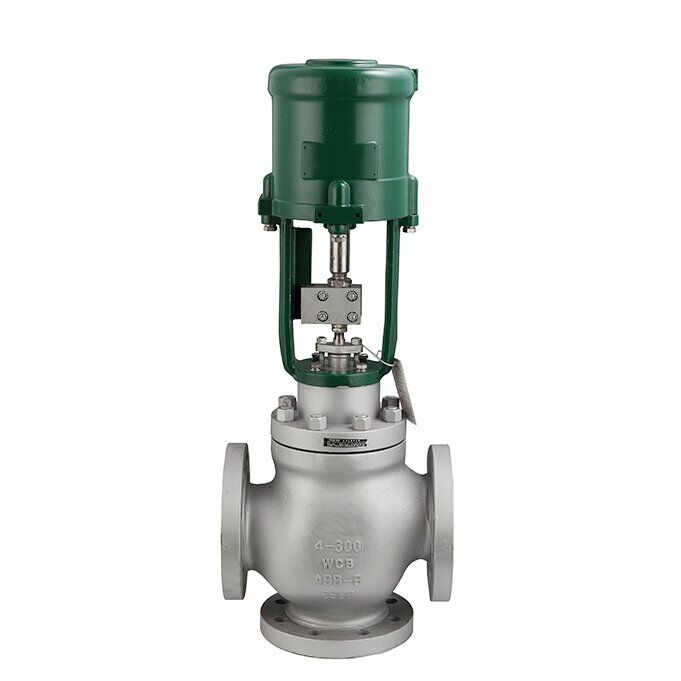

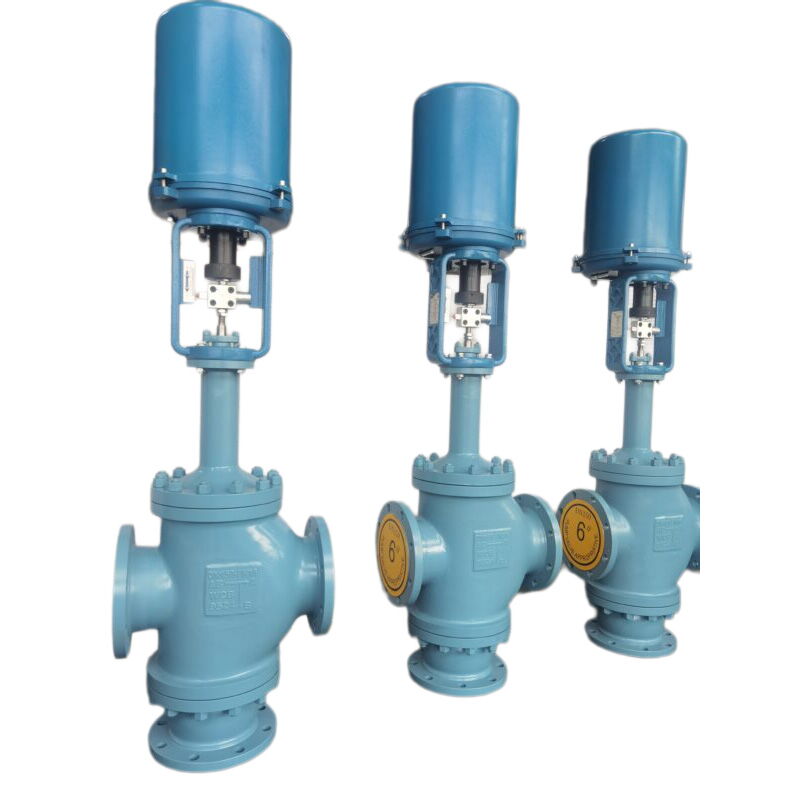

Pneumatic Mixing Globe Control Valve, 3/4-14 Inch, WCB, WC6

Name: Pneumatic Mixing Globe Control Valve, 3/4-14 Inch, WCB, WC6
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The Pneumatic Mixing Globe Control Valve operates with a plug structure designed for flow-to-open action. In mixing service control, it features two input ports and one outlet port, while in diverting service control, it has one inlet port and two outlet ports. As it functions in both opening and closing simultaneously, it doesn't rely on separate air-to-open or air-to-close mechanisms. In Direct Action Mixing Service, air failure leads to vertical flow (B → AB), whereas in Reverse Action Mixing Service, it results in horizontal flow (A → AB). Similarly, in Direct Action Diverting Service, air failure causes horizontal flow (AB → A), while in Reverse Action Diverting Service, it leads to vertical flow (AB → B).

Request a quote

Detail Information

SPECIFICATIONS
Product Name: Pneumatic Mixing Globe Control Valve
Size Range: 3/4 - 14 Inch, DN20-DN350
Materials: ASTM A216 WCB, WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3M, CF3
Key Features: Pneumatic Mixing Type, Three Way, Carbon Steel
Pressure rating: ANSI Class 125 LB, 150 LB, 300 LB, 600 LB, JIS 10K, 16K, 20K, 30K, 40K, PN16, PN40, PN64, PN100
Temperature Range: -196 to +450°C
End connection:
Flanged End: FF(Flat Face), RF(Raised Face), RJ(Ring Joint), LG(Large Male)
Welded End: SW(Socket Weld), BW(Butt Weld)
Threaded End: Rc(British Standard Pipe Taper)
Bonnet:
Plain bonnet (-17 to 230°C)
Extension bonnet (-60 to -29 °C or over 230°C)

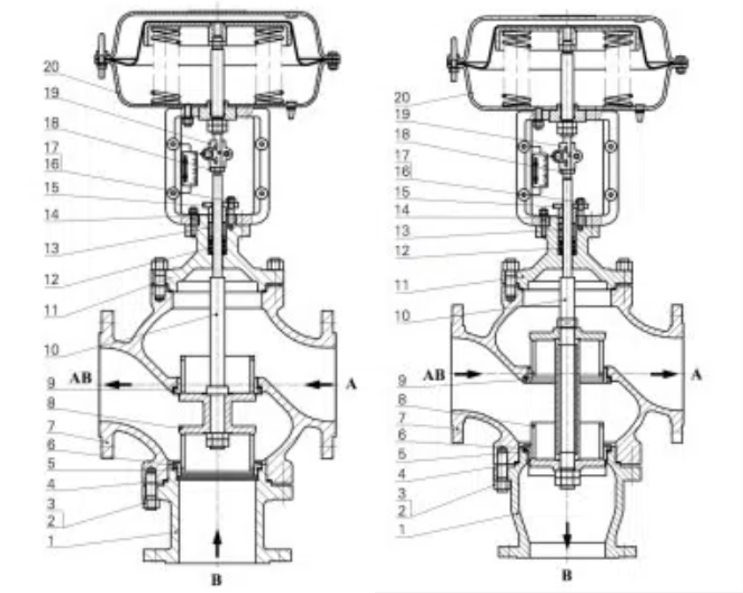

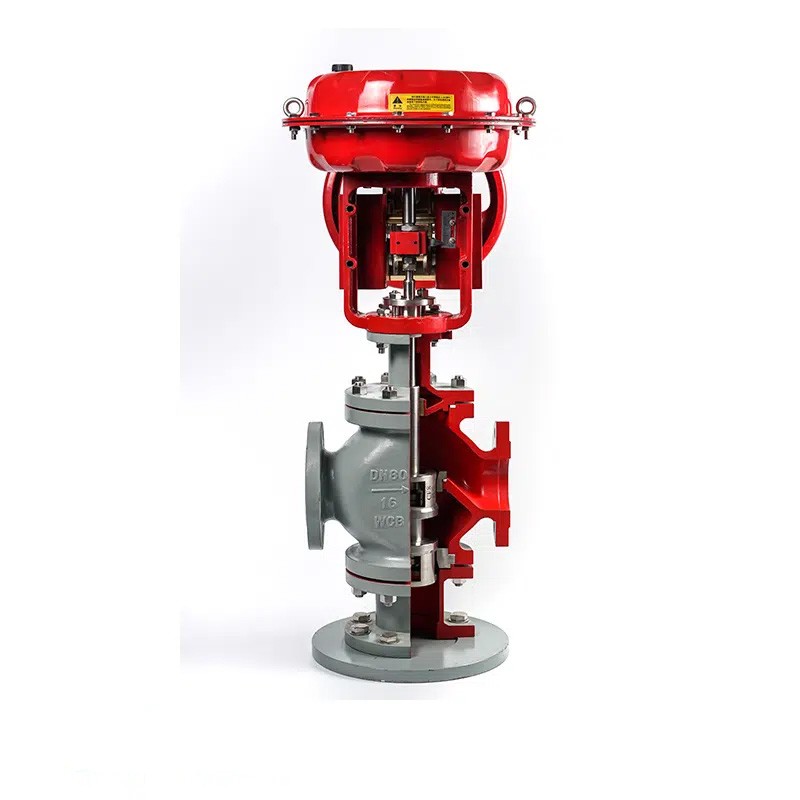

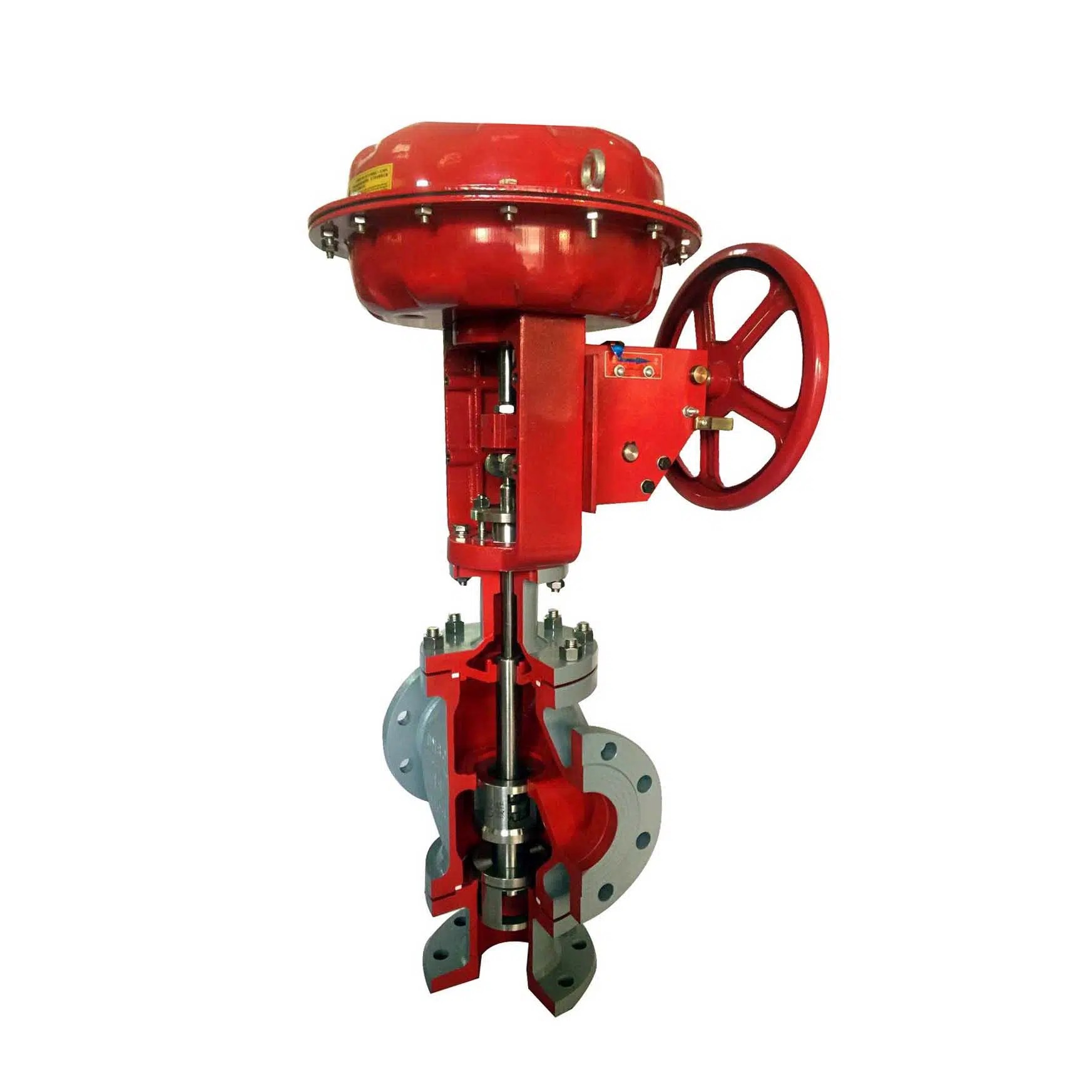

Three-ways Mixing Type Control Valves

1. Connect Pipe
2. Double-screw Bolt
3. Hexagon Nut
4. Sealing
5. Gasket
6. Lower Bonnet
7. Body
8. Plug
9. Upper Seat
10. Stem
11. Bonnet
12. Packing Spring
13&14. Nuts&Bolts
15. Spring Plate
16&17. Studs&Nuts
18. Locknut
19. Stem Connector
20. Actuator
