Pneumatic Globe Control Valves, SS, PN16-PN40, DN15-DN100

Name: Pneumatic Globe Control Valves, SS, PN16-PN40, DN15-DN100
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

We specialize in manufacturing high-quality pneumatic globe control valves, featuring a digital electro-pneumatic positioner for precise control. Our valves are available in sizes from 1/2 to 4 inches and pressure ratings of PN16 to PN40. The valve body is constructed from durable stainless steel (1.4408), with trim made from quenched and tempered stainless steel (1.4021+QT) for enhanced strength and corrosion resistance. Key features include a spring-loaded PTFE V-ring unit and a spring-close pneumatic actuator, ensuring reliable operation. These valves are rated for temperatures ranging from -10°C to +220°C and are designed with flanged ends for easy installation. Choose our pneumatic globe control valves for superior performance and durability in demanding industrial applications.

Request a quote

Detail Information

Technical Attributes

Product Name: Pneumatic Globe Control Valve
Sizes: 1/2 Inch (DN15), 3/4 Inch (DN20), 1 Inch (DN25), 1 1/4 Inch (DN32), 1 1/2 Inch (DN40), 2 Inch (DN50), 2 1/2 Inch (DN65), 3 Inch (DN80), 4 Inch (DN100)
Pressure Rating: PN16-PN40
Body Material: Stainless Steel
Media: Steam, Gas
Rangeability: 50:1
Temperature Range: -10°C to +220°C
End Connection: Flanged

Key Features

1. PN40 flanged connection
2. Stainless steel (1.4408) body with stainless steel (1.4021+QT) trim
3. Spring-loaded PTFE V-ring unit
4. Spring-close pneumatic actuator
5. Sizes ranging from DN15 to DN100, with Kvs values from 1 to 100
6. Digital electro-pneumatic valve positioner with inputs of 0-10 V, 0-5 V, 0-20 mA, or 4-20 mA

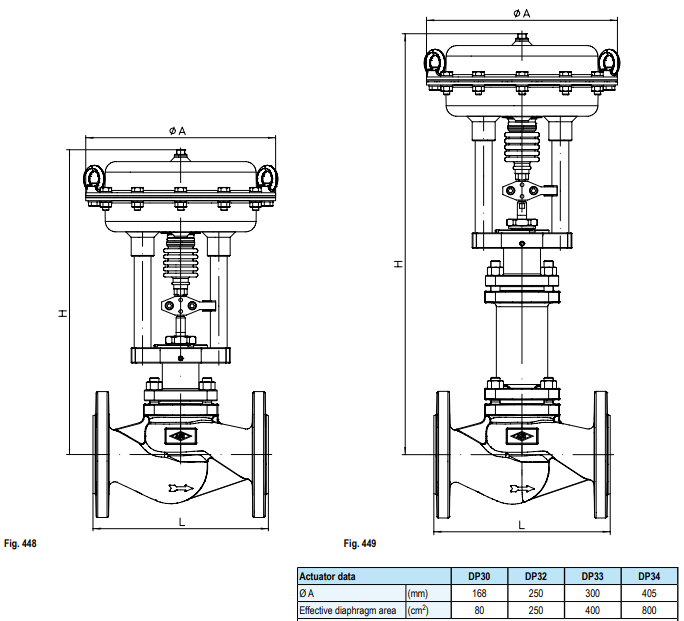

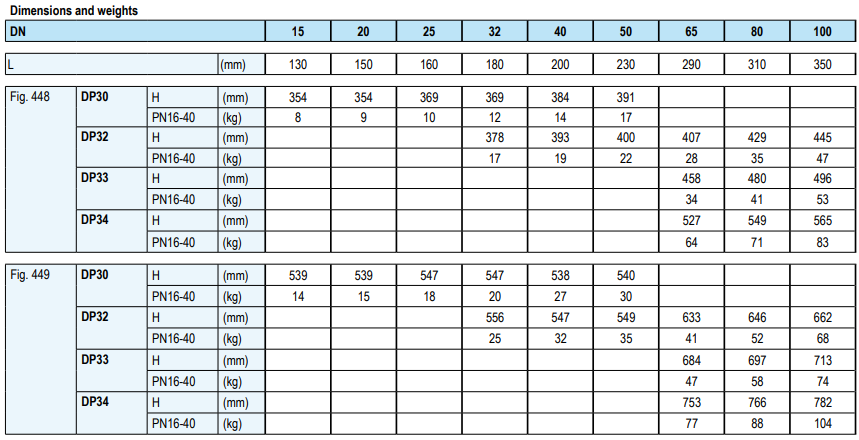

Dimensions
