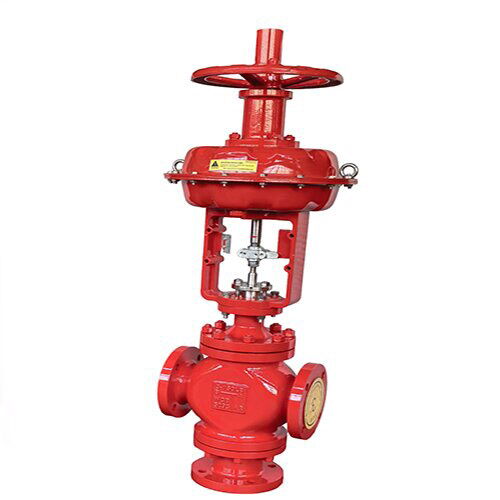

Pneumatic Globe Control Valve, Three-Way, WCB, 3 IN, 150 LB
Key Specifications / Features
The pneumatic globe valve serves as a three-way control valve, designed for mixing or diverting service, particularly in heat converters. Featuring a multi-spring actuator and a compact, high-output diaphragm motor with a simplified mechanism, it efficiently controls heat and other processes. In diverting service, it excels with its small-sized, high-output diaphragm motor, ideal for handling large ports and high differential pressures, ensuring effective performance in various industrial applications.
Request a quote
Detail Information
Product Name: Pneumatic Globe Control Valve
Key Features: Three-way Cast Globe Valve, Carbon Steel, Small-sized Diaphragm Motor
Size Range: 3/4 Inch - 14 Inch, DN20-DN350
Pressure rating: ANSI Class 125 LB - 600 LB, PN16-PN100
Material: ASTM A216 WCB, WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3M, CF3
Gasket material: Stainless steel(SUS304, SUS316, SUS316L), copper, aluminum
Actuator Type: Single-acting diaphragm actuator, Spring type piston actuator, Double acting piton actuator
Bonnet: Plain bonnet (-17 to 230°C), Extension bonnet(-60 to -29 °C or over 230°C)
Trim: Valve plug, Three-way, V-port with linear characteristics
End connection:
Flanged End: FF(Flat Face), RF(Raised Face), RJ(Ring Joint), LG(Large Male)
Welded End: SW(Socket Weld), BW(Butt Weld)
Flow characteristics: Linear
Leakage: Metal Seat
Inherent rangeability: 30:1
Valve action:
FO: Air to close(Direct action actuator is combined.)
FC: Air to open(Reverse action actuator is combined.)
Key Features: Three-way Cast Globe Valve, Carbon Steel, Small-sized Diaphragm Motor
Size Range: 3/4 Inch - 14 Inch, DN20-DN350
Pressure rating: ANSI Class 125 LB - 600 LB, PN16-PN100
Material: ASTM A216 WCB, WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3M, CF3
Gasket material: Stainless steel(SUS304, SUS316, SUS316L), copper, aluminum
Actuator Type: Single-acting diaphragm actuator, Spring type piston actuator, Double acting piton actuator
Bonnet: Plain bonnet (-17 to 230°C), Extension bonnet(-60 to -29 °C or over 230°C)
Trim: Valve plug, Three-way, V-port with linear characteristics
End connection:
Flanged End: FF(Flat Face), RF(Raised Face), RJ(Ring Joint), LG(Large Male)
Welded End: SW(Socket Weld), BW(Butt Weld)
Flow characteristics: Linear
Leakage: Metal Seat
Inherent rangeability: 30:1
Valve action:
FO: Air to close(Direct action actuator is combined.)
FC: Air to open(Reverse action actuator is combined.)
