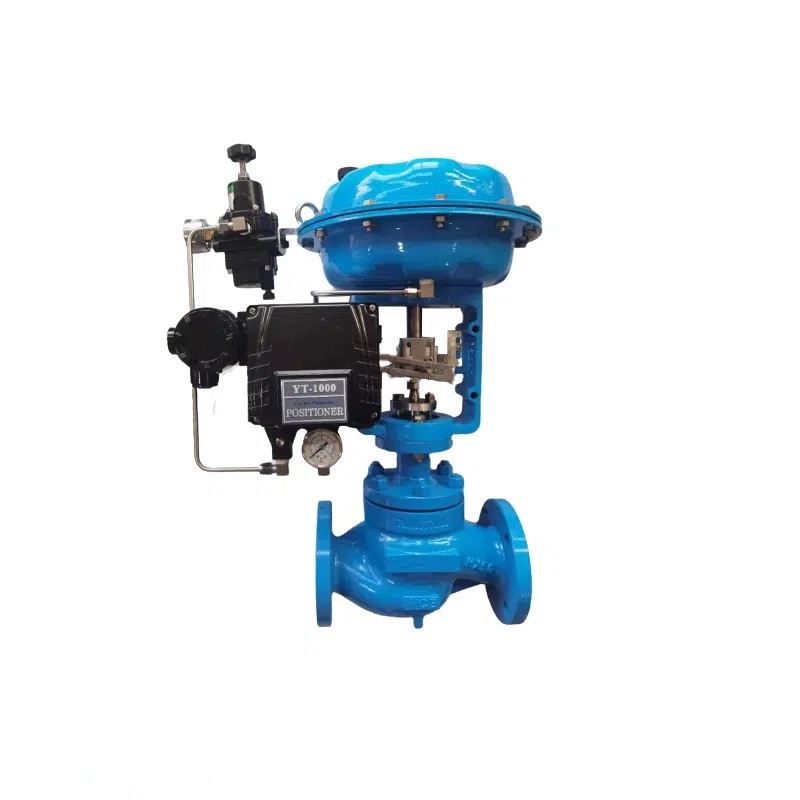

Pneumatic Cage-Guided Flow Control Valves, 3/4 Inch, DN20-DN80
Key Specifications / Features
Pneumatic Small-Port Cage-Guided Control Valves are tailored for high differential pressure services where fluid pressure exceeds 2940 kPa (30 kgf/cm2), or in heavy-duty operations prone to flashing or cavitation. Their robust guides and cage protect against erosion, ensuring durability. With a compact design featuring an S-shaped flow passage, these valves offer minimal pressure loss, facilitating ample flow capacity and rangeability. Offering various Cv values for valve plugs, they boast reliable flow shutoff performance via a compact diaphragm actuator with multiple springs. These versatile valves are ideal for precise control of small flows in high or low-temperature, high differential pressure systems.
Request a quote

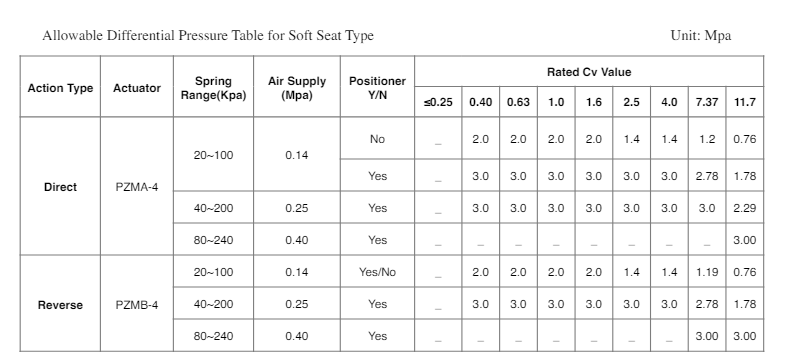

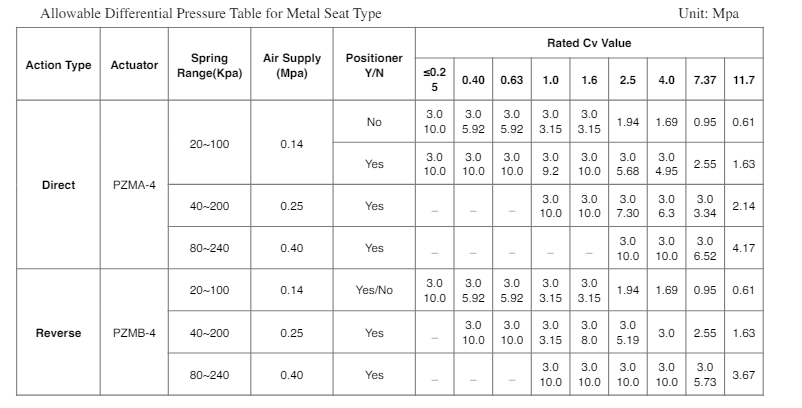

Detail Information
Product Name: Pneumatic Cage-Guided Flow Control Valve
Key Features: Small-Port, Cage-Guided, Single-Seated
Body Type: Straight-through, Cast globe valve
Actuator Type: Single-acting diaphragm actuator
Body Material: Carbon Steel, ASTM A216 WCB, ASTM A217 WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3, CF3M
Size Range: 3/4 Inch - 3 Inch, DN20-DN80
Pressure Rating: ANSI Class 125 LB - 600 LB, JIS 10K, 16K, 20K, 30K, 40K, PN16, PN40, PN64, PN100
Flow characteristics: Equal Percentage (EQ%), Linear
Inherent rangeability: 50:1, 30:1 or 20:1
End Connection:
Flanged End: FF, RF, RJ, LG
Welded End: SW, BW
Threaded End: Rc
Temperature Range: -196 to +450°C
Bonnet:
Plain bonnet (-17 to 230°C)
Extension bonnet Type1(-45 to -17°C and 230 to 566°C)
Integral cast type (-100 to -45°C)
Welded type (-196 to -100°C)
Key Features: Small-Port, Cage-Guided, Single-Seated
Body Type: Straight-through, Cast globe valve
Actuator Type: Single-acting diaphragm actuator
Body Material: Carbon Steel, ASTM A216 WCB, ASTM A217 WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3, CF3M
Size Range: 3/4 Inch - 3 Inch, DN20-DN80
Pressure Rating: ANSI Class 125 LB - 600 LB, JIS 10K, 16K, 20K, 30K, 40K, PN16, PN40, PN64, PN100
Flow characteristics: Equal Percentage (EQ%), Linear
Inherent rangeability: 50:1, 30:1 or 20:1
End Connection:
Flanged End: FF, RF, RJ, LG
Welded End: SW, BW
Threaded End: Rc
Temperature Range: -196 to +450°C
Bonnet:
Plain bonnet (-17 to 230°C)
Extension bonnet Type1(-45 to -17°C and 230 to 566°C)
Integral cast type (-100 to -45°C)
Welded type (-196 to -100°C)
