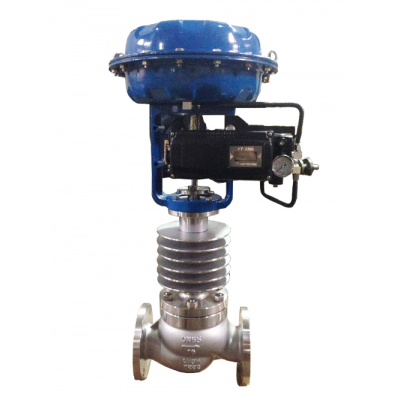

Pneumatic Cage-Guided Control Valve, 3/4-3 IN, ASTM A216 WCB

Name: Pneumatic Cage-Guided Control Valve, 3/4-3 IN, ASTM A216 WCB
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Our Pneumatic Small-Port Single-Seated Control Valves, made from ASTM A216 WCB, operate within a temperature range of -196 to +450°C. Designed for high differential pressure services where pressure exceeds 2940 kPa (30 kgf/cm²), these valves excel in heavy-duty applications prone to flashing or cavitation. Their robust guides and protective cage prevent valve body erosion. The compact valve body, with an S-shaped flow passage, ensures low pressure loss, high flow capacity, and excellent rangeability. Flow characteristics include equal percentage and linear options. Available in ANSI Class 125 LB, 150 LB, 300 LB, and 600 LB. End connections: Flanged (FF, RF, RJ, LG), Welded (SW, BW), and Threaded (Rc, NPT).

Request a quote

Detail Information

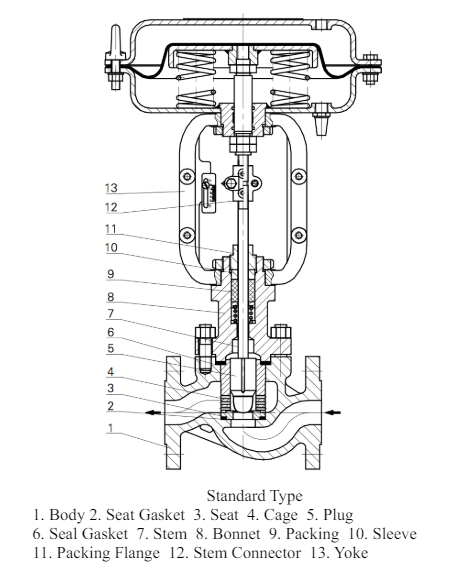

SPECIFICATIONS
Product Name: Pneumatic Single-Seated Globe Control Valve
Key Features: Pneumatic Actuator, Small-Port, Cage-Guided, Single-seated
Materials: ASTM A216 WCB, WC6, ASTM A352 LCB, ASTM A351 CF8M, CF3M, CF8, CF3
Sizes: 3/4 Inch - 3 Inch, DN20-DN80
Pressure Rating:
ANSI Class 125 LB, 150 LB, 300 LB, 600 LB
JIS 10K, 16K, 20K, 30K, 40K
PN16, PN40, PN64, PN100
Bonnet:
Plain bonnet (-17 to 230°C)

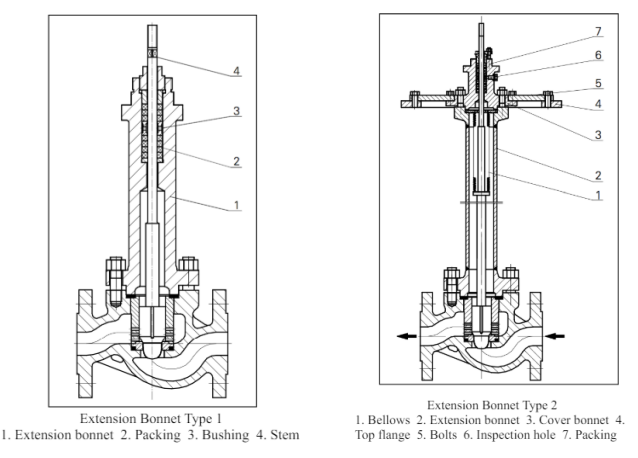

Extension bonnet (-45 to -17°C and 230 to 566°C)
Integral cast type (-100 to -45°C)
Welded type (-196 to -100°C)
Actuator Type: Single-acting diaphragm actuator
Diaphragm material: Cloth embedded nylon and ethylene propylene rubber
Flow characteristics: Equal percentage, Linear
Valve action:
FO: Air to close(Direct action actuator is combined.)
FC: Air to open(Reverse action actuator is combined.)
End connection:
Flanged End: Flat Face (FF), Raised Face (RF), Ring Joint (RJ), Large Groove (LG)
Welded End: Socket Weld (SW), Butt Weld (BW)
Threaded End: Threaded, RC, NPT
Leakage: Metal Seat, Soft Seat
Linearity:
Without positioner: Within ±5% F.S.
With positioner: Within ±1% F.S.
Ambient temperature: -30 to 70°C
Temperature Range: -196 to +450°C
