Pilot Operated Diaphragm Solenoid Valve, DN15-DN100, SS 304

Name: Pilot Operated Diaphragm Solenoid Valve, DN15-DN100, SS 304
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Discover the exceptional performance and reliability of our Diaphragm Solenoid Valve Fabricator. Engineered from Stainless Steel 304, this valve offers superior durability and corrosion resistance, ensuring longevity and minimal maintenance. Its pilot-operated design and two-port configuration provide precise control over fluid flow, enhancing operational efficiency. With a pressure rating of PN25 (Class 150 LB) and available in sizes from 1/2 inch to 4 inches (DN15 to DN100), it accommodates diverse industrial applications seamlessly. The flange ends facilitate easy installation and secure connection, minimizing downtime during setup or maintenance. Trust our valve to deliver consistent, dependable performance, making it an essential component in fluid handling systems where reliability and longevity are paramount.

Request a quote

Detail Information

SPECIFICATIONS
Product Name: Pilot Operated Diaphragm Solenoid Control Valve
Function: Normally Closed or Opened

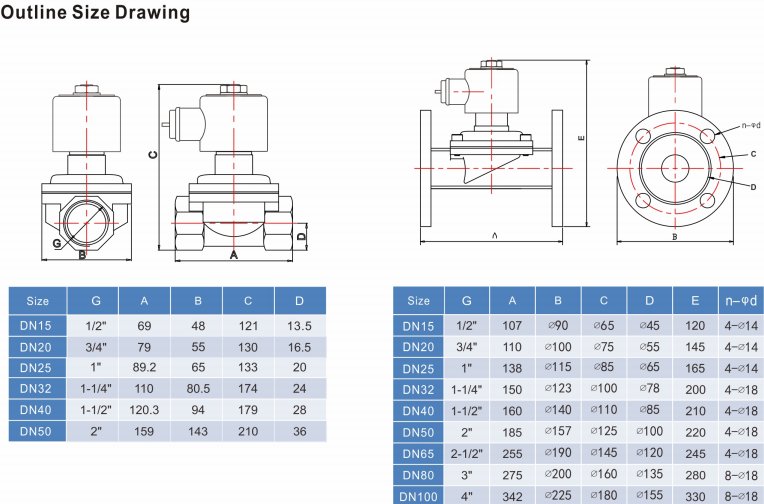

Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure Rating: PN25, Class 150 LB
Body Material: Stainless Steel, SS 304
Port Thread: BSPP, BSPT, NPT, FLANGE
Temperature of Media: -10°C to 180°C, -10°C to 220°C
Suitable Media: Stem, Hot Water, Civil Gas, Air Oil.

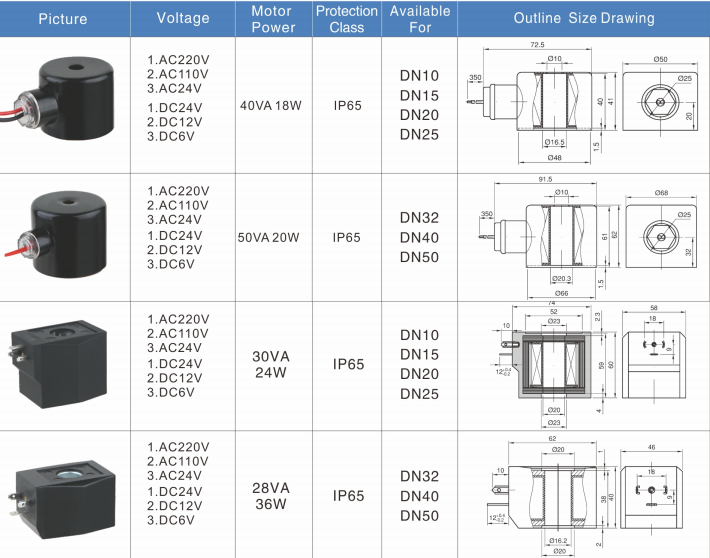

Voltage: DC-12V, 24V, 36V, AC-24V, 120V, 240V/60Hz, 110V, 220V/50Hz
Sealing Material: PTFE, VITON
