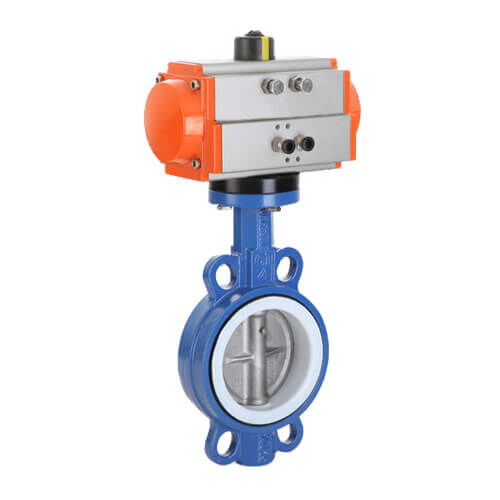

PFA Lined Butterfly Control Valve, PN6-PN16, WCB, 2-24 Inch
Key Specifications / Features
Discover our PTFE lined butterfly control valves, crafted from ASTM A216 WCB, available in sizes ranging from 2 to 24 inches (DN50-DN600). With pressure ratings from Class 125 to 150 LB (PN6-PN16), these valves provide exceptional corrosion resistance and reliable performance. Engineered to minimize seat leakage to ANSI B16.104 Class VI standards, they feature flange and wafer ends, ensuring versatile installation options for various industrial applications.
Request a quote
Detail Information
Product Name: PFA Lined Butterfly Control Valve
Body Material: ASTM A216 WCB
Seat Material: PTFE, F46, PFA
Seat Leakage: ANSI B16.104 CLASS VI
Trim: Central Lining
Size Range: 2 Inch - 24 Inch, DN50-DN600
Pressure Rating: PN6-PN16, 0.6-1.6 Mpa, Class 125 LB - 150 LB
Flow Characteristic: Approximate Equal Percentage
Rangeability: 30:1
Temperature Range: -45℃ to 250℃
Connection: Flange, Wafer
Body Material: ASTM A216 WCB
Seat Material: PTFE, F46, PFA
Seat Leakage: ANSI B16.104 CLASS VI
Trim: Central Lining
Size Range: 2 Inch - 24 Inch, DN50-DN600
Pressure Rating: PN6-PN16, 0.6-1.6 Mpa, Class 125 LB - 150 LB
Flow Characteristic: Approximate Equal Percentage
Rangeability: 30:1
Temperature Range: -45℃ to 250℃
Connection: Flange, Wafer
