On/Off Electric Butterfly Control Valve, DN50-DN600, 150 LB
Key Specifications / Features
Introducing our On/Off Electric Butterfly Control Valve, boasting a Large Size Range from 2 to 24 inches (DN50-DN600) and compatible with PN10, PN16, and 150 LB pressure ratings. Crafted for Energy Conservation, it ensures efficient fluid management. With versatile Wafer and Lug Ends, installation is simplified. Experience precise control and dependable performance across diverse applications. Ideal for industries prioritizing reliability and efficiency in fluid control systems.
Request a quote
Detail Information
SPECIFICATIONS
Product Name: On/Off Electric Butterfly Control Valve
Features: Large Size Range, Energy Conservation, Long Service Life, etc
Size Range: 2 Inch - 24 Inch, DN50-DN600
Pressure Rating: PN10, PN16, Class 150 LB
Material: Stainless Steel, Cast Iron
Temperature Of Media: -10°C to 180°C (14°F to 356°F)
Voltage: DC-12V, 24V, AC-24V, 110V, 220V, 380V
Voltage Tolerance: ±10%
Medium: Water, Oil, Air, Gas, etc
End Connection: Wafer, Lug
Product Name: On/Off Electric Butterfly Control Valve
Features: Large Size Range, Energy Conservation, Long Service Life, etc
Size Range: 2 Inch - 24 Inch, DN50-DN600
Pressure Rating: PN10, PN16, Class 150 LB
Material: Stainless Steel, Cast Iron
Temperature Of Media: -10°C to 180°C (14°F to 356°F)
Voltage: DC-12V, 24V, AC-24V, 110V, 220V, 380V
Voltage Tolerance: ±10%
Medium: Water, Oil, Air, Gas, etc
End Connection: Wafer, Lug

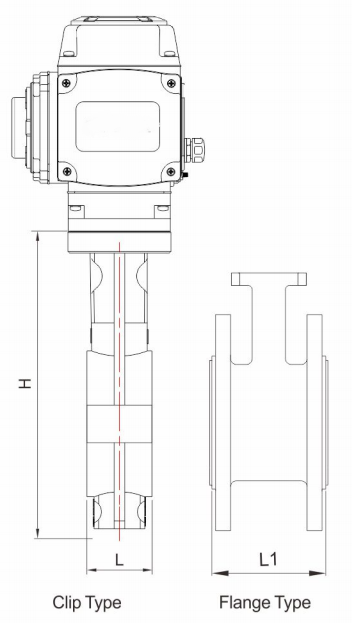

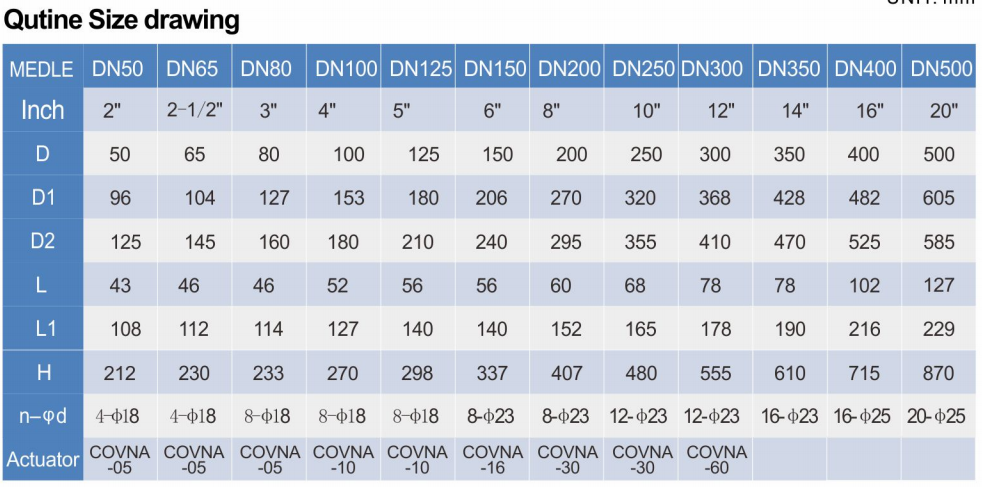

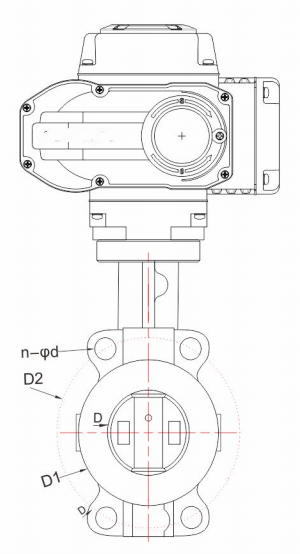

Drawing of Butterfly Control Valve
