Natural Gas Pressure Reducing Regulators, 4 Inch, 125 LB

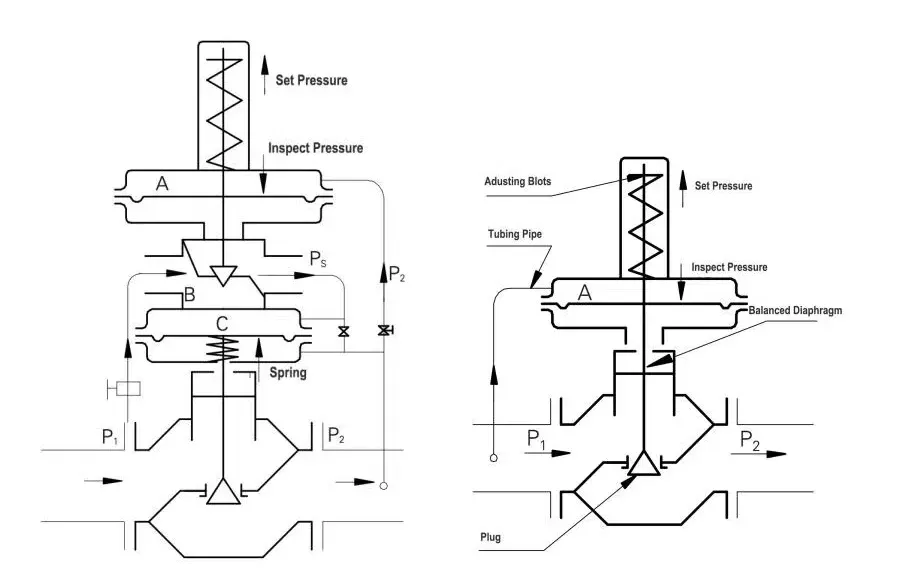

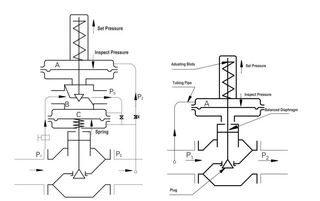

The pressure regulating valve, a crucial nitrogen sealing apparatus, consists of a control valve, actuator, pressure spring, pilot, pulse pipe, and ancillary components. Its primary function is to uphold gas pressure, typically nitrogen, atop a vessel, thereby averting material exposure to air, preventing volatilization and oxidation, and ensuring vessel integrity. Especially adept for safeguarding gas containment systems in sizable storage tanks, this product boasts energy efficiency, swift responsiveness, dependable operation, and user-friendly maintenance. Its versatility extends across various sectors including petroleum, chemical industries, among others, where it finds widespread application.

SPECIFICATIONS
Product Name: Natural Gas Pressure Reducing Regulators
Size: DN20-DN100, 3/4 Inch - 4 Inch
Pressure Rating: PN16-PN64, Class 150 LB - 300 LB
Flange Standard: JB/T 79.1-94. 79.2-94, ANSI B16
Body Material: ASTM A216 WCB, ASTM A217 WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3M, CF3, Cast iron, cast steel, stainless steel
Stem material: Stainless steel
Plug type: Single seated, double-seat, Cage guided
Temperature Range: -50 to +250°C
Working temperature: ≤ 80°C
Flow characteristic: Quick open
Pressure balancing: Stainless steel bellows
Actuator
Pressure Setting Range: 0.4-0.5, 5-10, 9-14, 13-19, 18-24, 22-28, 27-33, 36-44, 42-51, 49-58, 56-66
Diaphragm Cover Material: Teflon coated A3, A4 steel sheet
Diaphragm Material: NBR, EPR, fluorine rubber, oil-resistant rubber
