Motorized Gate Control Valve, 2-16 IN, 150-2500 LB, API 600
Key Specifications / Features
As a leading Motorized Gate Control Valve Fabricator, we excel in delivering precision-engineered solutions for seamless flow control. Our valves feature robust Electric Actuators, meeting API 600 and ASME B16.34 standards, ensuring reliability and compliance. Available in sizes DN50-DN600 (2-24 inches) and pressure ratings from Class 150 to 2500 LB, they offer versatility for various applications. Crafted from premium Stainless Steel and Cast Steel materials, they guarantee durability and corrosion resistance, providing long-term performance. With easy-to-install flanged connections, our valves streamline operations and enhance efficiency, making them the preferred choice for demanding industrial environments.
Detail Information
SPECIFICATIONS
Product Name: Motorized Gate Control Valve

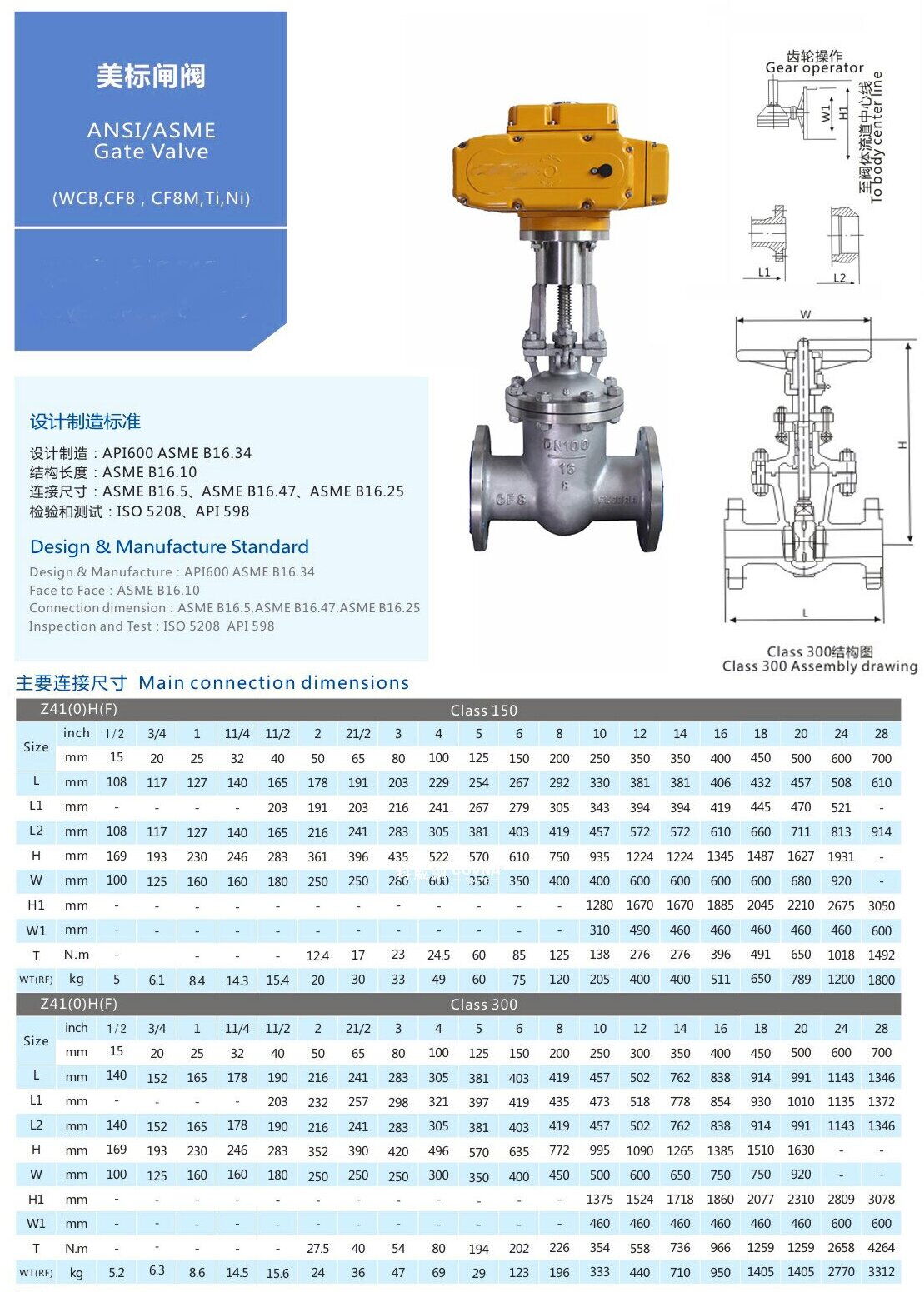

Design Standard: API 600, ASME B16.34
Size Range: 2 Inch - 16 Inch, DN50-DN400
Pressure Rating: Class 150 LB - 2500 LB, PN20-PN100
Body Material: Stainless Steel, Cast Steel, ASTM A216 WCB
Disc Material: Stainless Steel
Sealing Material: PTFE, EPDM
End Connection: Flange, Butt Welding
Applicable Media: Water, Air, Gas, Petroleum, Oil, Liquid
Power Supply:
Conventional: Single Phase 220v, Three-Phase 380v
Special: three-phase 400v, 415v, 660v(50Hz, 60Hz)
Working Environment:
Ambient temperature: -20°C to + 60°C (special temperature environment can be customized)
Relative humidity: 95% (at 25 ° C)
Protection level: Outdoor type and explosion-proof type are IP55 (IP65, IP67, IP68 can be provided for special order).
Product Name: Motorized Gate Control Valve
Design Standard: API 600, ASME B16.34
Size Range: 2 Inch - 16 Inch, DN50-DN400
Pressure Rating: Class 150 LB - 2500 LB, PN20-PN100
Body Material: Stainless Steel, Cast Steel, ASTM A216 WCB
Disc Material: Stainless Steel
Sealing Material: PTFE, EPDM
End Connection: Flange, Butt Welding
Applicable Media: Water, Air, Gas, Petroleum, Oil, Liquid
Power Supply:
Conventional: Single Phase 220v, Three-Phase 380v
Special: three-phase 400v, 415v, 660v(50Hz, 60Hz)
Working Environment:
Ambient temperature: -20°C to + 60°C (special temperature environment can be customized)
Relative humidity: 95% (at 25 ° C)
Protection level: Outdoor type and explosion-proof type are IP55 (IP65, IP67, IP68 can be provided for special order).
