Motorized Ball Control Valve, 1/2-2 Inch, PN100-PN400

Name: Motorized Ball Control Valve, 1/2-2 Inch, PN100-PN400
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

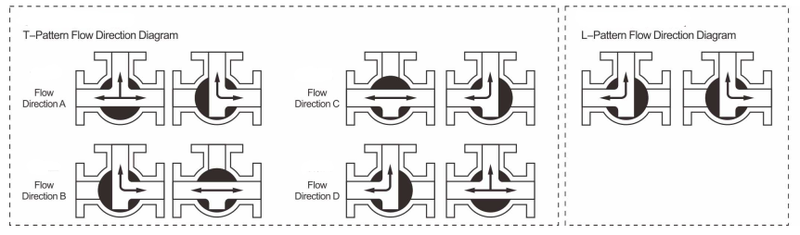

Our Motorized Ball Control Valve Fabricator offers precise on/off and regulating functionality with its floating ball core design. Available in sizes ranging from 1/2 to 2 inches (DN15-DN50) and pressure ratings from PN100 to PN400, it’s constructed from durable stainless steel and features threaded connections for easy installation. The High Pressure Motorized Ball Valve (HPMV) is a versatile three-way valve with two common ports and one controllable port, making it suitable for various fluid control applications. It finds extensive use in industries requiring ultra-high pressure handling, such as high-pressure testing machines, pneumatic and hydraulic pumps, and deep-sea detectors. With its robust construction and precise control capabilities, this valve ensures reliable performance even in the most demanding environments.

Request a quote

Detail Information

SPECIFICATIONS
Product Name: Motorized Ball Control Valve
Design Standard: ISO, DIN, IDF, SMS, 3A
Key Features: On/Off, Regulating Actuator, 3 Way, High Pressure

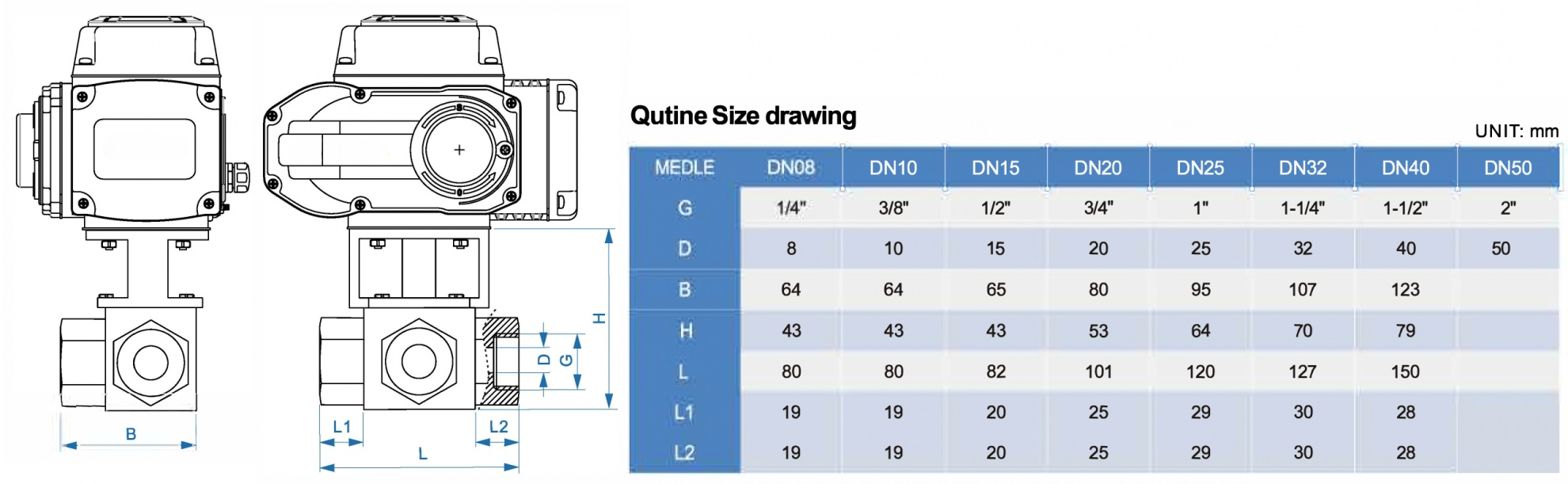

Size Range: 1/2 Inch - 2 Inch, DN15-DN50
Pressure Rating: PN100-PN400
Body Material: Stainless Steel
Stem Material: Stainless Steel
Sealing Material: PTFE, PPL
Disc Material: SS 304, SS 316, SS 316L
End Connection: Thread
Suitable Medium: Water, Oil, Air, Gas, etc
Voltage optional: 12V, 24V DC; 110V, 220V, 380V AC
Structure: Floating Ball Core
