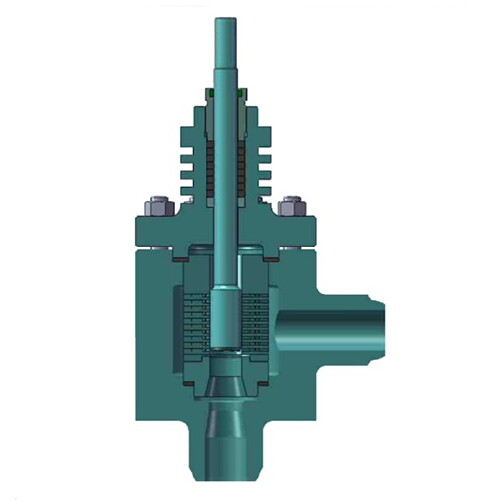

Labyrinth Trim Angle Control Valve, 1-1/2-12 IN, 150-2500 LB
Model Number: CNCV-240426-BCV-02
Key Specifications / Features
Explore our balanced labyrinth control valves, designed for diverse industrial applications. Available in sizes from 1-1/2 to 12 inches and pressure ratings up to Class 2500 LB, they deliver reliable performance. Crafted from ASTM A216 WCB, WCC, A217 WC6, WC9, and ASTM A105 materials, they ensure durability. With ANSI B16.104 Class IV or V seat leakage classification, these valves offer tight shutoff and precise control for critical processes.
Detail Information
Product Name: Labyrinth Trim Angle Control Valve
Body Material: ASTM A216 WCB, WCC, A217 WC6, WC9, ASTM A105
Trim: Cage Guided Balanced Trim, Labyrinth Path Cage, Double or Single Seat with Balanced Ring
Size Range: 1-1/2 - 12 Inch, DN40-DN300
Pressure Rating: Class 150 - 2500 LB, PN16 - PN420, 1.6 - 42.0 Mpa
Connection: Flange, Welding
Rangeability: 30:1
Seat Leakage: ANSI B16.104 CLASS IV (Metal Seat without Seal Ring), CLASS V (Metal Seat with Seal Ring)
Temperature Range: -196℃ to 538℃
Flow Characteristic: Equal Percentage, Linear
Body Material: ASTM A216 WCB, WCC, A217 WC6, WC9, ASTM A105
Trim: Cage Guided Balanced Trim, Labyrinth Path Cage, Double or Single Seat with Balanced Ring
Size Range: 1-1/2 - 12 Inch, DN40-DN300
Pressure Rating: Class 150 - 2500 LB, PN16 - PN420, 1.6 - 42.0 Mpa
Connection: Flange, Welding
Rangeability: 30:1
Seat Leakage: ANSI B16.104 CLASS IV (Metal Seat without Seal Ring), CLASS V (Metal Seat with Seal Ring)
Temperature Range: -196℃ to 538℃
Flow Characteristic: Equal Percentage, Linear
