IEC 60534-2006 Angle Control Valve, 1/2-12 IN, 150-2500 LB
Key Specifications / Features

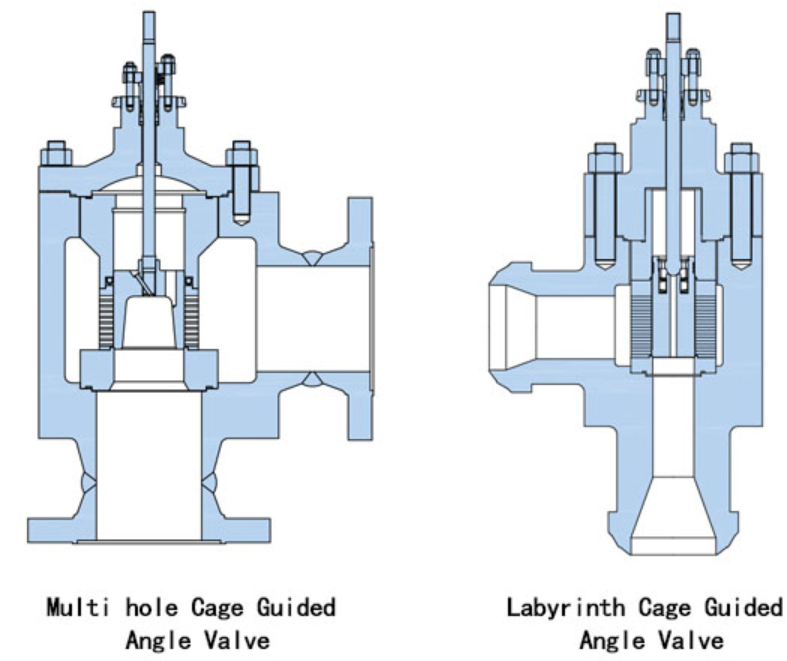

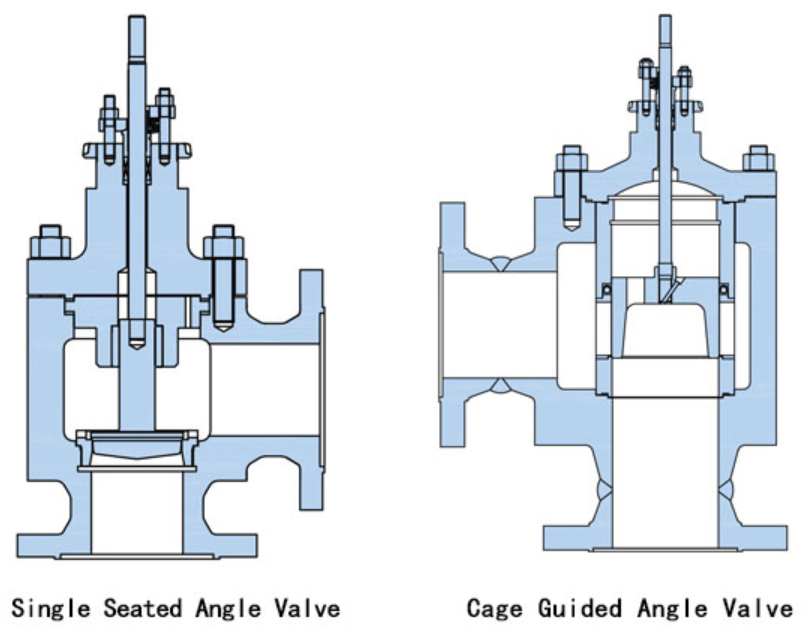

Our angle control valve, compliant with IEC 60534-2006 standards, offers superior performance and reliability. Designed with a single-seated, cage-guided mechanism, it ensures precise flow control and minimal leakage. Constructed from durable carbon steel, this valve is built to withstand harsh conditions and ensure longevity. Available in sizes from 1/2 to 12 inches and pressure ratings from Class 150 to 2500 LB, it suits a wide range of applications. The flanged design allows for easy installation and secure connections. Choose our angle control valve for robust construction, reliable performance, and adherence to international quality standards.
Request a quote
Detail Information
SPECIFICATIONS
Product Name: Angle Control Valve
Design & Manufacture Standard: IEC 60534-2006
Test Standard: IEC 60534-4
Size Range: 1/2 Inch - 12 Inch, DN15-DN300
Pressure Rating: Class 150 LB - 2500 LB, PN16-PN420
Material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
End Connection: Flanged (RF, RTJ), Butt Weld, Socket Weld.
Working Temperature: 196°C to 550°C
Seat Leakage: ANSI Ⅳ(0.01%) or Ⅵ(bubble-tight)
Bonnet Type: Standard, Fin-Extension, Long-Extension
Product Name: Angle Control Valve
Design & Manufacture Standard: IEC 60534-2006
Test Standard: IEC 60534-4
Size Range: 1/2 Inch - 12 Inch, DN15-DN300
Pressure Rating: Class 150 LB - 2500 LB, PN16-PN420
Material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
End Connection: Flanged (RF, RTJ), Butt Weld, Socket Weld.
Working Temperature: 196°C to 550°C
Seat Leakage: ANSI Ⅳ(0.01%) or Ⅵ(bubble-tight)
Bonnet Type: Standard, Fin-Extension, Long-Extension
