Hydraulic Non-Slam Check Control Valve, DN100, PN10, PN16
Key Specifications / Features
Our no-slamming hydraulic check valve features a slow-closing mechanism and automatic hydraulic operation, ensuring optimal opening and closing speeds. Constructed from durable ductile cast iron, cast steel, and stainless steel, it is available in sizes DN50 to DN800 (2 inches to 32 inches) and supports pressure ratings of PN10, PN16, and PN25 with flanged end connections. Designed to prevent water hammer by avoiding valve slamming during closure, it maintains a medium temperature range of 0°C to 80°C. The valve system includes a main valve, check valve, needle valve, ball valve, microform filter, and pressure gauge, providing efficient and reliable performance for various applications.
Detail Information
SPECIFICATIONS
Product Name: Hydraulic Non-Slam Check Control Valve
Features: Slow-Closing check valve, Hydraulic Automatic Operation
Body Material: Ductile Cast Iron, Cast Steel, Stainless Steel
Size: DN50-DN800, 2 Inch - 32 Inch
Pressure Rating: PN10, PN16, PN25
Connection: Flanged Ends
Medium Temperature: 0°C to 80°C
Hydraulic Non-Slam Check Control Valve
Product Name: Hydraulic Non-Slam Check Control Valve
Features: Slow-Closing check valve, Hydraulic Automatic Operation
Body Material: Ductile Cast Iron, Cast Steel, Stainless Steel
Size: DN50-DN800, 2 Inch - 32 Inch
Pressure Rating: PN10, PN16, PN25
Connection: Flanged Ends
Medium Temperature: 0°C to 80°C

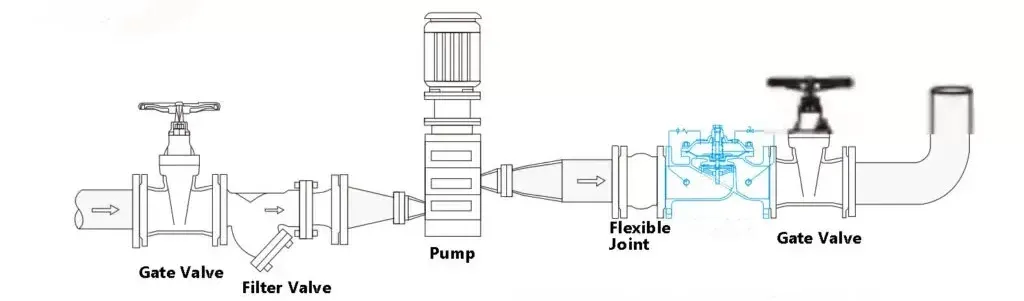

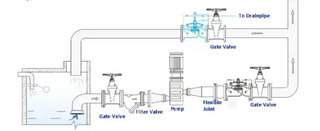

Installation and Adjustment Hydraulic Check Valve
Hydraulic Non-Slam Check Control Valve
