Food Grade Pneumatic Butterfly Valve, DN15-DN100, PN10-PN16
Key Specifications / Features
Introducing our Food Grade Pneumatic Butterfly Valve, a high-quality valve designed for a wide range of applications. This valve features a spring return mechanism and is built to meet GB, ANSI, JIS, and DIN standards. Available in sizes ranging from 1/2 inch to 4 inches (DN15-DN100) and with pressure ratings of PN10-PN16 and 150 LB, this valve offers exceptional versatility. With flange end connections, installation is a breeze. Constructed using food-grade materials, this butterfly valve ensures safe and efficient performance in food and beverage processing applications, making it an ideal choice for a variety of industrial processes.
Detail Information
SPECIFICATIONS
Product Name: Food Grade Pneumatic Butterfly Control Valve
Key Features: Spring Return, Long Service Life, Eco-Friendly, Easy Installation, etc.
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure Rating: PN10-PN16, Class 150 LB
Body Material: SS 316, SS 316L, SS 304
Actuator Type: Spring Return(Single Acting) and Double Acting
Rotation: Quarter-turn
Applicable Standard: GB, ANSI, JIS, DIN
Suitable Medium: Water, Oil, Air, Gas, etc.
Product Name: Food Grade Pneumatic Butterfly Control Valve
Key Features: Spring Return, Long Service Life, Eco-Friendly, Easy Installation, etc.
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure Rating: PN10-PN16, Class 150 LB
Body Material: SS 316, SS 316L, SS 304
Actuator Type: Spring Return(Single Acting) and Double Acting
Rotation: Quarter-turn
Applicable Standard: GB, ANSI, JIS, DIN
Suitable Medium: Water, Oil, Air, Gas, etc.

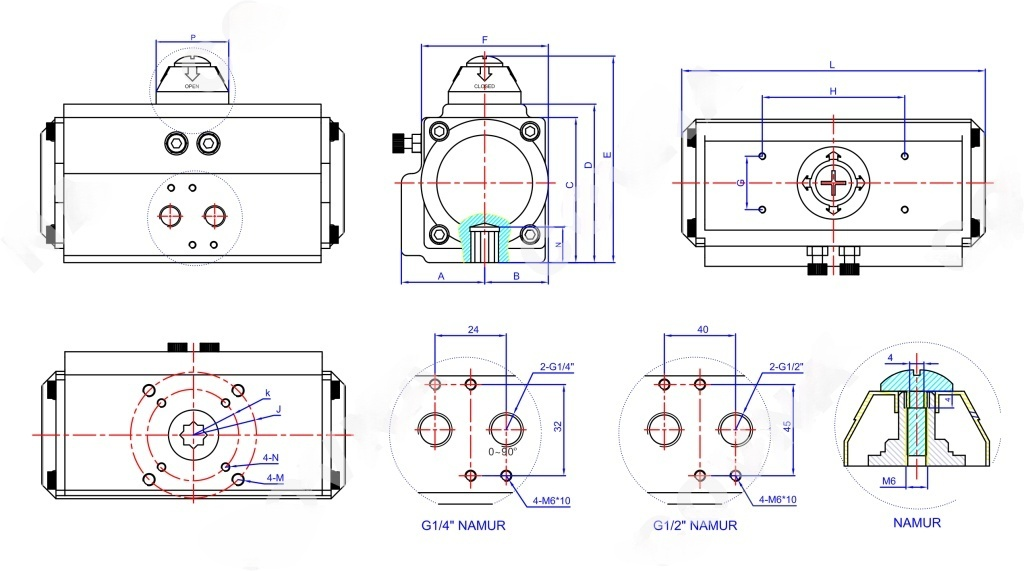

Drawing of Pneumatic Butterfly Control Valve
