Electric Lugged Butterfly Control Valve, 2-40 IN, 150,300 LB
Key Specifications / Features
Introducing our Electric Lug Butterfly Valve: meticulously crafted for precise fluid control with electric actuation, guaranteeing accurate regulation from 2 to 40 inches. Operable remotely, it boosts convenience and safety, vital in challenging environments. Compatible with automation systems, seamlessly integrating into larger setups for heightened operational efficiency. Its rapid response swiftly adapts to changing conditions, ensuring seamless performance. Made from durable cast iron, its low-maintenance design minimizes downtime and costs. Versatile and customizable, it caters to diverse applications. Experience efficient fluid flow control and energy optimization with our Electric Lug Butterfly Valve, available in Class 150 LB to 300 LB range.
Detail Information
SPECIFICATIONS
Product Name: Electric Lugged Butterfly Control Valve
Size Range: 2 Inch - 40 Inch, DN50-DN1000
Pressure Rating: Class 150 LB - 300 LB
Body Material: Cast Iron, Ductile Iron, Aluminum Stainless Steel, ASTM A351 CF8, CF8M, CF3, CF3M
Disc: Stainless Steel, ASTM A351 CF3M, CF3, CF8M, Nylon Coated Ductile Iron, Aluminum Bronze, Double Stainless
Seat: NBR (Nitrile Butadiene Rubber), EPDM (Ethylene Propylene Diene Monomer), Viton (Fluoroelastomer)
End Connection: Wafer, Lug
Medium: Gas, Water and Oil, etc
Electric Actuator: ON/OFF type, Adjustable type
Control signal: 4-20 mADC, 0-5 VDC, 0-10 VDC
Power: 12 VDC, 24 VAC, 24 VDC, 220 VAC, 120 VAC, 380 VAC 50/60 Hz ±10%
Product Name: Electric Lugged Butterfly Control Valve
Size Range: 2 Inch - 40 Inch, DN50-DN1000
Pressure Rating: Class 150 LB - 300 LB
Body Material: Cast Iron, Ductile Iron, Aluminum Stainless Steel, ASTM A351 CF8, CF8M, CF3, CF3M
Disc: Stainless Steel, ASTM A351 CF3M, CF3, CF8M, Nylon Coated Ductile Iron, Aluminum Bronze, Double Stainless
Seat: NBR (Nitrile Butadiene Rubber), EPDM (Ethylene Propylene Diene Monomer), Viton (Fluoroelastomer)
End Connection: Wafer, Lug
Medium: Gas, Water and Oil, etc
Electric Actuator: ON/OFF type, Adjustable type
Control signal: 4-20 mADC, 0-5 VDC, 0-10 VDC
Power: 12 VDC, 24 VAC, 24 VDC, 220 VAC, 120 VAC, 380 VAC 50/60 Hz ±10%

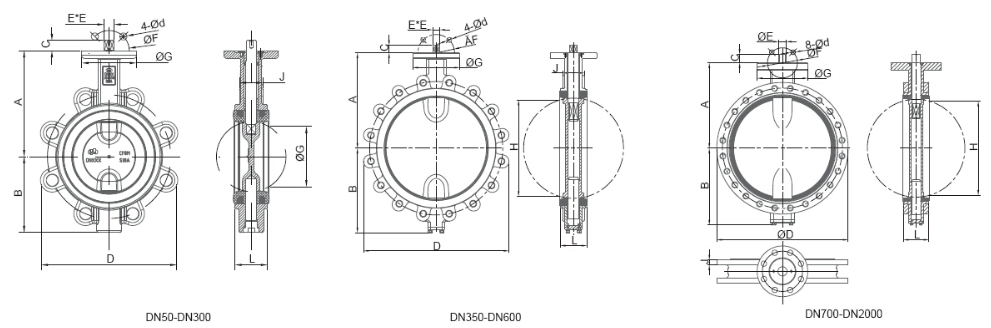

Drawing of Butterfly Control Valve
