Electric Globe Control Valve, A216 WCC, 2-1/2 Inch, 300 LB
Key Specifications / Features
Adhering to stringent design standards including ANSI/ISA 75.01.01 and ASME B16.34, with Face to Face Standard ASME B16.10 and Flange Standard ASME B16.5, this Electric Control Valve is crafted from ASTM A216 WCC, ensuring robustness and reliability. Available in 2.5 inches (DN65), with pressure ratings ranging from 150 to 2500 LB (PN20-PN420), it caters to diverse industrial needs. Electric control valves are pivotal in industrial automation, finding extensive application in oil, chemicals, power generation, and pharmaceutical sectors. Our expert guidance on model parameters and operational conditions ensures optimal selection and utilization, facilitating efficient and tailored solutions for your requirements.
Detail Information
SPECIFICATIONS
Product Name: Electric Globe Control Valve
Size Ranges: 1 Inch - 24 Inch, DN25-DN600
Pressure Rating: Class 150 - 600 LB, PN20-PN100
Design Standard: ANSI/ISA 75.01.01 & ASME B16.34
Body Materials: ASTM A216 WCC, WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3M, CF3
Temperature Range: -196 to +550°C
Flow Characteristics: Equal Percentage, Linear
Face to Face Standard: ASME B16.10
Flange Standard: ASME B16.5
Electric Actuator Basics:
Power Supply: Options DC24V, AC220V, AC380V.
Input Control Signal: Typically 4-20MA or DC1-5V.
Feedback Control Signal: Usually DC4-20MA (load resistance under 500 ohms).
Product Name: Electric Globe Control Valve
Size Ranges: 1 Inch - 24 Inch, DN25-DN600
Pressure Rating: Class 150 - 600 LB, PN20-PN100
Design Standard: ANSI/ISA 75.01.01 & ASME B16.34
Body Materials: ASTM A216 WCC, WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3M, CF3
Temperature Range: -196 to +550°C
Flow Characteristics: Equal Percentage, Linear
Face to Face Standard: ASME B16.10
Flange Standard: ASME B16.5
Electric Actuator Basics:
Power Supply: Options DC24V, AC220V, AC380V.
Input Control Signal: Typically 4-20MA or DC1-5V.
Feedback Control Signal: Usually DC4-20MA (load resistance under 500 ohms).

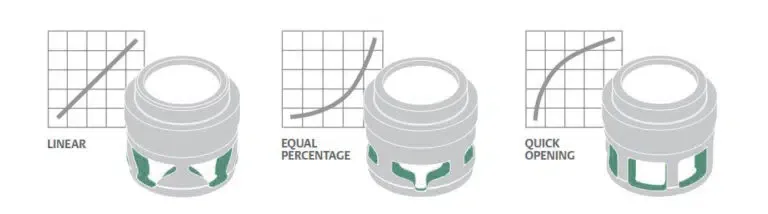

Flow Characteristics of Control Valve Pressure
Characteristic Curves Of Control Valve
Characteristic Curves Of Control Valve
