Electric Butterfly Control Valve, Explosion Proof, 2-32 IN

Name: Electric Butterfly Control Valve, Explosion Proof, 2-32 IN
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Discover the Electric Butterfly Control Valve, offering explosion-proof reliability and equipped with an On/Off actuator for seamless operation. Constructed from robust materials such as Cast Iron or Stainless Steel, including ASTM A216 WCB, these valves ensure durability and performance. Available in sizes ranging from 2 to 32 inches (DN50-DN800) with a wafer end design, they provide versatility for various applications. Benefit from enhanced safety with the explosion-proof features, and effortless control with the On/Off actuator. Ideal for industries that require dependable fluid management solutions, these valves guarantee reliability and efficiency in diverse operational environments.

Request a quote

Detail Information

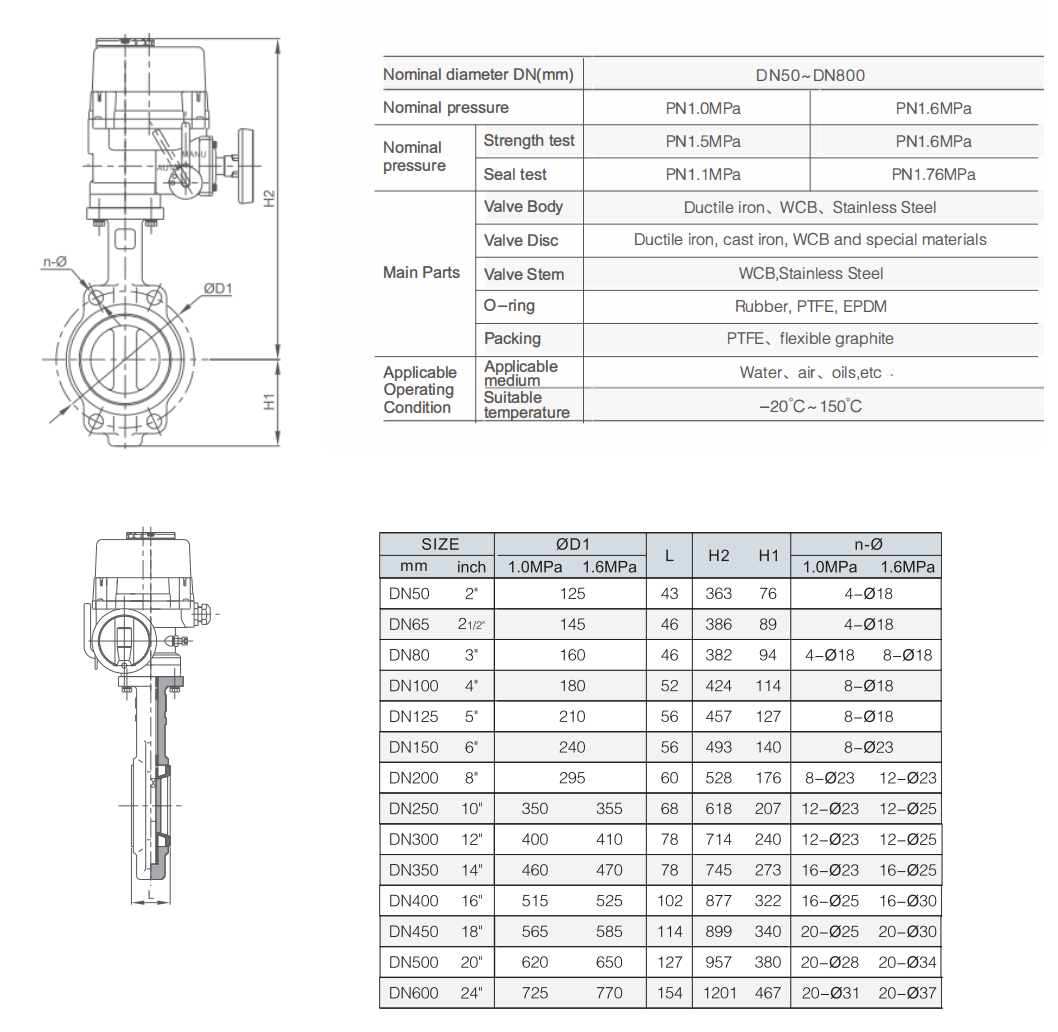

SPECIFICATIONS
Product Name: Electric Butterfly Control Valve
Key Features: Explosion Proof, On/Off Actuator
Body Material: Cast Iron, Stainless Steel, ASTM A216 WCB
Size Range: 2 Inch - 32 Inch, DN50-DN800
Pressure Rating: PN10, PN16, Class 150 LB
Temperature Of Media: -20°C to 150°C (-4°F to 302°F)
Suitable Media: Air, water, steam, oil, gas, etc
Voltage: DC-12V, 24V, AC-24V, 120V, 240V/60 Hz, 110V, 220V/50 Hz
Voltage Tolerance: ±10%
End Connection: Wafer
Structure: Midline Structure A type
