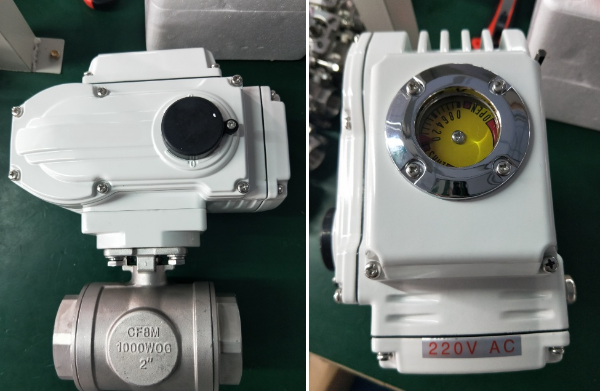

Electric Ball Control Valve, Female Thread, PN16, 2-16 Inch

Our Electric Ball Control Valve Operator offers reliable on/off control with a floating ball design, accommodating sizes from 2 to 16 inches (DN50-DN400). Rated at PN16 and Class 150 LB, this valve is constructed from durable stainless steel (SS 304) with female thread ends for easy installation. Ideal for various applications, it ensures consistent performance and longevity. Benefits include excellent corrosion resistance, robust construction, and versatile use for water, gas, steam, oil, and more. Enjoy cost savings and reduced maintenance with this high-quality, efficient valve solution.

SPECIFICATIONS
Product Name: Electric Ball Control Valve
Size Range: 2 Inch - 16 Inch, DN50-DN400
Pressure Rating: PN16, Class 150 LB
Body Material: Stainless Steel, SS 304, SS 316, SS 316L, Cast Iron
Seating Material:
PTFE: -20°C to 180°C
PPL: -20°C to 150°C
End Connection: Female Thread
Structure: Floating ball core
Applicable Media: Control of Water, Air, Gas, Oil, Liquid, Steam
Regulation Type: Input & Output Signal: DC 4-20mA, DC 0-10V, DC 1-5V
Voltage Optional: AC110-240V 380V 50/60HZ: DC12V, DC24V, Special Voltage Can be Customized
Protection Class: IP65, Explosion Proof Construction Are Available: EX ll BT4

Features:
1. User-Friendly Design: The two-piece ball valve features a large diameter for easy and convenient switching.
2. High Quality: Ensures consistent product quality with a low defective rate.
3. Durable and Reliable: The sealing surface and sphere remain in a closed state, minimizing erosion from media.
4. Cost-Effective: Offers significant cost savings compared to competitors.
5. Robust Construction: Provides excellent strength and toughness, allowing for easy installation.
6. Versatile Application: Suitable for use with water, gas, steam, oil, nitric acid, acetic acid, and various other media.
7. Affordable Solution: A budget-friendly actuator valve that is cost-efficient for your business needs.
