Eccentric Rotary Control Valve, DN25-DN450, PN10-PN40

Introducing our Seated Eccentric Plug Control Valve, equipped with an eccentric rotary plug, engineered to efficiently handle highly viscous or abrasive media. This valve, available in sizes ranging from DN25 to DN450 (1 inch to 18 inches), features robust construction using Carbon Steel GP240 GH(1.0619) and ASTM A216 WCB materials, ensuring durability and reliability. With pressure ratings spanning from PN10 to PN40 and Class 150 LB to 300 LB, this valve offers precise flow control in a wide range of applications and operating conditions.

SPECIFICATIONS
Product Name: Eccentric Rotary Control Valve
Key Feature: Valve with Eccentric Plug
Sizes: DN25-DN450, 1 Inch - 18 Inch
Body material: Carbon Steel GP240GH(1.0619), ASTM A216 WCB, Stainless Steel GX5CrNiMo 19-11-2 (1.4408)
Plug and seat material: Stainless Steel
Pressure Rating: PN10-PN40, Class 150 LB - 300 LB
Operating temperature range: -46°C to + 450°C
Flow characteristics: linear
Flow coefficient Kvs: 3 – 3500 [m3.h-1]
Leakage class (IEC 60534-4): class IV, class VI
End Connection: Flanged, Sandwich

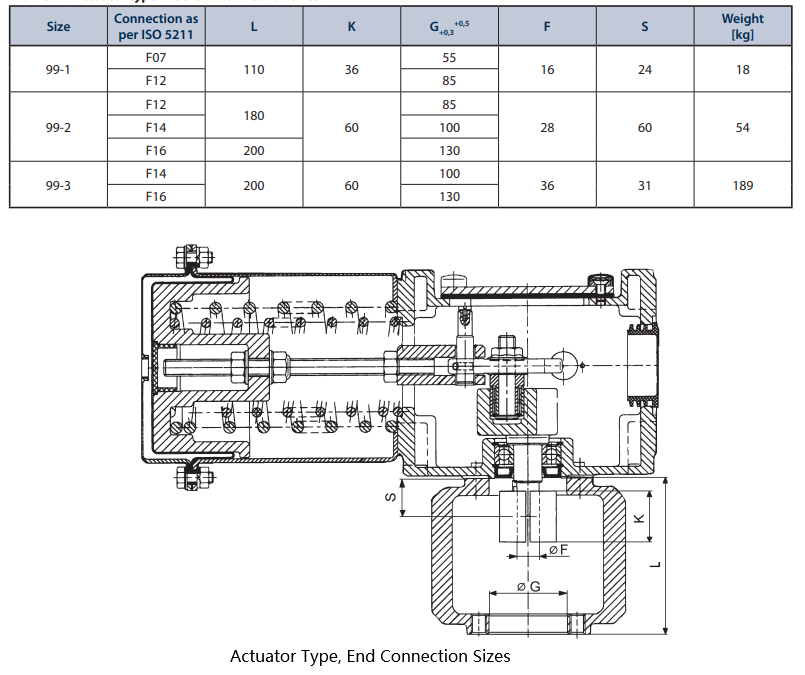

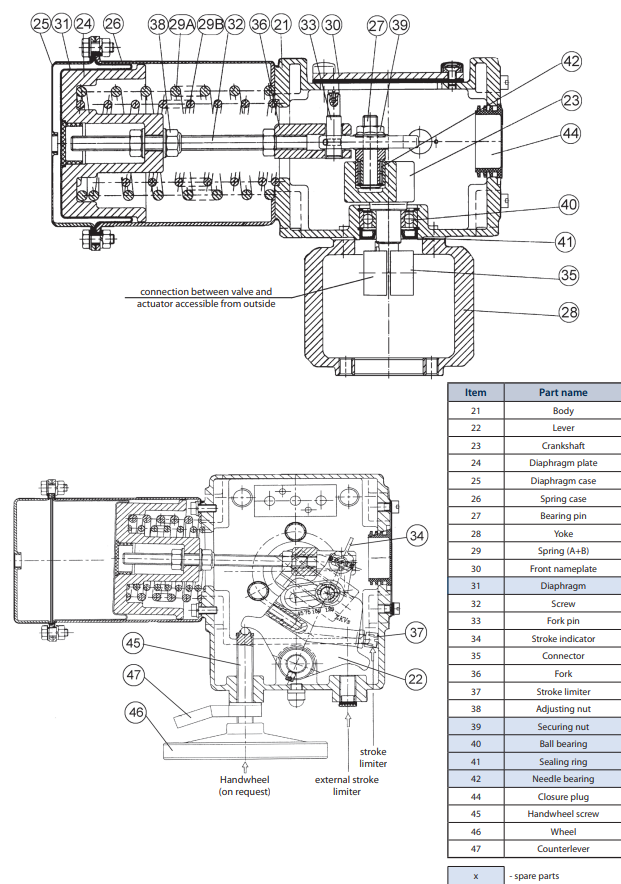

Type of Actuator: pneumatic diaphragm or piston (with handwheel), electric, electro-hydraulic, hydraulic

Features:

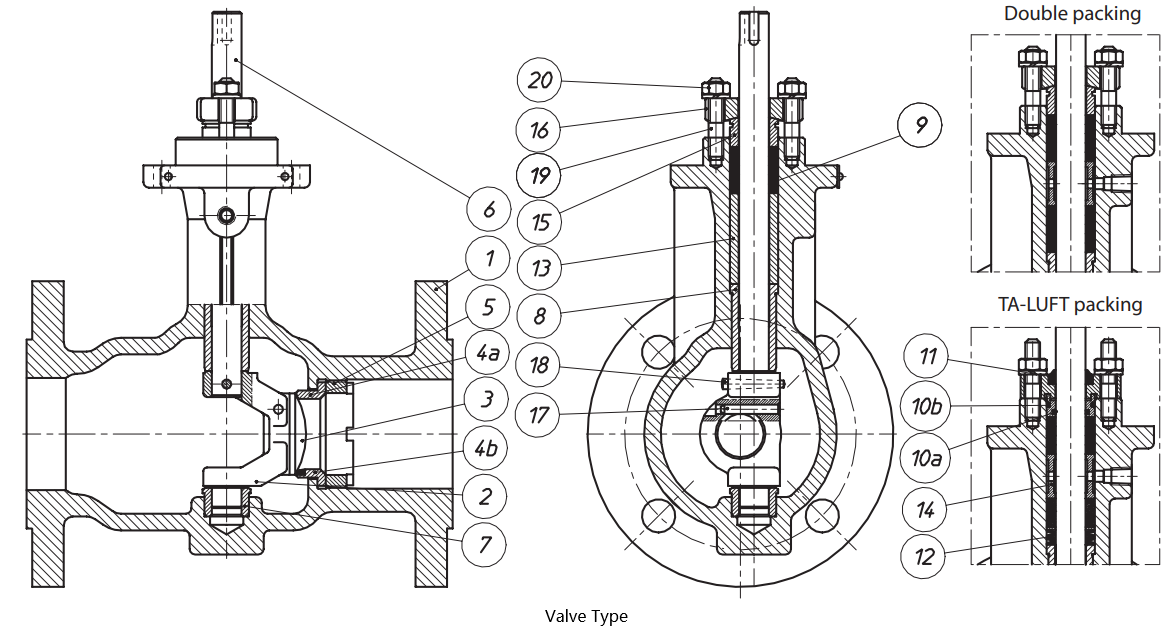

1. One-Piece Valve Body: Cast with the bonnet, eliminating static or dynamic sealing except for the shaft sealing chamber.
2. No Detachment Effect: Ensures secure engagement between plug and seat.
3. Adjustable Kvs: Change Kvs values without replacing the plug or seat.
4. Easy Maintenance: Rotary, symmetrical plug can be easily replaced.
5. Elongated Bonnet: Allows for double shaft sealing, meeting "low emission" standards equivalent to TA-LUFT conditions.
6. Consistent Kvs Coefficients: Identical for both "hard" (metal-metal) and "soft" seats.
7. High Leak Resistance: Leakage class less than 0.01% Kvs for "hard" seats.
8. Uniform Flow Direction: Same for both "hard" and "soft" seats.
9. Accessible Valve-Actuator Connection: Can be rotated in 90° increments for flexibility.

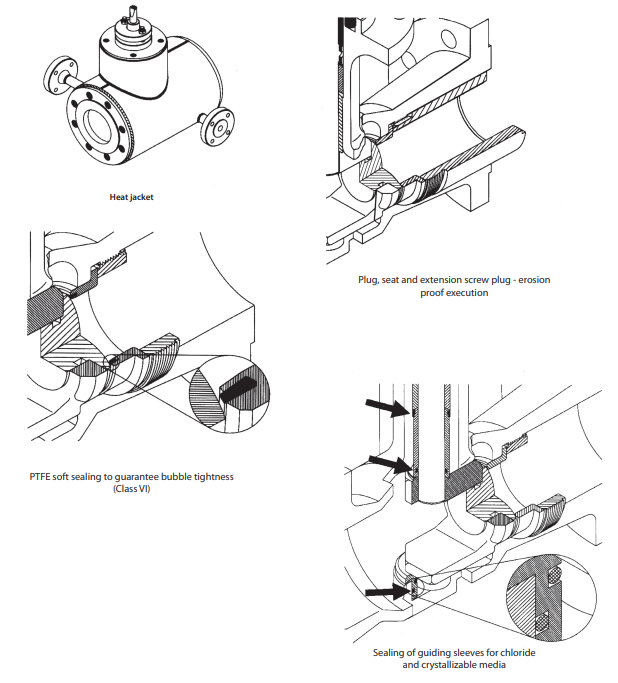

10. Special Configurations Available: Options include heat jackets, erosion-proof designs, and adaptations for crystallizable media.
