Double Union Motorized Ball Control Valve, DN15-DN100, PVDF
Key Specifications / Features
Our Double Union Motorized Ball Control Valve features a true union design with threaded or IPS socket fusion end connections. Available in sizes from 1/2 to 4 inches (DN15-DN100) and rated at Class 150 LB, this valve provides reliable On/Off control with an electric actuator. Constructed with PVDF material and standard FPM seals, it ensures durability and chemical resistance. The full port design allows maximum flow, and it can handle pressures up to 150 psi (10 bar) at 70°F (23°C), with a maximum service temperature of 240°F (115°C). Ideal for high-temperature services, corrosive environments, and sensitive media systems.
Detail Information
SPECIFICATIONS
Product Name: Double Union Motorized Ball Control Valves
Key Features: PVDF, Electric Actuator, Floating, On/Off
Size Range: DN15-DN100, 1/2 Inch - 4 Inch
Pressure Rating: PN16, Class 150 LB
Body Material: PVDF
Temperature Of Media: -10°C to 180°C (-22°F to 356°F )
Structure: Floating Ball Valve
Actuator Type: ON/OFF Type, Modulating Type, Intelligent Type
End Connection: True Union
Suitable Media: Acid, Water, Air, Oil, Gas, etc
Voltage: DC-12V, 24V; AC-24V, 110V, 220V, 380V
Voltage Tolerance: ±10%
Product Name: Double Union Motorized Ball Control Valves
Key Features: PVDF, Electric Actuator, Floating, On/Off
Size Range: DN15-DN100, 1/2 Inch - 4 Inch
Pressure Rating: PN16, Class 150 LB
Body Material: PVDF
Temperature Of Media: -10°C to 180°C (-22°F to 356°F )
Structure: Floating Ball Valve
Actuator Type: ON/OFF Type, Modulating Type, Intelligent Type
End Connection: True Union
Suitable Media: Acid, Water, Air, Oil, Gas, etc
Voltage: DC-12V, 24V; AC-24V, 110V, 220V, 380V
Voltage Tolerance: ±10%

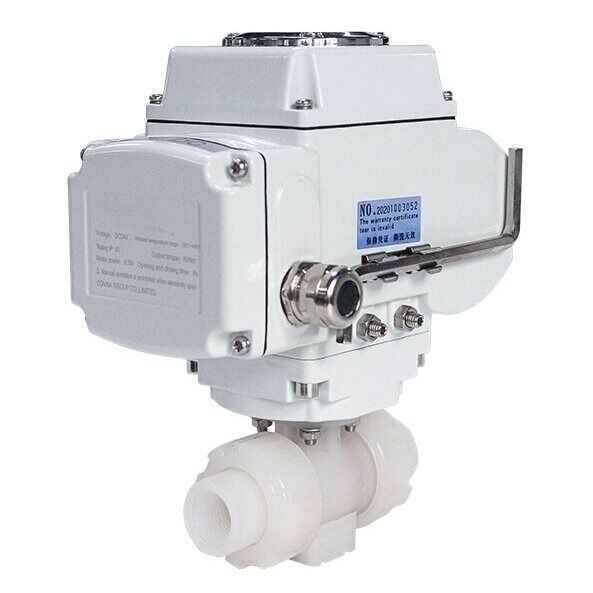

Double Union Motorized Ball Control Valve
