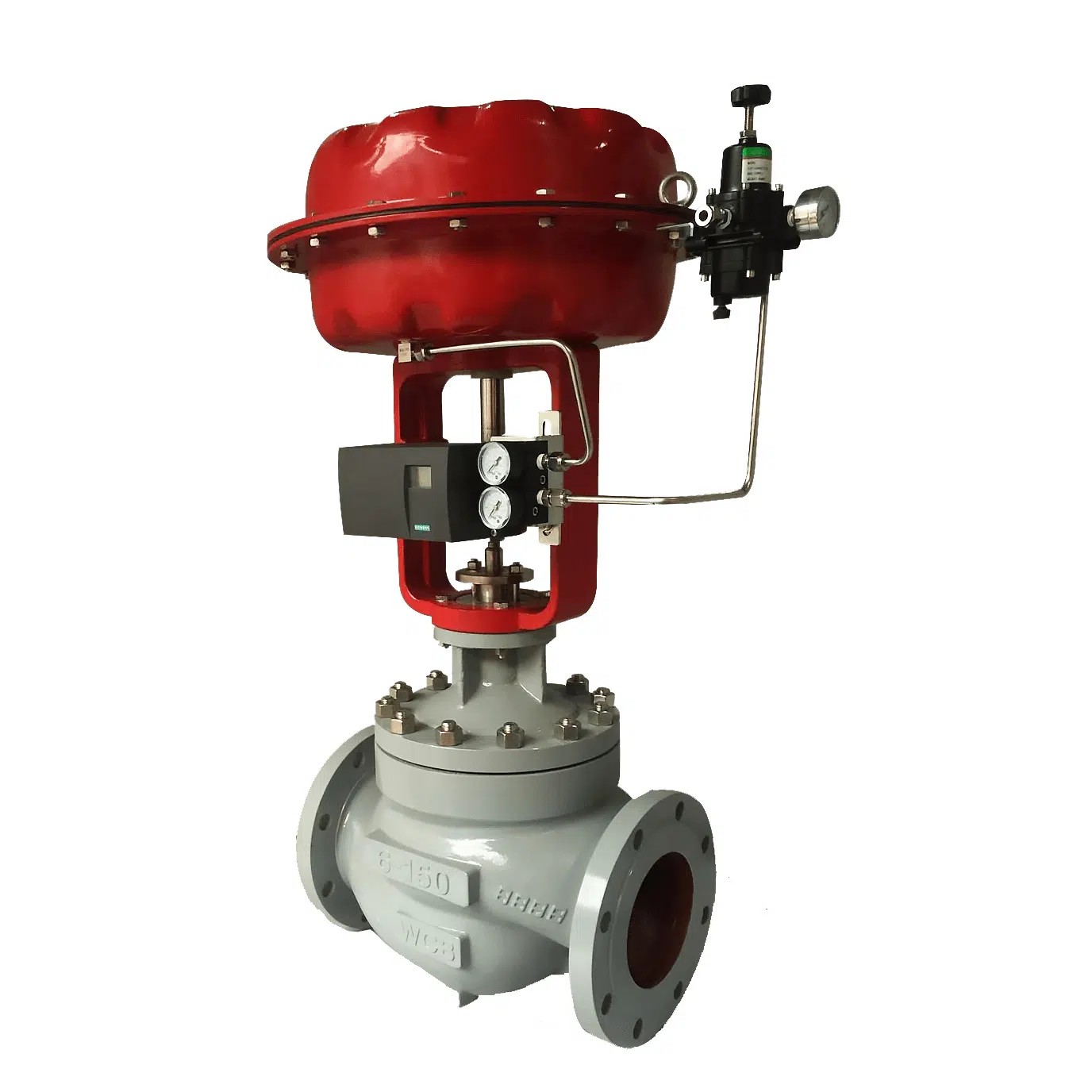

Balanced Cage Globe Control Valve, Single-Seated, 3/4-16 IN
Key Specifications / Features
Pressure Balanced Cage Type Control Valves, engineered for heavy-duty applications, feature a compact valve body with an S-shaped flow passage, minimizing pressure loss. Incorporating a stabilizer to regulate turbulent flow around the cage, these valves offer ample flow capacity, rangeability, and precise flow characteristics. The pressure-balanced valve plug enables control of high differential pressures with minimal actuating force. Integrated with straightforward mechanisms, the actuator utilizes a compact yet potent diaphragm actuator loaded with multiple springs. These valves find widespread use in reliably controlling high or low-temperature, high-pressure, or high-differential-pressure process lines, meeting demands for dynamic stability, low noise, and resistance to cavitation/flashing.
Detail Information
SPECIFICATIONS
Product Name: Balanced Cage Single-Seated Globe Control Valve
Size Range: 3/4 Inch-16 Inch, DN 20-DN 400
Pressure rating: ANSI Class 125 LB, 150 LB, 300 LB, 600 LB, JIS 10K, 16K, 20K, 30K, 40K, PN16, PN40, PN64, PN100
Materials: ASTM A216 WCB, WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3M, CF3
End connection:
Flanged End: FF(Flat Face), RF(Raised Face), RJ(Ring Joint), LG(Large Male-Female)
Welded End: SW(Socket Weld), BW(Butt Weld)
Threaded End: Rc
Ambient temperature: -20 to 70°C
Bonnet:
Plain bonnet (-17 to 230°C)
Extension bonnet Type1(-45 to -17°C and 230 to 566°C)
Actuator Type: Single-acting diaphragm actuator, Spring type piston actuator, Double acting piton actuator
Flow characteristics: Equal percentage, Linear
Product Name: Balanced Cage Single-Seated Globe Control Valve
Size Range: 3/4 Inch-16 Inch, DN 20-DN 400
Pressure rating: ANSI Class 125 LB, 150 LB, 300 LB, 600 LB, JIS 10K, 16K, 20K, 30K, 40K, PN16, PN40, PN64, PN100
Materials: ASTM A216 WCB, WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3M, CF3
End connection:
Flanged End: FF(Flat Face), RF(Raised Face), RJ(Ring Joint), LG(Large Male-Female)
Welded End: SW(Socket Weld), BW(Butt Weld)
Threaded End: Rc
Ambient temperature: -20 to 70°C
Bonnet:
Plain bonnet (-17 to 230°C)
Extension bonnet Type1(-45 to -17°C and 230 to 566°C)
Actuator Type: Single-acting diaphragm actuator, Spring type piston actuator, Double acting piton actuator
Flow characteristics: Equal percentage, Linear

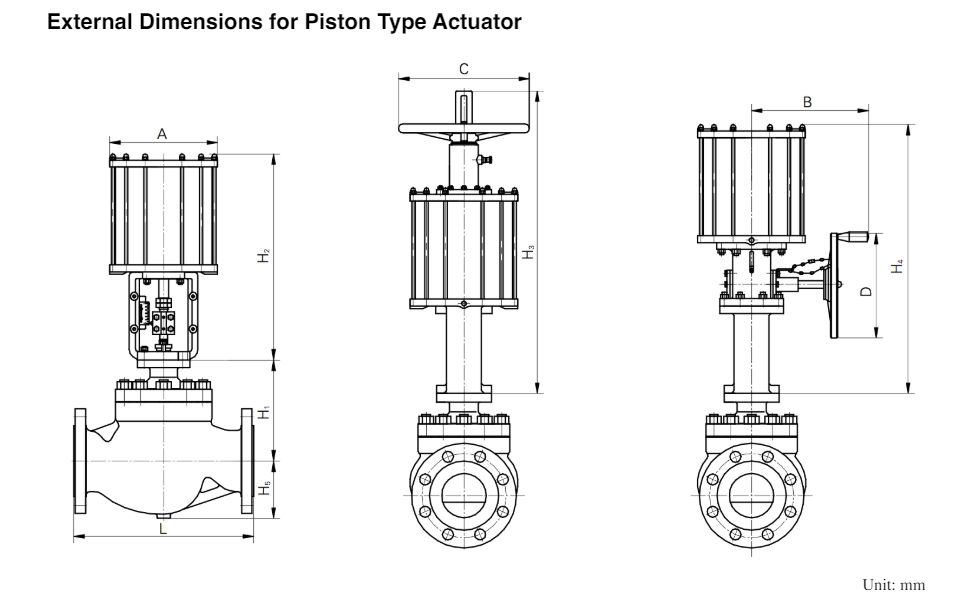

DN20-DN50 External Dimensions for Standard, Bellows and Extension
