Anti-Static Pneumatic Ball Control Valve, CF8M, 1/2-4 IN

Name: Anti-Static Pneumatic Ball Control Valve, CF8M, 1/2-4 IN
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Introducing our Anti-Static Pneumatic Ball Control Valve, engineered for high-performance and safety. Constructed from durable ASTM A351 CF8M, CF8, and ASTM A216 WCB materials, it ensures long-lasting reliability. Available in sizes from 1/2 to 4 inches (DN15-DN100) and pressure ratings PN16, PN40, and Class 150 LB, it meets diverse application needs. The anti-static design enhances safety by preventing static discharge, making it ideal for sensitive environments. With threaded connections for easy installation, this valve is perfect for industries requiring robust and efficient flow control. Choose our valve for superior durability, safety, and ease of integration.

Request a quote

Detail Information

SPECIFICATIONS
Product Name: Anti-Static Pneumatic Ball Control Valve
Body Material: ASTM A351 CF8M, CF8, ASTM A216 WCB, SS 316L, SS 316, SS 304, SS 304L
Ball: SS 316L, SS 316, SS 304, SS 304L
Seat: PTFE, TFM1600, PEEK

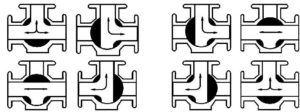

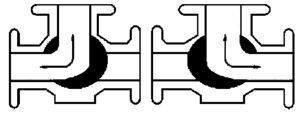

Flow Direction: T type, L type
Ends: BSP, BSPT, NPT, DIN, ISO, Clamp
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure: PN16, PN40, Class 150 LB
Medium: Gas, Water and Oil, etc
Option: Olenoid Valve, limit Switch Box , Filter, E/P positioner, Hand wheel.
Pneumatic Actuator: Double acting, Single acting normally closed, Single Normally Open.
