3PC Pneumatic Ball Control Valve, SS 304, DN50, PN16

Name: 3PC Pneumatic Ball Control Valve, SS 304, DN50, PN16
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Introducing our 3PC Pneumatic Ball Control Valve, engineered for efficient and reliable on-off control of water, air, oil, and other compatible media. Available in sizes from DN15 to DN100 (1/2 to 4 inches), this valve features a durable Stainless Steel 304 construction with PN16 and Class 150 LB flange ends. It offers both spring return and double-acting actuator options. Spring return actuators ensure fail-safe operation, while double-acting actuators provide precise control with air pressure for both opening and closing. Benefits include higher flow rates, the ability to handle higher pressures and temperatures, wide media compatibility, a straight-through flow path to reduce water hammer, and suitability for hazardous environments. Choose our valve for its robust design and versatile performance across various applications.

Request a quote

Detail Information

SPECIFICATIONS
Product Name: 3PC Pneumatic Ball Control Valve
Key Features: Spring Return, Double Acting, 2 Way, Long Service Life, Eco-Friendly, Easy Installation, etc.

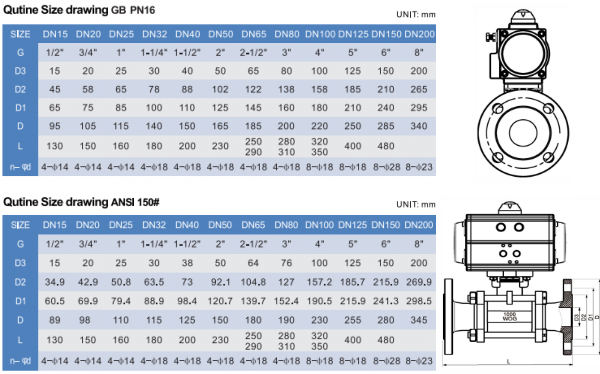

Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure Rating: PN16, Class 150 LB
Body Material: Stainless Steel 304
Stem Material: Stainless Steel
Sealing Material: PTFE, PPL
Structure: Floating Ball Core
Rotation: Quarter-turn
Applicable Standard: GB, ANSI, JIS, DIN
Applicable Media: Water, Oil, Gas, Liquid, Steam, Powder, Anti-corrosive Base.
End Connection: Flange
