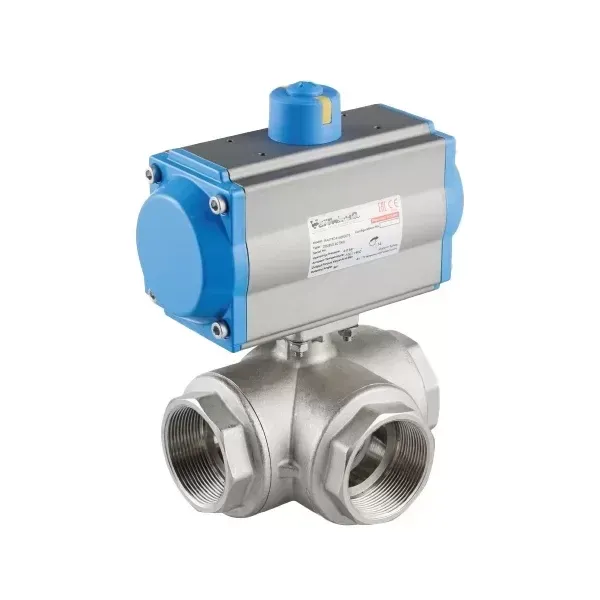

3 Way Pneumatic Ball Control Valve, 1/4-2 Inch, PN100-PN400
Key Specifications / Features
Our 3-Way Pneumatic Ball Control Valve is engineered for exceptional performance and versatility. Featuring spring return and double-acting options, this valve is available in sizes 1/4 to 2 inches with pressure ratings from PN100 to PN400. Constructed from durable stainless steel 304, it boasts female thread ends for easy integration into various systems. The valve's design ensures reliable operation, with a compact structure and quick actuation, making it ideal for precise flow control in high-pressure applications. Benefits include robust construction, excellent sealing performance, easy maintenance, and suitability for diverse industrial environments, enhancing operational efficiency and safety.
Request a quote
Detail Information
SPECIFICATIONS
Product Name: 3 Way Pneumatic Ball Control Valves
Key Features: Spring Return, Double Acting, 3 Way, High Pressure.
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure Rating: PN100-PN400, Class 600 LB - 2500 LB
Body Material: Stainless Steel 304, 316
Sealing Material: PTFE
Working Temperature: -10°C to 180°C
End Connection: Female Thread
Media: Water, Oil, Air, Gas, etc.
Product Name: 3 Way Pneumatic Ball Control Valves
Key Features: Spring Return, Double Acting, 3 Way, High Pressure.
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure Rating: PN100-PN400, Class 600 LB - 2500 LB
Body Material: Stainless Steel 304, 316
Sealing Material: PTFE
Working Temperature: -10°C to 180°C
End Connection: Female Thread
Media: Water, Oil, Air, Gas, etc.

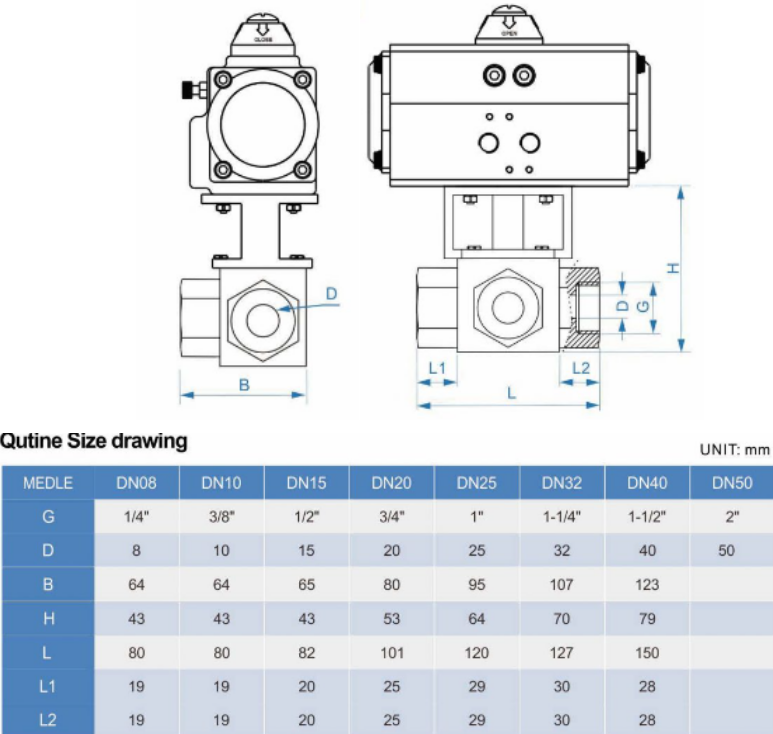

Drawing of Pneumatic Ball Control Valve
