3 Way Pneumatic Ball Control Valve, 1/4-2 Inch, PN10-PN40

Name: 3 Way Pneumatic Ball Control Valve, 1/4-2 Inch, PN10-PN40
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Introducing our 3-Way Pneumatic Ball Control Valve, designed for high-pressure applications. This robust valve features a spring return mechanism, available in sizes from 1/4 to 2 inches (DN8-DN50), and constructed from durable stainless steel. Rated PN10-PN40, it ensures reliable performance in demanding environments. With female threads for easy installation, this valve offers precise flow control and enhanced operational efficiency. Ideal for various industrial applications, it provides excellent resistance to corrosion and wear, ensuring long-lasting durability. Choose our 3-Way Pneumatic Ball Control Valve for superior performance, reliability, and ease of use in your high-pressure systems.

Request a quote

Detail Information

SPECIFICATIONS
Product Name: 3 Way Pneumatic Ball Control Valve
Size Range: 1/4 Inch - 2 Inch, DN8-DN50
Pressure Rating: PN10-PN40, Class 150 LB - 300 LB
Material: Stainless Steel 304, 306
Sealing Material: PTFE
Applicable Standard: GB
End Connection: Female Thread
Media: Water, Oil, Air, Gas etc.
Working Temperature: -10°C to 180°C

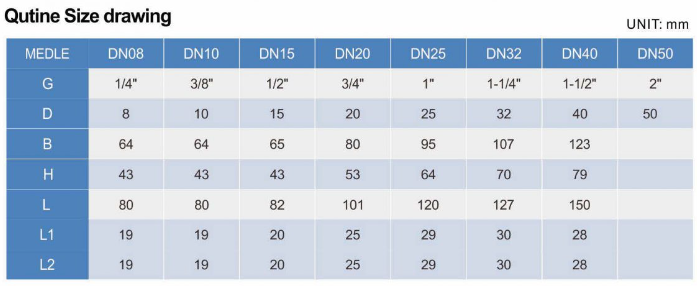

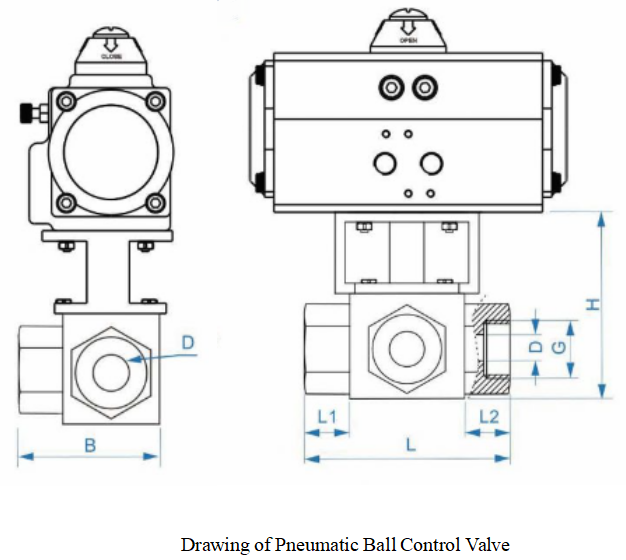

Dimension of Pneumatic Ball Control Valve

Send your message to this supplier

Name *

Company

Email *

Phone

Message *

FAQs

Can you supply valves with 3.2 certification?

Yes, 3.2 certificates are available at an additional cost. We work with reputable third-party inspection agencies (TPI) such as BV, TUV, SGS, or LR, who will inspect the valves and issue signed certificates provided with the shipment.
