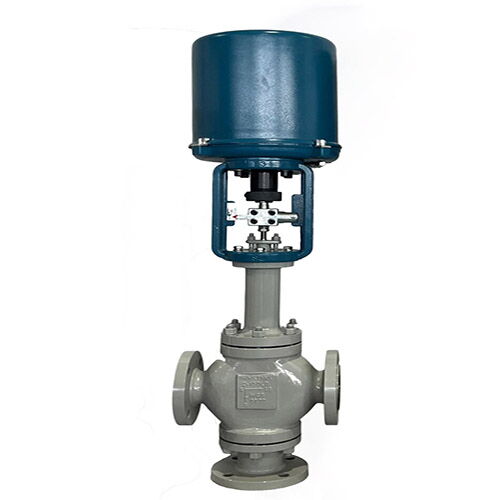

3-Way Motorized Diverting Control Valves, 2 IN, 150 LB, WCB
Key Specifications / Features
Electric three-way control valves, also known as heavy-duty three-way control valves, are designed for mixing or diverting services and are commonly used for water, steam, or gas applications. Key features include motorized actuation, diverting capability, and flanged ends. This valve, sized at 2 inches and rated at 150LB, is made from ASTM A216 WCB for durability and reliability.
Request a quote
Detail Information
SPECIFICATIONS
Product Name: 3-Way Motorized Diverting Control Valve , Three-way Cast Globe Valve
Key Features: Motorized Actuation, Diverting
Nominal size: 3/4 Inch, 1 Inch, 1-1/4 Inch, 1-1/2 Inch, 2 Inch, 2-1/2 Inch, 3 Inch, 4 Inch, 5 Inch, 6 Inch, 8 Inch, 10 Inch, 12 Inch, 14 Inch
Materials: ASTM A216 WCB, WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3M, CF3
Pressure rating: ANSI Class 125 LB, 150 LB, 300 LB, 600 LB, JIS 10K, 16K, 20K, 30K, 40K, PN16, PN40, PN64, PN100
End connection:
Flanged End: FF(Flat Face), RF(Raised Face), RJ(Ring Joint), LG(Large Male-Female)
Welded End: SW(Socket Weld), BW(Butt Weld)
Bonnet:
Plain bonnet (-17 to 230°C)
Extension bonnet(-60 to -29 °C or over 230°C)
Bellows Seal
Packing: V-shaped PTFE, PTFE, Flexible graphite
Temperature Range: -196 to +450°C
Product Name: 3-Way Motorized Diverting Control Valve , Three-way Cast Globe Valve
Key Features: Motorized Actuation, Diverting
Nominal size: 3/4 Inch, 1 Inch, 1-1/4 Inch, 1-1/2 Inch, 2 Inch, 2-1/2 Inch, 3 Inch, 4 Inch, 5 Inch, 6 Inch, 8 Inch, 10 Inch, 12 Inch, 14 Inch
Materials: ASTM A216 WCB, WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3M, CF3
Pressure rating: ANSI Class 125 LB, 150 LB, 300 LB, 600 LB, JIS 10K, 16K, 20K, 30K, 40K, PN16, PN40, PN64, PN100
End connection:
Flanged End: FF(Flat Face), RF(Raised Face), RJ(Ring Joint), LG(Large Male-Female)
Welded End: SW(Socket Weld), BW(Butt Weld)
Bonnet:
Plain bonnet (-17 to 230°C)
Extension bonnet(-60 to -29 °C or over 230°C)
Bellows Seal
Packing: V-shaped PTFE, PTFE, Flexible graphite
Temperature Range: -196 to +450°C
