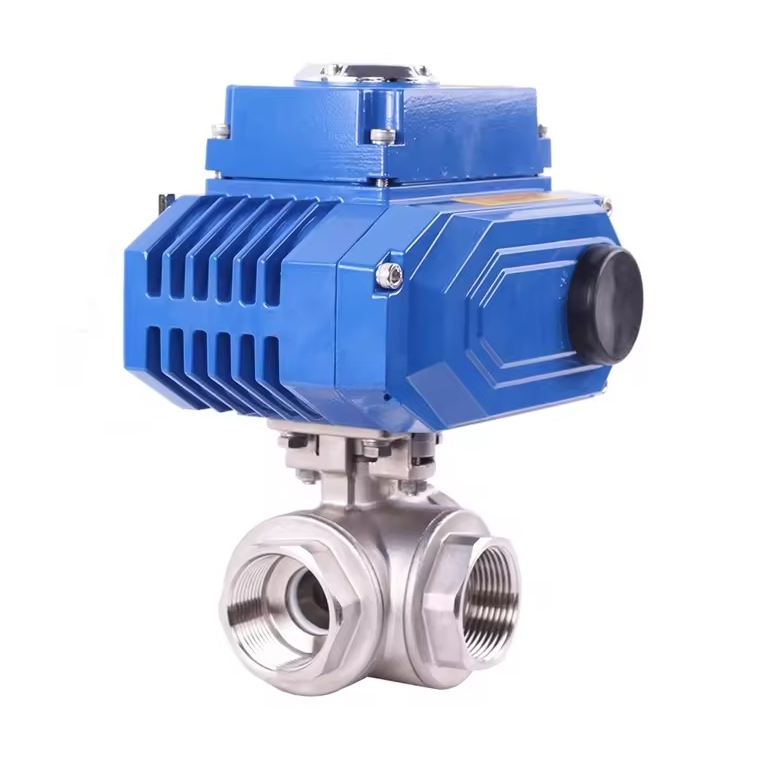

3 Way Electric Ball Control Valve, SS 316, 1/2-4 IN, 150 LB

Name: 3 Way Electric Ball Control Valve, SS 316, 1/2-4 IN, 150 LB
Brand: china-control-valves.com
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Discover our 3-Way Electric Ball Control Valve, designed for optimal flow management. Available in sizes DN15-DN100 (1/2-4 inches), this valve offers floating and trunnion-mounted options for versatile use. Constructed from high-quality stainless steel, it ensures durability and corrosion resistance. Rated for PN16 and Class 150 LB, it delivers reliable performance under varying pressures. The tri-clamp and butt-welded ends enable easy installation and maintenance, perfect for sanitary and industrial applications. Enhance your system's efficiency with precise control and long-lasting service provided by our advanced 3-way electric ball valve.

Flanged Ball Control Valve Floating Ball Control Valve Trunnion Mounted Ball Control Valve Electric Ball Control Valve 3 Way Ball Control Valve

Detail Information

SPECIFICATIONS
Product Name: Flanged Electric Ball Control Valve
Key Features: Floating, Trunnion Mounted
Body Material: Stainless Steel
Core Materal: Stainless Steel
End Connection: Tri-clamp, Butt Welded, Flanged
Structure: 3 Way T Type, L Type
Medium: Air, Water, Steam, Oil, Liquid, etc.
Size Range: DN15-DN100, 1/2 Inch - 4 Inch
Pressure Rating: PN16, Class 150 LB
Working Temperature: 14°F to 356°F (-10°C to 180°C )
Voltage: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC
Tolerance: ±10%
Suitable Medium: Water, Oil, Air, Gas, etc
Protection Class: IP65, Explosion Proof Construction Are Available: EX ll BT4
Drawing of Ball control Valve
