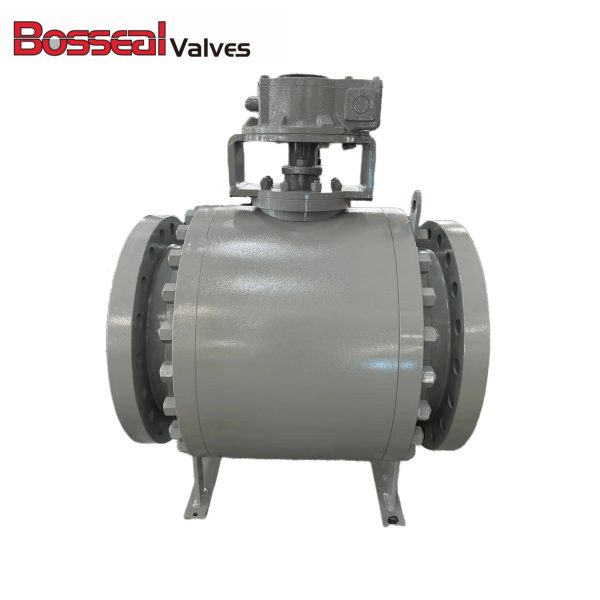

Trunnion Ball Valves, BS 5351, ASTM A350 LF2, 14 IN, CL2500
Model Number: 1811184
Key Specifications / Features
We specialize in ASTM A350 LF2 ball valves designed to meet API 6D standards. Our 14-inch (DN350) valves feature a durable 3-piece bolted body construction, rated for Class 2500 LB, and are equipped with soft seats for optimal sealing. These valves offer double block and bleed (DBB) functionality for enhanced safety, an anti-static device for added protection, and a fire-safe design for critical industrial applications. The RTJ flanged ends ensure a secure, leak-proof connection, making them ideal for high-pressure environments. As a leading ball valve manufacturer in China, we are committed to delivering top-quality solutions.
Detail Information
Trunnion Mounted Ball Valve, API 6D, BS 5351, 14 Inch/DN350, 3pcs Bolted Body, RTJ Flanged.
Design Standard: API 6D, BS 5351
Nominal Size: 14 Inch, DN350
Nominal Class: CL 2500 LB, PN420
Body Material: Carbon Steel ASTM A105N or ASTM A350 LF2
Test and inspection: API 598, API 6D
Structure: 3pcs Body, Side Entry, Bolted Bonnet, Soft Seat
Bore Type: Full Bore or Reduced Bore
Operation: Lever/Gear
Seat Insert: RPTFE, DEVLON, NYLON, PEEK
Face to Face: ASME B16.10
End Connection: RTJ Flanged
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire-Safe Design, Anti-Blowout Stem, Emergency Sealant Injection, Low Emission (Optional), DIB (Optional).
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: 150 - 2500 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C to +150°C
End Connection: Raised Face (RF), Ring-Type Joint (RTJ), Butt Weld (BW), Hub
Valve Description
1811184 Trunnion Mounted Ball ValveDesign Standard: API 6D, BS 5351
Nominal Size: 14 Inch, DN350
Nominal Class: CL 2500 LB, PN420
Body Material: Carbon Steel ASTM A105N or ASTM A350 LF2
Test and inspection: API 598, API 6D
Structure: 3pcs Body, Side Entry, Bolted Bonnet, Soft Seat
Bore Type: Full Bore or Reduced Bore
Operation: Lever/Gear
Seat Insert: RPTFE, DEVLON, NYLON, PEEK
Face to Face: ASME B16.10
End Connection: RTJ Flanged
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire-Safe Design, Anti-Blowout Stem, Emergency Sealant Injection, Low Emission (Optional), DIB (Optional).
Product Range
Body Material: Carbon Steel, Stainless Steel, Alloy SteelNormal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: 150 - 2500 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C to +150°C
End Connection: Raised Face (RF), Ring-Type Joint (RTJ), Butt Weld (BW), Hub
