Titanium Alloy Non-Return Valve, 12 IN, CL 2500, API 6D
Model Number: CV-20240816-16
Key Specifications / Features
As a premier dual plate non-return valve fabricator from China, we specialize in 12-inch (DN300) valves with a robust 2500 LB rating. Crafted from durable titanium alloy, these valves feature a compact design and wafer end for versatile installation. Choose between optional soft and metal seats to meet specific operational needs. Our expertise ensures the highest standards of quality and performance in every valve we produce, delivering reliable and efficient solutions for your industrial applications.
Detail Information
Dual Plate Check Valve, 12 Inch/DN300, Class 2500 LB, Titanium Alloy, Wafer, Lug Ends.
Design Standard: API 594, API 6D
Structure: Spring Loaded, Dual Plate
Nominal Size: 12 Inch, DN300
Nominal Class: Class 2500 LB, PN420
Body Material: Titanium Alloy, ASTM A890 5A, ASTM A890 4A, ASTM A351 CF8M, ASTM A352 LCB, ASTM A351 CF8, ASTM A216 WCB, ASTM B148 C95800.
Bore Type: /
Key Features: Independent Spring, Optional Soft and Metal Seat, Compact Design, Unique Slim Plate Design.
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, CF8M, ASTM A890 4A, 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598
End Connection: Wafer, Lug, Double Flanged
Pressure Range: Class 150 LB - 2500 LB
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Aluminum Bronze, Titanium
Operation: Not Applicable (Manual or actuated available for special request)
Working Temperature: -196°C to +450°C
End Connection: Wafer, Lug, Flanged-RF, RTJ
Check Valve Specification
1842130 Dual Plate Check ValveDesign Standard: API 594, API 6D
Structure: Spring Loaded, Dual Plate
Nominal Size: 12 Inch, DN300
Nominal Class: Class 2500 LB, PN420
Body Material: Titanium Alloy, ASTM A890 5A, ASTM A890 4A, ASTM A351 CF8M, ASTM A352 LCB, ASTM A351 CF8, ASTM A216 WCB, ASTM B148 C95800.
Bore Type: /
Key Features: Independent Spring, Optional Soft and Metal Seat, Compact Design, Unique Slim Plate Design.
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, CF8M, ASTM A890 4A, 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598
End Connection: Wafer, Lug, Double Flanged
Product Selection
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)Pressure Range: Class 150 LB - 2500 LB
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Aluminum Bronze, Titanium
Operation: Not Applicable (Manual or actuated available for special request)
Working Temperature: -196°C to +450°C
End Connection: Wafer, Lug, Flanged-RF, RTJ

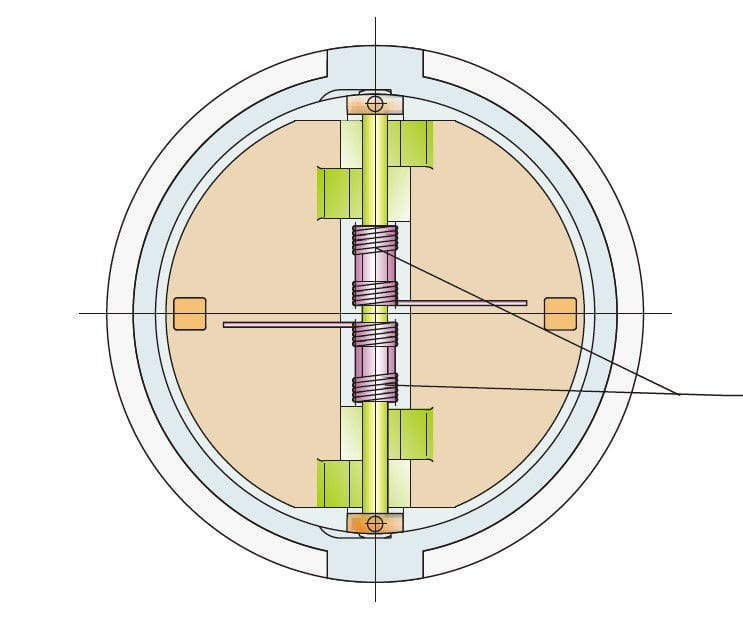

Independent Spring
The two plates are actuated by two separate high torsion springs and it ensure a quick closing, lower water hammer effection, longer working life and better sealing performance.
