Titanium Alloy Check Valve, 12 IN, CL 600 LB, API 594, 6D
Model Number: 1842067
Key Specifications / Features
As a premier fabricator of API 594 dual plate check valves from China, we specialize in 12-inch valves, DN300, made from durable titanium alloy. These valves are rated CL 600 LB and comply with API 6D standards, ensuring high performance and reliability. Designed with wafer ends and an independent spring-loaded mechanism, our valves provide efficient backflow prevention and extended service life. The titanium alloy construction offers exceptional resistance to corrosion and wear, making these check valves suitable for demanding applications in various industrial environments.
Detail Information
Titanium Alloy Dual Plate Check Valve, 12 Inch/DN300, Class 600 LB, API 594, Wafer, Lug Ends.
Design Standard: API 594, API 6D
Structure: Spring Loaded, Dual Plate
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design.
Nominal Size: 12 Inch, DN300
Nominal Class: ANSI Class 600, PN100
Body Material: Titanium Alloy, ASTM A351 CF8, ASTM A216 WCB, ASTM A351 CF8M, ASTM B148 C95800, ASTM A890 5A, ASTM A352 LCB, ASTM A890 4A.
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, CF8M, ASTM A890 4A, 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598
Normal Diameter: 1/2-48 Inch (DN15 - DN1200)
Pressure Range: Class 150-2500 LB
Operation: Not Applicable (Manual or actuated available for special request)
End Connections: Wafer, Lug, Flanged(FF, RF, RTJ), Butt Weld(BW), HUB
Working Temperature: -196°C - +450°C
Seat Type: Soft Seat, Metal Seat
Valve Description
1842067 Dual Plate Check ValveDesign Standard: API 594, API 6D
Structure: Spring Loaded, Dual Plate
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design.
Nominal Size: 12 Inch, DN300
Nominal Class: ANSI Class 600, PN100
Body Material: Titanium Alloy, ASTM A351 CF8, ASTM A216 WCB, ASTM A351 CF8M, ASTM B148 C95800, ASTM A890 5A, ASTM A352 LCB, ASTM A890 4A.
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, CF8M, ASTM A890 4A, 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598
Product Selection
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Aluminum Bronze, TitaniumNormal Diameter: 1/2-48 Inch (DN15 - DN1200)
Pressure Range: Class 150-2500 LB
Operation: Not Applicable (Manual or actuated available for special request)
End Connections: Wafer, Lug, Flanged(FF, RF, RTJ), Butt Weld(BW), HUB
Working Temperature: -196°C - +450°C
Seat Type: Soft Seat, Metal Seat
Other Wafer Check Valve Types Available

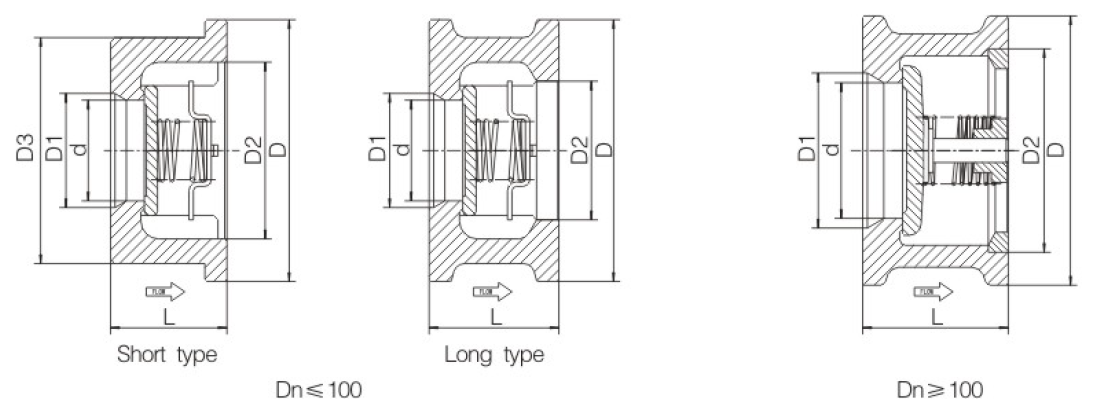

Piston Type(Lifting) Wafer Check Valve

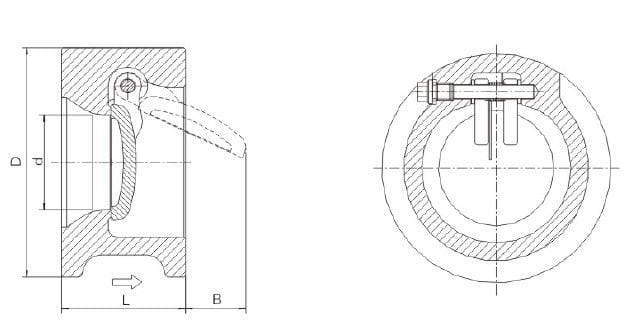

Singe Plate Wafer Check Valve
Titling Disc Wafer Check Valve

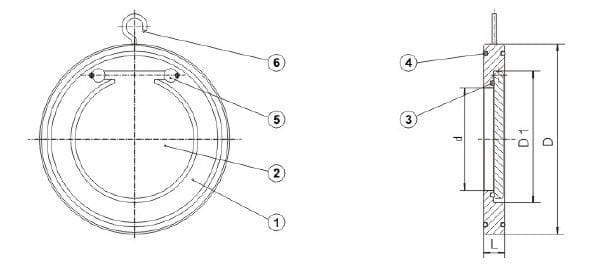

Thin Type Wafer Check Valve
Singe Plate Wafer Check Valve
Titling Disc Wafer Check Valve
Thin Type Wafer Check Valve
