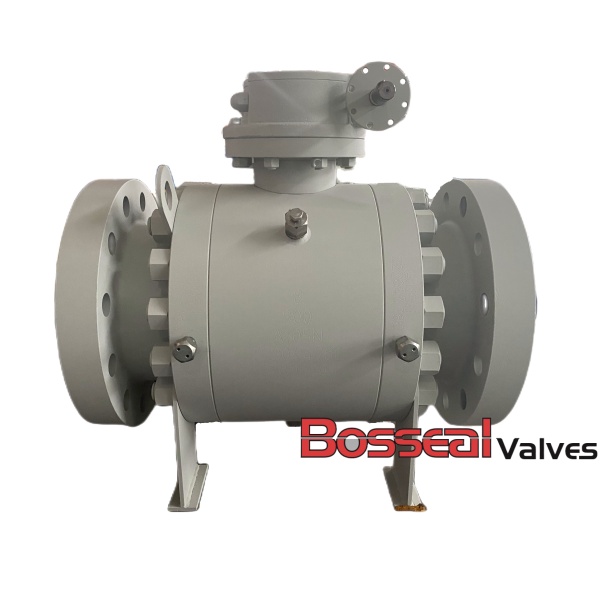

Three Pieces Trunnion Ball Valve, ASTM A105N, 8 Inch, 300 LB, BW

Discover a top-quality Three Pieces Trunnion Ball Valve crafted from ASTM A105N material, featuring an 8-inch size (DN200), 300 LB (PN50) pressure rating, and compliance with API 6D standards. This fully welded valve, designed for Natural Gas Pipelines, ensures reliability with Double Block & Bleed functionality. Choose excellence with our BW (Butt Weld) construction for seamless performance.

Fully Welded Trunnion Mounted Ball Valve, API 6D, 8 inch, 300 LB, BW+extended Nipples, A105N Body, A105+ENP Trim, Gear Operation

Valve Description:
1811061 Trunnion Mounted Ball Valve 8BW3BA105
Design Standard: API 6D
Structure: Three pieces forged body, Side Entry, Welded Bonnet, Soft Seat
Nominal size: 8 Inch
Nominal class: 300 LB
Bore Type: Full Bore
End Connection: BW+extended Nipples
Operation: Gear Box
Body Material: ASTM A105N
Trim Material: A105N+ENP, DEVLON Seat
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Full welded for nature gas pipeline

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -29℃ - +150℃
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
