SW + Nipple End Ball Valve, ASTM A350 LF2, 3/4 Inch 800 LB
Model Number: 0.75BB8SLF2
Key Specifications / Features
Explore top-quality Floating Ball Valves from our ISO 17292-certified collection. Designed for superior performance, our valves feature a 3/4-inch size, Class 800 LB rating, and PN130 specification, and are constructed with ASTM A350 LF2 material. The SW + 100mm Nipples End ensures secure connections, while the Fire Safe and Anti-Blowout Stem technologies enhance safety. Equipped with a Locking Device, our valves offer reliable control for your industrial needs.
Detail Information
3/4 inch, 800 LB, Floating Ball Valve, SW+100mm nipples End, ISO 17292, LF2 body with 316 Trim, RPTFE seat and lever operation
Valve Description:
1812042 Floating Ball Valve 0.75BB8SLF2
Design Standard: API 608, ISO 17292, API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 3/4 Inch, DN20
Nominal class: 800 LB
Bore Type: Full Bore

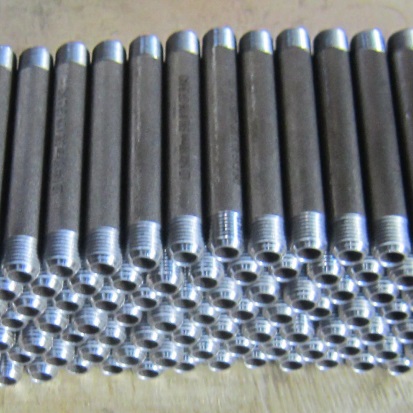

End Connection: SW+100mm nipples
Operation: Lever Lockable
Body Material: ASTM A350 LF2
Trim Material: ASTM A182 F316, RPTFE
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 2 Inch (DN15 - DN50)
Pressure range: Class 150 - 2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +150℃
Operation: Lever, Spring Return Lever, Pneumatic Actuator"
Valve Description:
1812042 Floating Ball Valve 0.75BB8SLF2
Design Standard: API 608, ISO 17292, API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 3/4 Inch, DN20
Nominal class: 800 LB
Bore Type: Full Bore
End Connection: SW+100mm nipples
Operation: Lever Lockable
Body Material: ASTM A350 LF2
Trim Material: ASTM A182 F316, RPTFE
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 2 Inch (DN15 - DN50)
Pressure range: Class 150 - 2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +150℃
Operation: Lever, Spring Return Lever, Pneumatic Actuator"
