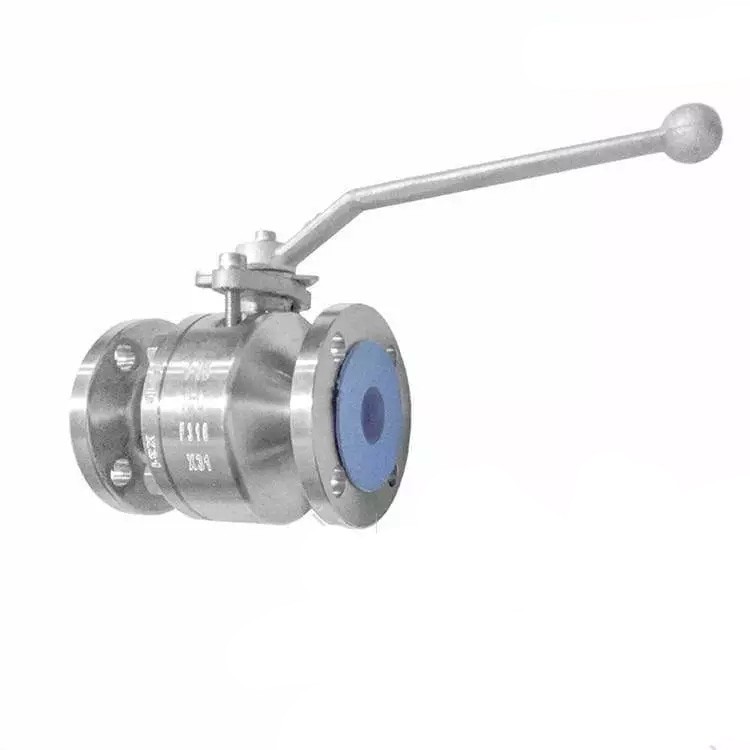

Spring Return Floating Ball Valve, 1 Inch, 150 LB, ASTM A182 F316

Explore top-quality Spring Return Ball Valve from a trusted provider. This 1-inch valve, with DN25 size, is designed for 150 LB and PN20 pressure ratings. Constructed with ASTM A182 F316 body and Trim, it adheres to API 608, ISO 17292, and API 6D standards. Featuring an RPTFE Seat, Full Bore design, and RF End, this valve ensures reliable performance in various applications.

Spring Return Lever Floating Ball Valve, 1 Inch, 150 LB, RF End, ISO 17292, F316 body and Trim, RPTFE seat and deadman lever operation

Valve Description:
1812049 Floating Ball Valve 1BB1RF316-SR
Design Standard: API 608, ISO 17292, API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, Soft Seat, Spring Return Lever
Nominal size: 1 Inch, DN25
Nominal class: 150 LB, PN20
Bore Type: Full Bore
End Connection: RF
Operation: Spring Return Lever
Body Material: ASTM A182 F316
Trim Material: ASTM A182 F316, RPTFE
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device

Product Range:
Body material: CS, SS DSS, Alloys
Normal diameter: 1/2 - 2 Inch (DN15 - DN50)
Pressure range: Class 150 - 2500 LB
End connection: SW, NPT, BSP, RF, RTJ
Working temperature: -29℃ - +150℃
Operation: Lever, Spring Return Lever, Pneumatic Actuator
