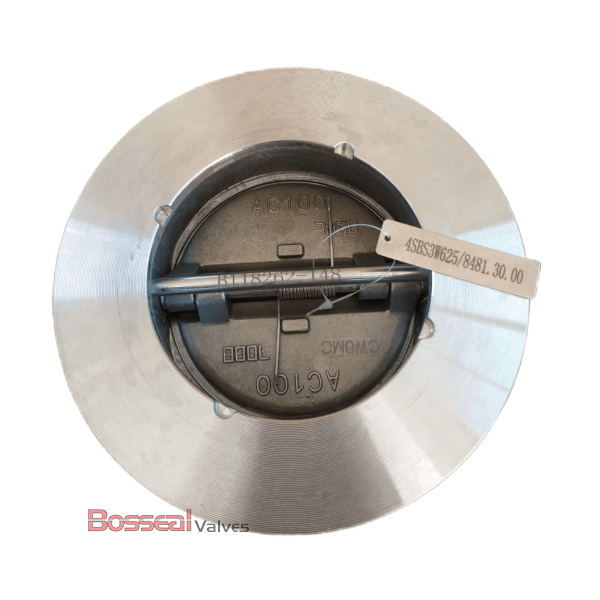

Spring Loaded Dual Check Valve, 12 IN, 300 LB, Titanium Alloy
Model Number: 1842046
Key Specifications / Features
As a premier manufacturer of titanium alloy dual plate check valves in China, we specialize in providing high-quality valves that meet API 6D and API 594 standards. Our 12-inch (DN300), Class 300 LB valves feature robust titanium alloy construction and are equipped with flanged ends for easy installation. What sets our valves apart is the unique slim plate design, which enhances flow efficiency while reducing overall weight and installation space. This innovative design ensures reliable performance and durability in demanding applications. Ideal for industries requiring high corrosion resistance and strength, our titanium alloy dual plate check valves offer exceptional reliability and efficiency, making them a superior choice for critical pipeline systems.
Detail Information

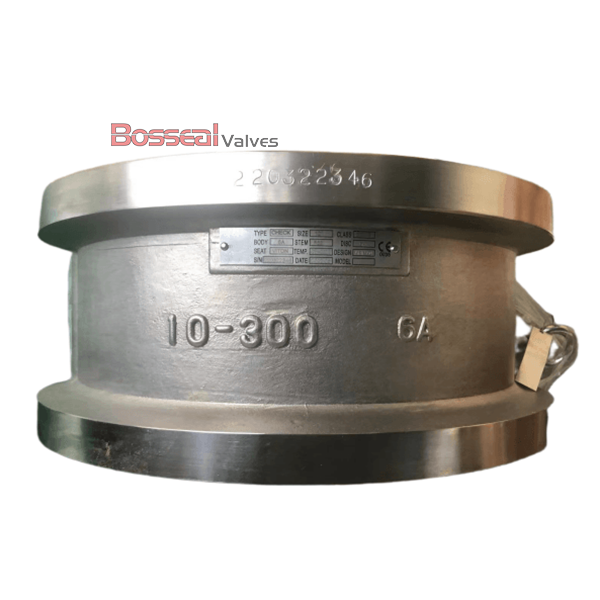

Spring Loaded Dual Plate Check Valve, API 6D, 12 Inch/DN300, 300 LB, Titanium Alloy Body, Wafer End.
Design Standard: API 6D, API 594
Structure: Spring Loaded, Dual Plate
Nominal Size: 12 Inch, DN300
Nominal Class: Class 300 LB, PN50
Body Material: Titanium Alloy, ASTM A351 CF8, ASTM A216 WCB, ASTM B148 C95800, ASTM A890 5A, ASTM A352 LCB, ASTM A351 CF8M, ASTM A890 4A.
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design.
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 2500 LB
Working Temperature: -196°C - +450°C
Operation: Not Applicable (Manual or actuated available for special request)
Seat Type: Soft Seat, Metal Seat
End Connections: Wafer, Lug, Flanged(FF, RF, RTJ), Butt Weld(BW), HUB
Check Valve Description
1842046 Dual Plate Check ValveDesign Standard: API 6D, API 594
Structure: Spring Loaded, Dual Plate
Nominal Size: 12 Inch, DN300
Nominal Class: Class 300 LB, PN50
Body Material: Titanium Alloy, ASTM A351 CF8, ASTM A216 WCB, ASTM B148 C95800, ASTM A890 5A, ASTM A352 LCB, ASTM A351 CF8M, ASTM A890 4A.
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design.
Product Portfolio
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Aluminum Bronze, TitaniumNormal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 2500 LB
Working Temperature: -196°C - +450°C
Operation: Not Applicable (Manual or actuated available for special request)
Seat Type: Soft Seat, Metal Seat
End Connections: Wafer, Lug, Flanged(FF, RF, RTJ), Butt Weld(BW), HUB

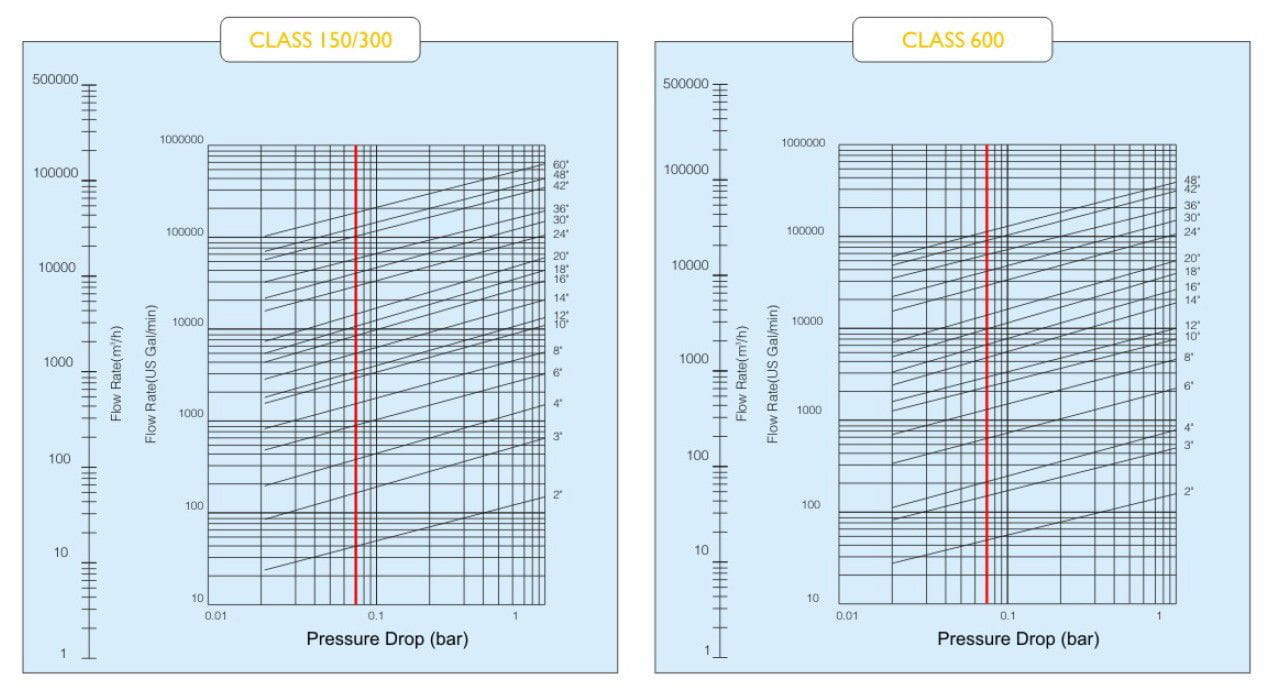

Flow Coefficient/Pressure Loss
