Soft Seated Butterfly Valve, API 609 Cat B, WCB, 16IN, CL300
Model Number: 1862105
Key Specifications / Features
As a leading butterfly valve Chinese manufacturer, we produce high-performance double-offset butterfly valves made from ASTM A216 WCB. Designed to meet API 609 Category B and EN 593 standards, these valves offer exceptional durability and reliable performance. Our 16-inch, 300 LB models feature a soft seat for enhanced sealing and a lug end design for easy installation in demanding applications. Ideal for various industries, our butterfly valves deliver superior flow control and long-lasting service.
Detail Information
High-Performance Butterfly Valves, 16 IN/DN400, 300 LB, Double Offset, Lug End.
2. Reduced torque for smoother operation
3. Replaceable seat for easy maintenance
4. Reliable tight sealing performance
5. Superior control characteristics
6. Bi-directional sealing under full pressure
7. Fire-safe seat option available
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 300 LB
End Connection: Wafer, Lug, Flanged
Working Temperature: -26°C - +120°C (180°C for PPL seat)
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Bosseal Valve advantages: 0 Leakage, low Torque, Long working life, Low Emission, Bi-direction and Fire Safe
Top Mounting: ISO 5211 Top Mounting Available
Valve Description
| 1862105 High-Performance Butterfly Valve | |
| Design Standard: | API 609 Category B, EN 593 |
| Structure: | Double Offset, Double Eccentric |
| Body Material: | ASTM A216 WCB, ASTM A890 5A, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM B148 C95800, Titanium |
| Nominal Size: | 16 Inch, DN400 |
| Nominal Class: | Class 300 LB, PN50 |
| Seat Type: | Soft Seat |
| Operation: | Gear |
| Trim Material: | ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium |
| Seat: | RPTFE, PPL |
| End Connection: | Lug |
| Face to Face: | API 609, EN 593 |
| Test and Inspection: | API 598, API 609 |
Key Features
1. Long lifespan for high-frequency operation (up to a million cycles)2. Reduced torque for smoother operation
3. Replaceable seat for easy maintenance
4. Reliable tight sealing performance
5. Superior control characteristics
6. Bi-directional sealing under full pressure
7. Fire-safe seat option available
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, TitaniumNormal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 300 LB
End Connection: Wafer, Lug, Flanged
Working Temperature: -26°C - +120°C (180°C for PPL seat)
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Bosseal Valve advantages: 0 Leakage, low Torque, Long working life, Low Emission, Bi-direction and Fire Safe
Top Mounting: ISO 5211 Top Mounting Available
ISO 5211 Top Mounting
Supplier Information
Bosseal Valves (Suzhou) Co., Ltd.
Verified Supplier
Suzhou, Jiangsu, China
Est. 2013
Certifications:
API 6D
API 6A
API 600
API 602
API 599
API 609
Eliza
ed***rf
With over five years of experience in foreign trade and B2B sales, she brings a wealth of knowledge and expertise to her role. Her background includes extensive work in international markets, where she has successfully navigated the complexities of cross-border transactions and developed strong relationships with clients. In addition to her sales acumen, she has honed her skills as an editor, ensuring clear, concise, and impactful communication. Her combined experience in sales and editorial work allows her to effectively bridge the gap between product offerings and client needs, driving growth and fostering lasting partnerships.
6707 article(s)
Comments
Leave a Comment
Related Products
Stainless Steel Butterfly Valves, A351 CF8M, CL 300, 16 IN
Bosseal Valves (Suzhou) Co., Ltd.

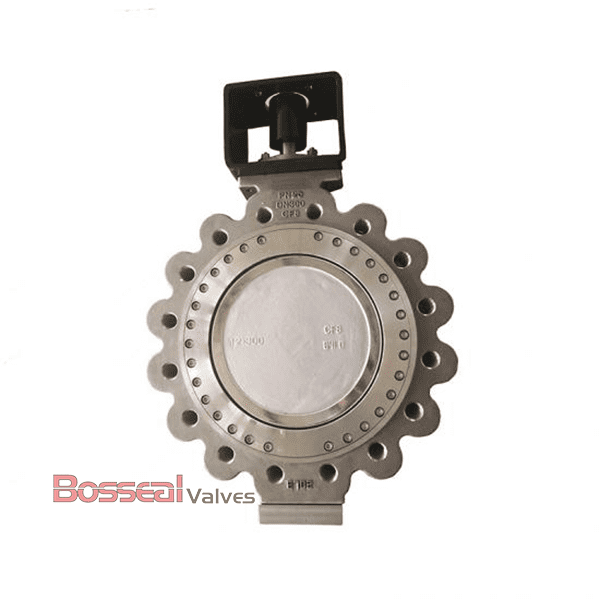

Stainless Steel CF8 Butterfly Valves, 300 LB, 16 IN, API 609
