Side Entry Trunnion Ball Valves, A105N, 48 IN, CL 2500, DBB
Model Number: 1811196
Key Specifications / Features
Our trunnion ball valves are built to BS 5351 and API 6D standards. Constructed from ASTM A105N carbon steel, these valves feature a 48-inch size (DN1050) with a robust 3-piece bolted body and a side-entry design. Equipped with soft seats and Double Block & Bleed (DBB) functionality, they ensure superior sealing and safety for reliable performance in high-pressure applications. Ideal for critical operations, our trunnion ball valves are engineered for durability and consistent operation in demanding environments. As a leading ball valve manufacturer from China, we deliver top-quality solutions.
Detail Information
Carbon Steel Ball Valve, API 6D, ASTM A105N, 48 Inch, 2500 LB, RTJ Flanged, Double Block & Bleed.
Design Standard: API 6D, BS 5351
Nominal Size: 48 Inch, DN1050
Nominal Class: CL 2500 LB, PN420
Body Material: Carbon Steel ASTM A105N or ASTM A350 LF2
Bore Type: Full Bore or Reduced Bore
Operation: Lever/Gear
Structure: 3pcs Body, Side Entry, Bolted Bonnet, Soft Seat
Seat Insert: RPTFE, DEVLON, NYLON, PEEK
Face to Face: ASME B16.10
Test and inspection: API 598, API 6D
End Connection: RTJ Flanged
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire-Safe Design, Anti-Blowout Stem, Emergency Sealant Injection, Low Emission (Optional), DIB (Optional).
Fire Safe Standards: API 607, API 6FA, ISO 10497
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: 150 - 2500 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C to +150°C
End Connection: Raised Face (RF), Ring-Type Joint (RTJ), Butt Weld (BW), Hub

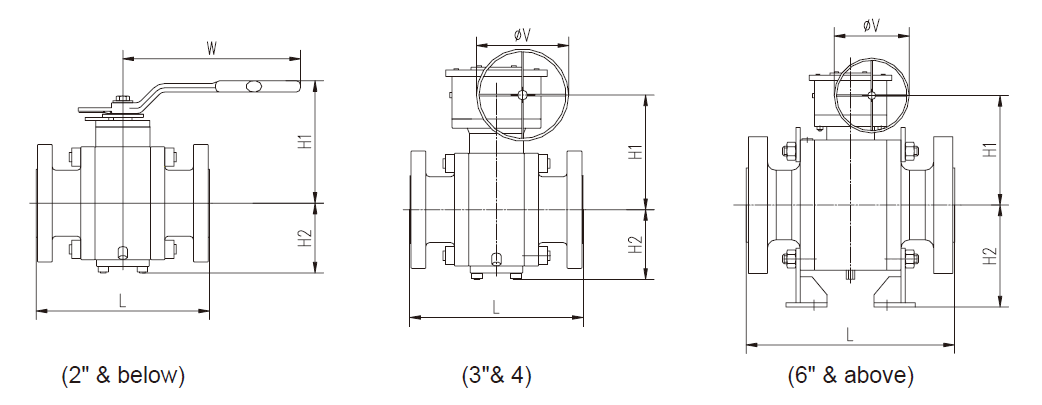

3pcs Forged Body Side Entry Ball Valve
Valve Description
1811196 Trunnion Mounted Ball ValveDesign Standard: API 6D, BS 5351
Nominal Size: 48 Inch, DN1050
Nominal Class: CL 2500 LB, PN420
Body Material: Carbon Steel ASTM A105N or ASTM A350 LF2
Bore Type: Full Bore or Reduced Bore
Operation: Lever/Gear
Structure: 3pcs Body, Side Entry, Bolted Bonnet, Soft Seat
Seat Insert: RPTFE, DEVLON, NYLON, PEEK
Face to Face: ASME B16.10
Test and inspection: API 598, API 6D
End Connection: RTJ Flanged
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire-Safe Design, Anti-Blowout Stem, Emergency Sealant Injection, Low Emission (Optional), DIB (Optional).
Fire Safe Standards: API 607, API 6FA, ISO 10497
Product Range
Body Material: Carbon Steel, Stainless Steel, Alloy SteelNormal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: 150 - 2500 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C to +150°C
End Connection: Raised Face (RF), Ring-Type Joint (RTJ), Butt Weld (BW), Hub

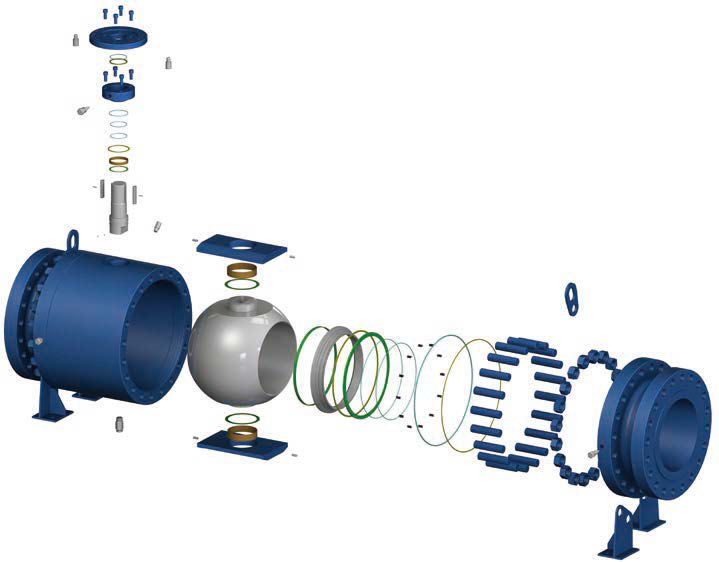

3pcs Forged Body Side Entry Ball Valve
