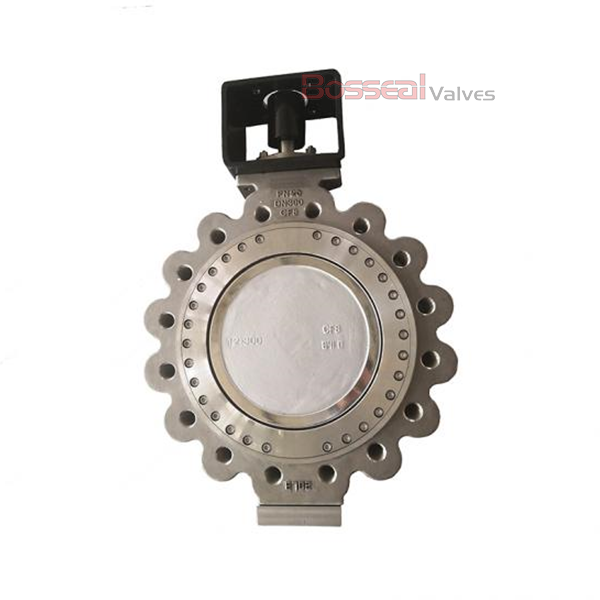

RPTFE Seated Butterfly Valve, ASTM A890 5A, 150 LB, 40 Inch
Model Number: 1862219
Key Specifications / Features
As a leading manufacturer of RPTFE-seated butterfly valves, we offer high-quality solutions designed to meet EN 593 and API 609 Category B standards. Our valves feature a robust ASTM A890 5A body, a 40-inch size, and a Class 150 LB rating. The double-offset design, coupled with a 17-4PH stem and lug ends, ensures reliable performance and durability. Engineered for precision and longevity, our butterfly valves provide exceptional sealing and control in various industrial applications.
Detail Information
High-Performance Butterfly Valve, 40 Inch, 150 LB, Soft Seat, Gear Operation.
Design Standard: EN 593, API 609 Category B
Structure: Double Offset, Double Eccentric
Nominal Size: 40 Inch
Nominal Class: Class 150 LB, PN16, PN16
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM A890 5A, ASTM A351 CF8, ASTM A890 4A, ASTM A351 CF8M, Titanium, ASTM A216 WCB, ASTM B148 C95800.
Seat: RPTFE, PPL
End Connection: Lug
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A890 4A, ASTM A890 5A, ASTM A351 CF8, ASTM A351 CF8M, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.
Normal Diameter: 1/2-48 Inch (DN15-DN1200)
Pressure Range: Class 150-300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
Valve Description
1862219 High-Performance Butterfly ValveDesign Standard: EN 593, API 609 Category B
Structure: Double Offset, Double Eccentric
Nominal Size: 40 Inch
Nominal Class: Class 150 LB, PN16, PN16
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM A890 5A, ASTM A351 CF8, ASTM A890 4A, ASTM A351 CF8M, Titanium, ASTM A216 WCB, ASTM B148 C95800.
Seat: RPTFE, PPL
End Connection: Lug
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A890 4A, ASTM A890 5A, ASTM A351 CF8, ASTM A351 CF8M, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, TitaniumNormal Diameter: 1/2-48 Inch (DN15-DN1200)
Pressure Range: Class 150-300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
