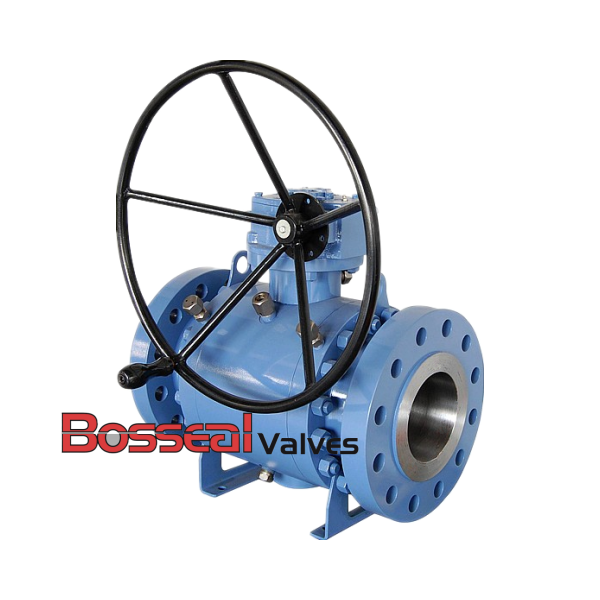

RF Trunnion Ball Valve, 8 Inch, 300 LB, ASTM A105N, A350 LF2

Name: RF Trunnion Ball Valve, 8 Inch, 300 LB, ASTM A105N, A350 LF2
Brand: www.bossealvalves.com
SKU: 1811097
Price: 0.01 USD
Availability: InStock
Rating: 4 (1 reviews)

Model Number: 1811097

Key Specifications / Features

For top-quality RF Trunnion Ball Valves, look no further. Our 8-inch, 300-lb valves, crafted with precision to meet DN200 and PN50 standards, boast a 3-piece construction. With a side entry design and bolted bonnet, they are manufactured with ASTM A105N and ASTM A350 LF2 materials, adhering strictly to API 6D and BS 5351 standards. Trust us for reliability and performance.

ASTM A105N Ball Valve API 6D Ball Valve ASTM A350 LF2 Ball Valve Class 300 LB Ball Valve 8 Inch Ball Valve

Contact Supplier

Detail Information

API 6D Trunnion Mounted Ball Valve, 3pcs body, Forged, Side Entry, Bolted Bonnet, 8 INCH, 300 LB, RF, RPTFE seat

Valve Description:
1811097 Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Structure: 3pcs body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 8 Inch
Nominal class: 300 LB
Bore Type: Full Bore or Reduced Bore
End Connection: RF Flanged
Operation: Gear
Body Material: ASTM A105N, ASTM A350 LF2
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Seat Insert: RPTFE
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission (Optional), DIB (Optional)

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -26℃ - +150℃
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
